6) Remove the cable connectors from the old lamp and apply them on the new lamp

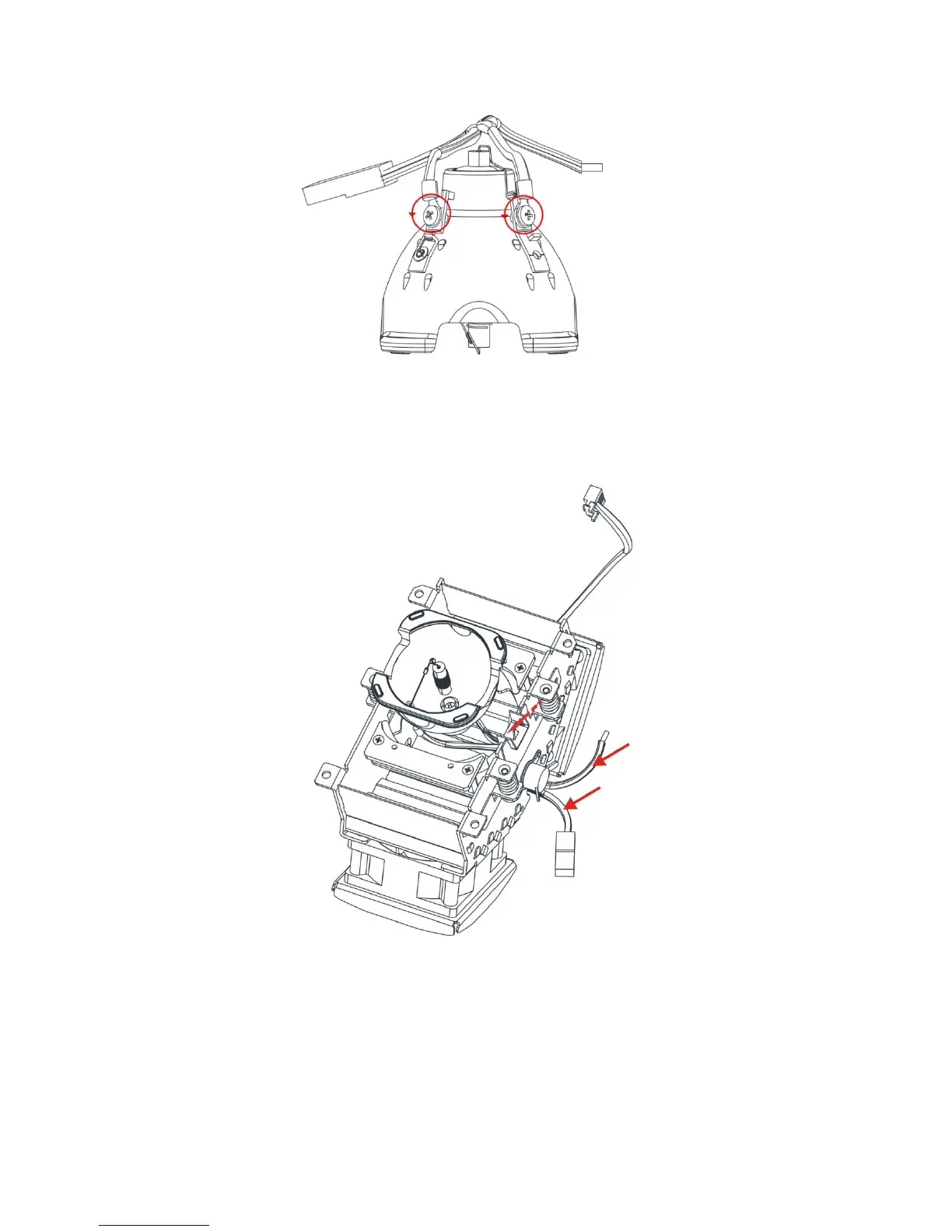

(picture 8).
PICTURE 8
7) Put in place the new lamp in the lamp support.
Place the lamp connectors on the fan air conveyor side (picture 9).
PICTURE 9
8) Lamp sub-assembly can now be re-installed, following backward all the above
listed steps.
