13- DISPLAY FUNCTIONS
Display
DISPLAY FLIP / STAND BY / CONTRAST
Display Flip:
Reverses display's reading depending on
the mounting position
(On the ground or suspended).
Display Standby:
To turn off the display (after 5 seconds)
or leave it always on.
Display Contrast:
Display contrast regulation (1-40)
Lamp
LAMP
Lamp always ON, always OFF,
lamp ON-OFF selectable via DMX
and lamp life time reset
ADJUST
To adjust the lamp with no mixer
connected.
It’s possible to set the parameters
for PAN-TILT and FOCUS
Reset
RESET
Reset via DMX ENABLED / DISABLED
And unit reset
Up-Down
Menu
Up-DownENTER
ENTER
ENTER
ENTER
Up-Down
Menu
Up-Down
Menu
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER

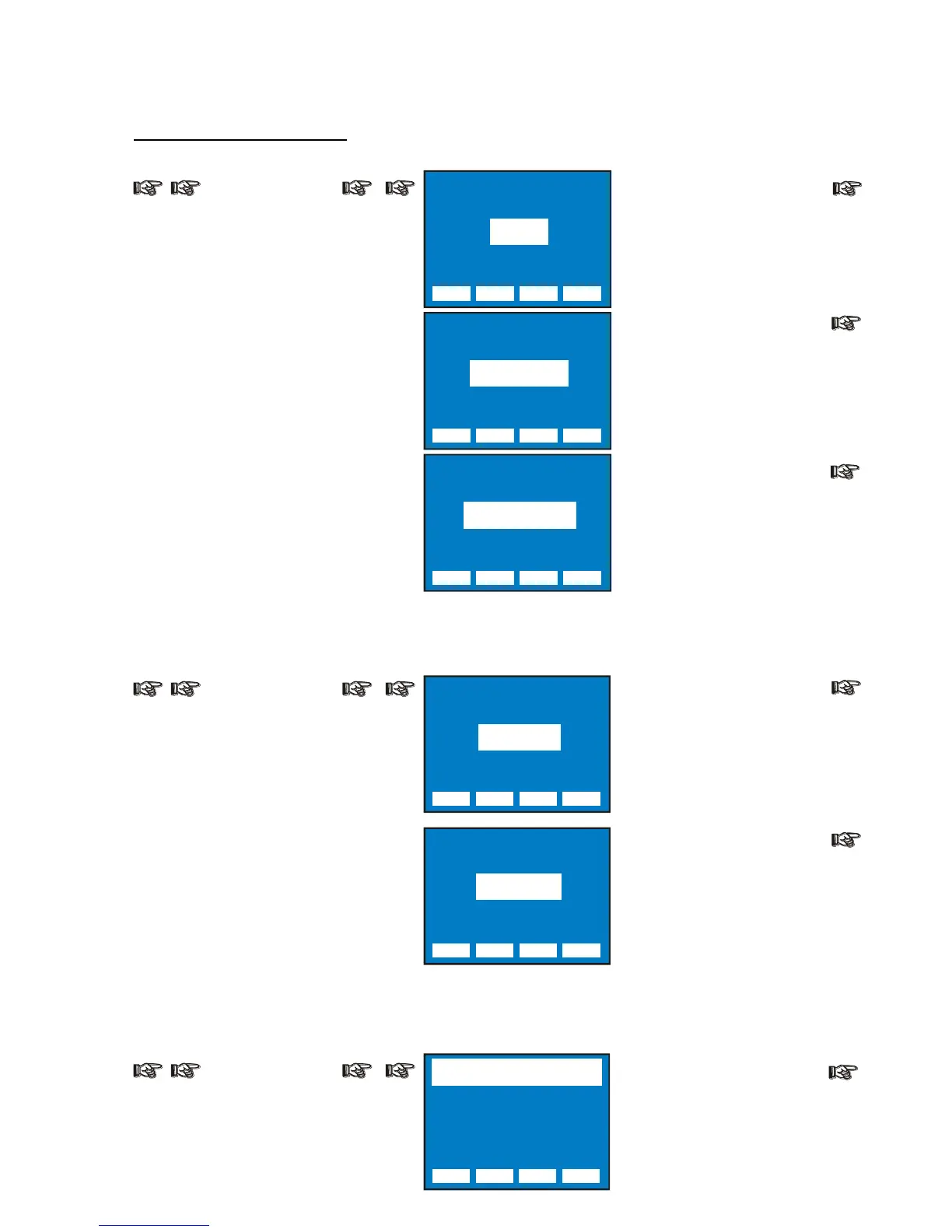

MENU ENTER DOWN UP
FLIP
FLIP
ON THE GROUND
DISPLAY
MENU ENTER DOWN UP
FLIP
STANDBY
OFF
DISPLAY
MENU ENTER DOWN UP
FLIP
CONTRAST
25
DISPLAY
Display Flip
ON THE GROUND (Default)
SUSPENDED
Display Standby
OFF = Display Standby
disabled (Default)
ON = Display goes OFF
after 5 seconds
Display Contrast
1-40 (Default = 30)
BY DMX = Lamp ON / OFF
via DMX (Default)
ALWAYS ON = Forced ON
ALWAYS OFF = Forced OFF
RESET COUNTER = Lamp
life time reset
LAMP ADJUST = To adjust
the lamp with no mixer
connected.
It’s possible to set the
parameters for PAN-TILT
and FOCUS
ENABLED = Reset via
DMX enabled (Default)
DISABLED = Reset via
DMX disabled
NOW = Unit motors reset
