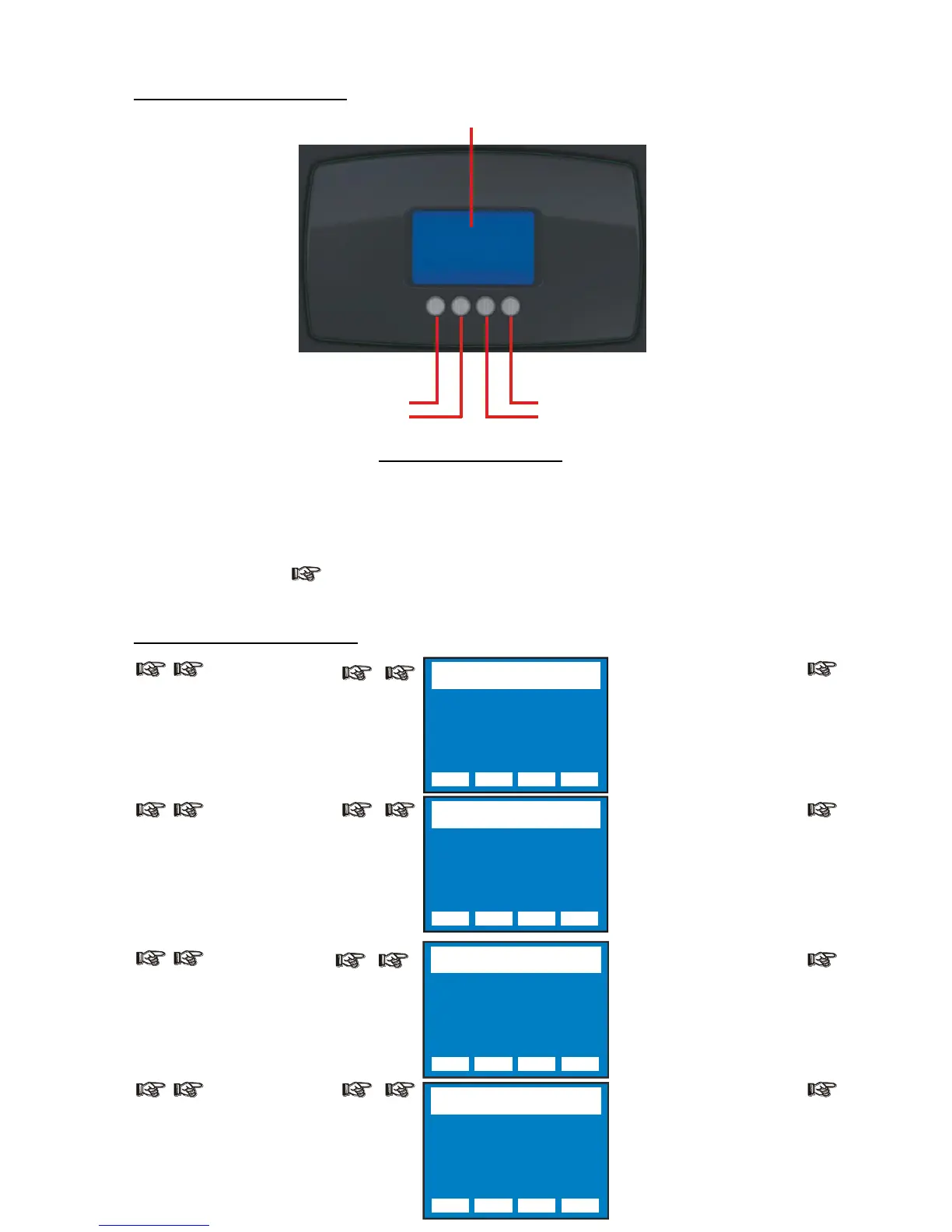

12- DISPLAY FUNCTIONS
DISPLAY FUNCTIONS
The WONDER S / WONDER D display panel shows all the available functions . Using
these functions, it is possible to change some of the parameters and add some
functions. Changing the D.T.S. setting can vary the functions of the unit so that it does
not respond to the DMX 512 used to control it. Carefully follow the instructions below
before carrying out any variations or selections.
NOTE: the symbol shows which key has to be pushed to obtain the desired
function.
Software Version: 10-11-11
Pan Direction
PAN DIRECTION
This menu allows to set
the Pan movement
Normal or Reverse
Tilt Direction
TILT DIRECTION
This menu allows to set
the Tilt movement
Normal or Reverse
Pan Speed
PAN SPEED
Pan Speed control (1-8)
Tilt Speed
TILT SPEED
Tilt Speed control (1-8)
Up-Down
Menu
Up-DownENTER
Up-Down
Menu
Up-Down
Menu
Up-DownENTER
Up-DownENTER
ENTER
ENTER
ENTER
Up-Down
Menu
Up-DownENTER
ENTER
Pan movement
Normal or Reverse
Default = Normal
Tilt movement
Normal or Reverse
Default = Normal
Pan Speed control
(1-8)
Default = 8 (Live Mode)
Tilt Speed control
(1-8)
Default = 8 (Live Mode)
MENU ENTER DOWN UP
8
LIVE-TOUR MODE
PAN SPEED
MENU ENTER DOWN UP
8
LIVE-TOUR MODE
TILT SPEED
