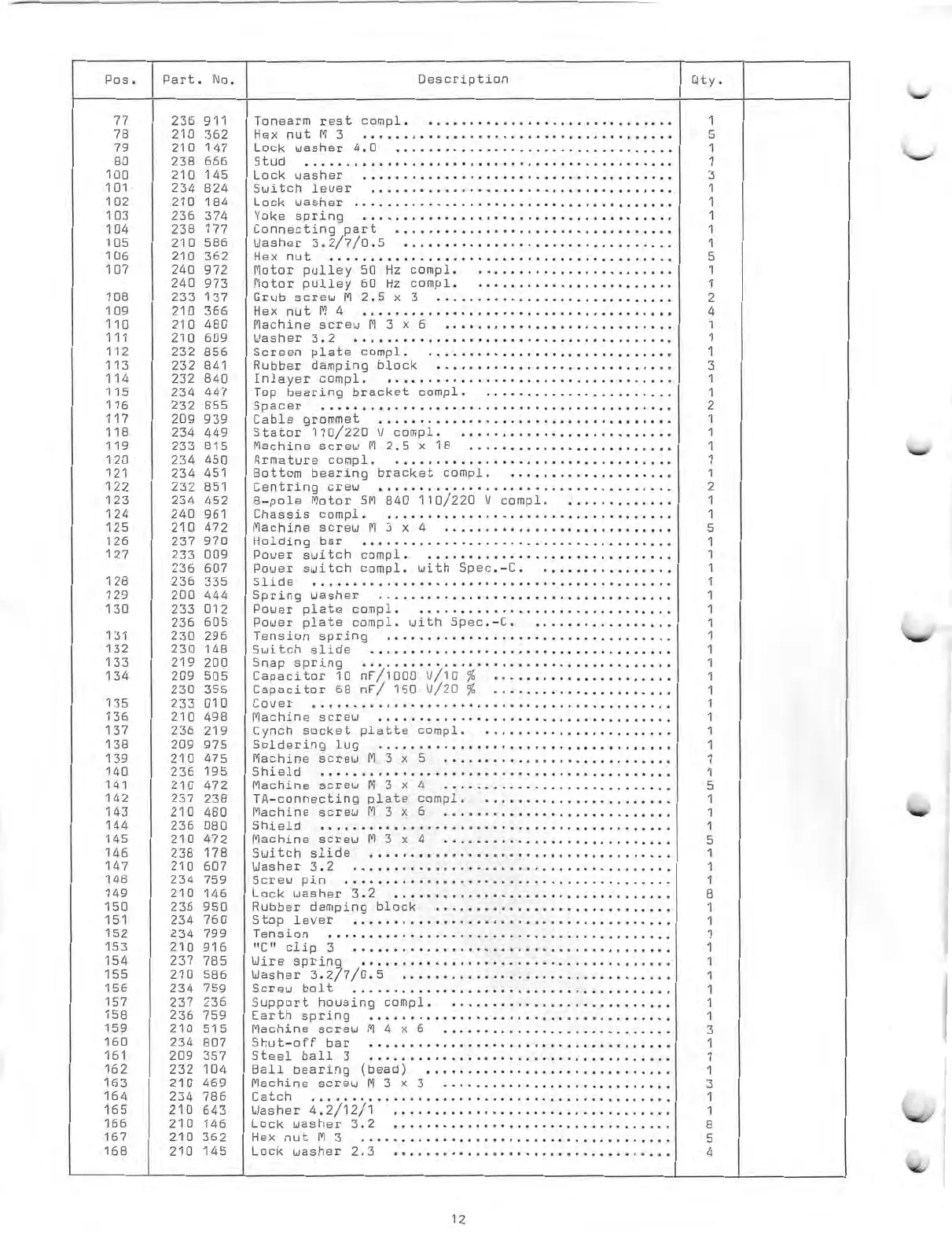

Dual 502 - Detailed Parts Identification

Pos.
Part.
No.
Description
Qty.
77 236 911 Tonearm rest
compl.
1
78
210
362 Hex nut M 3
5
79 210 147 Lock washer 4.0 1
80 238 666 Stud 1
100
210 145 Lock washer 3
101
234 824 Switch lever 1
102 210 184 Lock washer 1
103 236 374 Yoke spring 1
104 238 177 Connecting part 1
105
210 586 Washer 3.2/7/0.5 1
106
210 362 Hex nut 5
107 240 972 Motor pulley 50 Hz compl.
1
240 973
Motor pulley
60 Hz
compl
1
108
233 137 Grub screw M 2.5 x 3
2
109 210 366 Hex nut M 4 4
110
210 480 Machine
screw M 3 x 6
1
111
210 609 Washer 3.2
1
112
232 856 Screen
plate compl. 1
113
232 841
Rubber damping block
3
114
232 840 Inlayer compl. 1
115
234 447
Top bearing bracket compl 1
116
232 855 Spacer 2
117
209 939 Gable grommet
1
118
234 449
Stator 110/220 V compl 1
119
233 815
Machine screw M 2.5 x 18 1
120
234 450 Armature
compl 1
121
234
451 Bottom bearing bracket
compl.
1
122 232 851
Centring crew
2
123
234 452
8 -pole Motor SM 840
110/220 V compl
1
124
240 961 Chassis compl. 1
125 210 472 Machine screw M 3 x 4 5
126 237 970 Holding bar
1
127 233 009 Power switch compl. 1
236 607 Power
switch compl. with Spec.-C.
1
128
236 335 Silbe 1
129
200 444 Spring washer 1
130
233 012 Power plate compl
1
236 605
Power plate compl. with
Spec.-C.
1
131
230 296 Tension spring 1
132
230 148 Switch slide
1
133 219 200 Snap spring
1
134
209 505
Capacitor 10 nF/1000 V/10
%
1
230
355 Capacitor 68 nF/ 150 V/20 %
1
135
233 010 Cover
1
136
210 498 Machine screw
1
137
236 219 Cynch
socket platte compl
1
138
209 975 Soldering lug 1
139
210 475 Machine screw M 3 x
5
1
140 236
195 Shield
1
141
210 472 Machine
screw M 3 x 4
5
142
237 238
TA-connecting plate
compl
1
143
210
480 Machine screw M 3 x 6
1
144 236 080 Shield
1
145
210 472 Machine screw M 3 x 4
5
146 238 178 Switch slide
1
147 210 607
Washer 3.2 1
148
234 759 Screw pin
1
149 210 146 Lock
washer 3.2
8
150
236 950 Rubber damping block
1
151
234 760 Stop lever
1
152
234 799
Tension
1
153
210 916 "C"
clip 3
1
154 237
785 Wire spring
1
155
210 586 Washer
3.2/7/0.5
1
156
234
759 Screw bolt
1
157
237 236 Support housing compl.
1
158
236 759 Earth spring
1
159 210 515
Machine screw M 4 x 6
3
160
234 807
Shut-off bar
1
161
209 357
Steel ball 3
1
162
232 104 Ball bearing (bead)
1
163
210 469 Machine screw M 3 x 3 3
164
234 786 Catch
1
165
210 643 Washer 4.2/12/1
1
166
210 146 Lock washer
3.2
8
167
210 362 Hex nut M 3 5
168
210 145 Lock
washer 2.3
4
