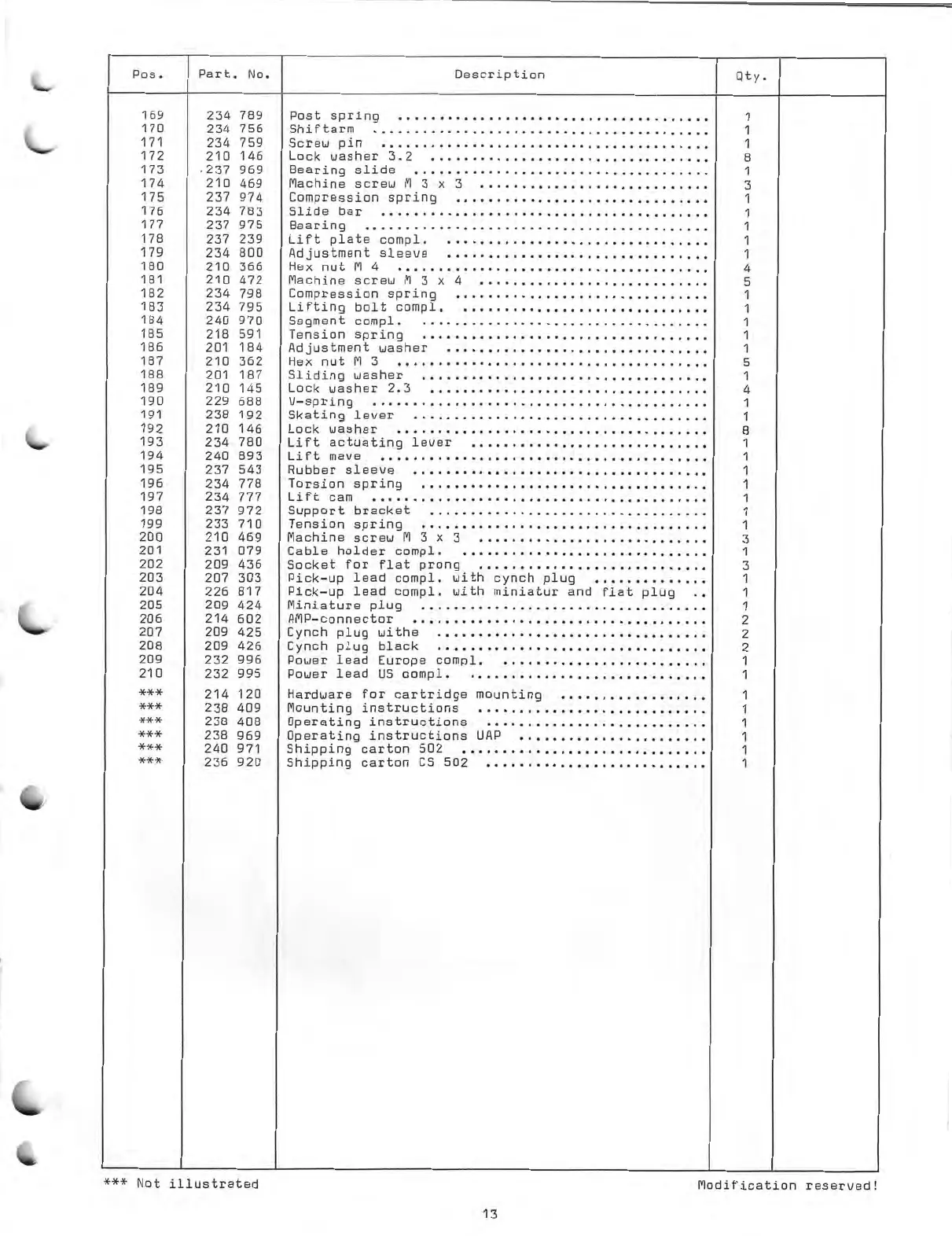

Dual 502 - Component Breakdown and Quantities

Pos.
Part.
No. Description
Qty.
169 234 789 Post spring
1
170
234 756 Shiftarm
1
171
234 759 Screw pin
1
172 210 146
Lock washer 3.2
8
173 .237
969 Bearing slide
1
174
210 469 Machine screw M 3 x 3
3
175 237 974
Compression spring
1
176
234 783 Slide bar
1
177 237 975
Bearing
1
178
237 239 Lift plate compl.
1
179
234 800 Adjustment sleeve
1
180
210 366 Hex nut M 4
4
181
210 472 Machine screw M 3 x 4
5
182
234 798
Compression spring
1
183
234 795 Lifting bolt
compl.
1
184
240 970 Segment
compl.
1
185
218 591
Tension spring
1
186
201 164 Adjustment washer
1
187
210 362 Hex
nut M 3
5
188
201 187 Sliding washer
1
189
210 145 Lock
washer 2.3
4
190 229 688
V —spring
1
191
238 192 Skating lever
1
192
210 146 Lock washer
a
193
234 760 Lift actuating layer
1
194 240 893
Lift mave
1
195 237 543 Rubber sleeve
1
196
234 778 Torsion spring
1
197
234 777 Lift cam
1
198
237 972 Support bracket
1
199
233 710 Tension spring
1
200
210 469 Machine screw M 3 x 3
3
201
231 079 Cable holder compl.
1
202 209 436 Socket for flat prang
3
203 207 303 Pick —up lead compl. with cynch plug
1
204
226 817 Pick —up lead compl. with
miniatur and flat plug ..
1
205 209 424 Miniature
plug
1
206
214 602 AMP—connector
2
207 209 425
Cynch plug withe
2
208
209 426 Cynch plug black
2
209
232 996 Power lead Europe compl.
1
210
232 995 Power lead US oompl.
1
***
214 120 Hardware for cartridge
mounting
1
***
238 409 Mounting instructions
1
***
238 408 Operating instructions
1
***
238
969 Operating instructions
UP
1
***
240 971 Shipping carton 502
1
***
236 920 Shipping carton
ES
502
1
