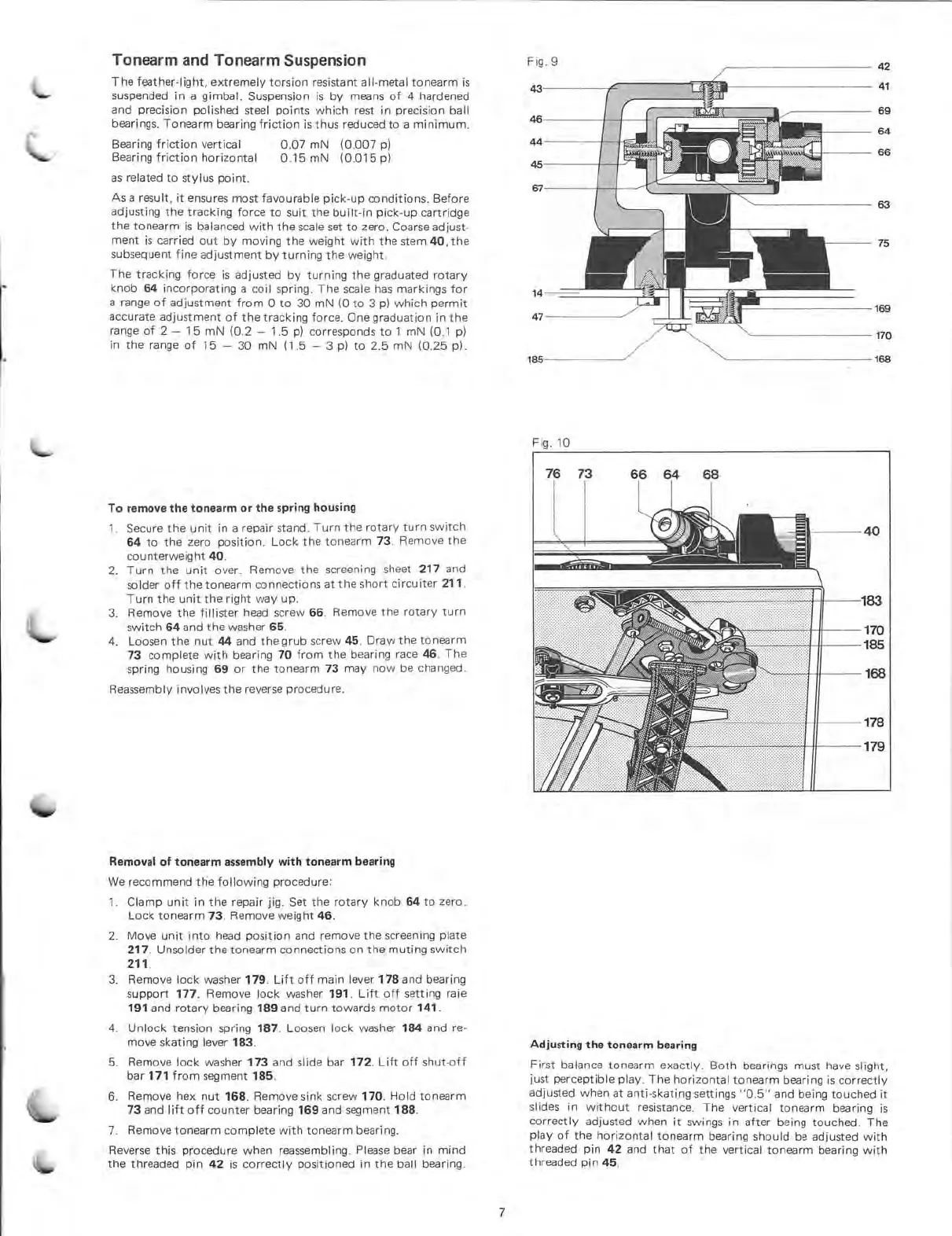

Page #7 background imageLoading...
Page #7 background image
Tonearm
and
Tonearm
Suspension
The
feather-light,
extremely
torsion
resistant
all-metal
tonearm
is
suspended
in
a
gimbal.
Suspension
is
by
means
of
4
hardened
and
precision
polished
steel
points
which
rest
in
precision
ball
bearings.
Tonearm
bearing
friction
is
thus
reduced
to
a
minimum.
Bearing
friction
vertical
0.07
mN
(0.007
p)
Bearing
friction
horizontal
0.15
mN
(0.015
P)
as
related
to
stylus
point.
As
a
result,
it
ensures
most
favourable
pick
-up
conditions.
Before
adjusting
the
tracking
force
to
suit
the
built-in
pick
-up
cartridge
the
tonearm
is
balanced
with
the
scale
set
to
zero.
Coarse
adjust-
ment
is
carried
out
by
moving
the
weight
with
the
stem
40,
the
subsequent
fine
adjustment
by
turning
the
weight.
The
tracking
force
is
adjusted
by
turning
the
graduated
rotary
knob
64
incorporating
a
coil
spring.
The
scale
has
markings
for
a
range
of
adjustment
from
0
to
30
mN
(0
to
3
p)
which
permit
accurate
adjustment
of
the
tracking
force.
One
graduation
in
the
range
of
2
-
15
mN
(0.2
-
1.5
p)
corresponds
to
1
mN
(0.1
p)
in
the
range
of
15
-
30
mN
(1.5
-3
p)
to
2.5
mN
(0.25
p).
To
remove
the
tonearm
or
the
spring
housing
1.
Secure
the
unit
in
a
repair
stand.
Turn
the
rotary
turn
switch
64
to
the
zero
position.
Lock
the
tonearm
73.
Remove
the
counterweight
40.
2.
Turn
the
unit
over.
Remove
the
screening
sheet
217
and
solder
off
the
tonearm
connections
at
the
short
circuiter
211.
Turn
the
unit
the
right
way
up.
3.
Remove
the
fillister
head
screw
66.
Remove
the
rotary
turn
switch
64
and
the
washer
65.
4.
Loosen
the
nut
44
and
the
grub
screw
45.
Draw
the
tonearm
73
complete
with
bearing
70
from
the
bearing
race
46.
The
spring
housing
69
or
the
tonearm
73
may
now
be
changed.
Reassembly
involves
the
reverse
procedure.
Removal
of
tonearm
assembly
with
tonearm
bearing
We
recommend
the
following
procedure:
1.
Clamp
unit
in
the
repair
jig.
Set
the
rotary
knob
64
to
zero.
Lock
tonearm
73.
Remove
weight
46.
2.
Move
unit
into
head
position
and
remove
the
screening
plate
217.
Unsolder
the
tonearm
connections
on
the
muting
switch
211.
3.
Remove
lock
washer
179.
Lift
off
main
lever
178
and
bearing
support
177.
Remove
lock
washer
191.
Lift
off
setting
raie
191
and
rotary
bearing
189
and
turn
towards
motor
141.
4.
Unlock
tension
spring
187.
Loosen
lock
washer
184
and
re-
move
skating
lever
183.
5.
Remove
lock
washer
173
and
slide
bar
172.
Lift
off
shut-off
bar
171
from
segment
185.
6.
Remove
hex
nut
168.
Remove
sink
screw
170.
Hold
tonearm
73
and
lift
off
counter
bearing
169
and
segment
188.
7.
Remove
tonearm
complete
with
tonearm
bearing.
Reverse
this
procedure
when
reassembling.
Please
bear
in
mind
the
threaded
pin
42
is
correctly
positioned
in
the
ball
bearing.
Fig.
10
Adjusting
the
tonearm
bearing
First
balance
tonearm
exactly.
Both
bearings
must
have
slight,
just
perceptible
play.
The
horizontal
tonearm
bearing
is
correctly
adjusted
when
at
anti-skating
settings
"0.5"
and
being
touched
it
slides
in
without
resistance.
The
vertical
tonearm
bearing
is
correctly
adjusted
when
it
swings
in
after
being
touched.
The
play
of
the
horizontal
tonearm
bearing
should
be
adjusted
with
threaded
pin
42
and
that
of
the
vertical
tonearm
bearing
with
threaded
pin
45.
7
