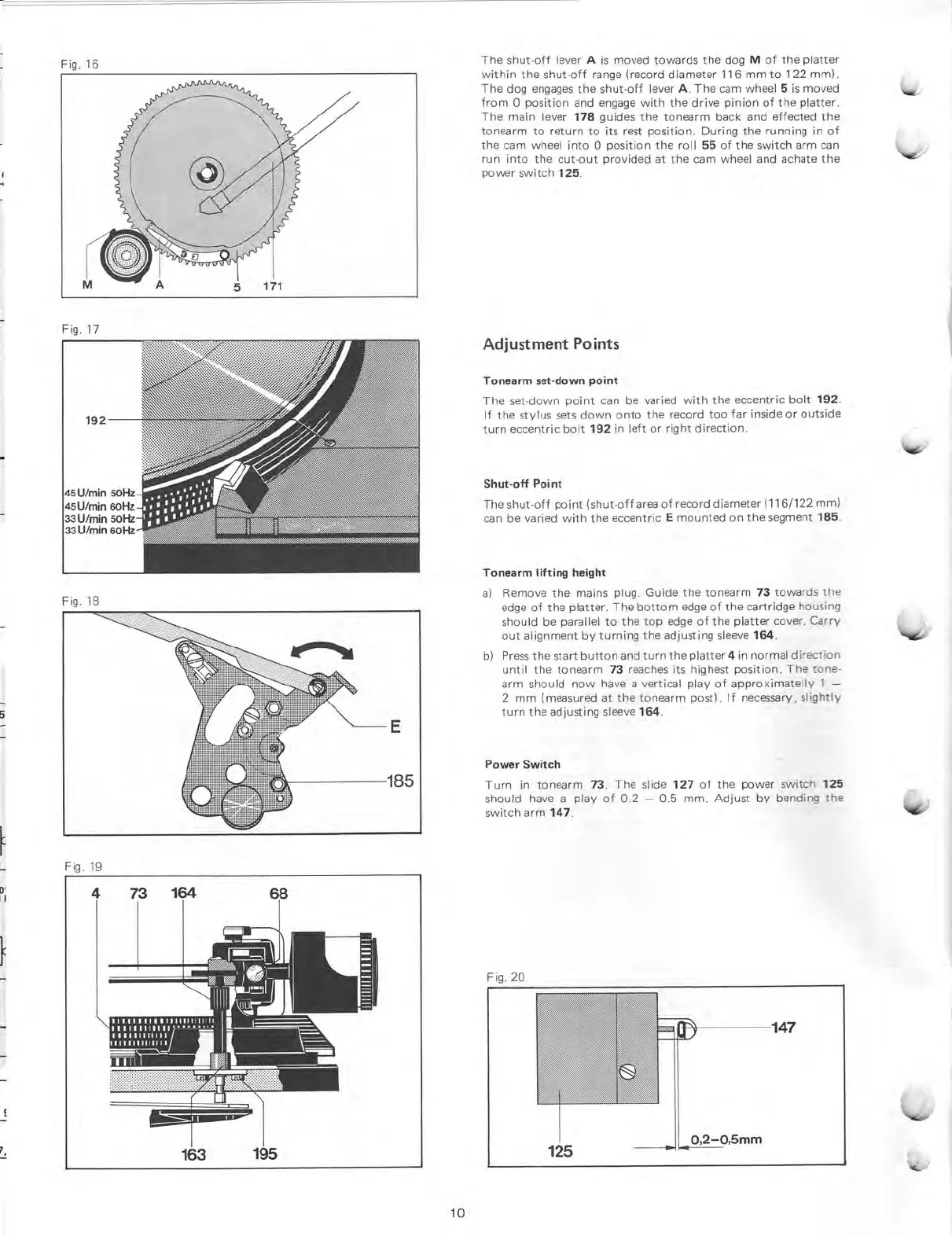

Dual CS 626 Service Manual

Fig.
16
Fig. 17
45 U/min
50Hz
45U/min sollz
33 U/min 50Hz
33
Wmin
60Hz
Fig. 18
Fig. 19
73
164
111 1 1 1 111 1 1111111 111 , 1 1
1 1 1 1 111 11111" ... -
111111111111 11 /
1111111
68
163
195
IMLIOM
The shut-off lever A is moved
towards the dog M of the platter
within the shut-off range (record
diameter 116 mm to 122 mm).
The dog
engages the shut-off lever A. The cam wheel 5 is
moved
from 0 position and engage with the drive
pinion of the platter.
The main lever 178 guides the tonearm back and effected the
tonearm to return to its rest
position. During the running in of
the cam wheel into 0 position the roll 55 of the switch arm can
run into the cut-out provided at the cam wheel and achate the
povver switch
125.
Adjustment
Points
Tonearm
set-down point
The
set-down point
can be varied
with the
eccentric bolt
192.
If the stylus
sets down
onto the
record too far
inside or
outside
turn
eccentric
bolt 192 in left
or right
direction.
Shut-off Point
The shut-off
point
(shut-off area of record
diameter
(116/122 mm)
can be varied
with the
eccentric E mounted
on the
segment 185.
Tonearm lifting height
a) Remove the
mains plug.
Guide the tonearm
73 towards
the
edge
of the platter. The
bottom edge of
the cartridge
housing
should be parallel to
the top edge of
the platter cover.
Carry
out alignment by turning the
adjust ing sleeve 164.
b) Press the start
button and turn the
platter 4 in normal
direction
until the
tonearm 73 reaches its
highest position. The tone -
arm should now have
a vertical play of
approximatelly 1 —
2 mm (measured at the
tonearm post). If necessary,
slightly
turn the adjusting sleeve 164.
Power Switch
Turn in
tonearm 73. The slide
127 of the power
switch 125
should have a play
of 0.2 — 0.5 mm. Adjust
by bending the
switch arm 147.
Fig.
20
10
