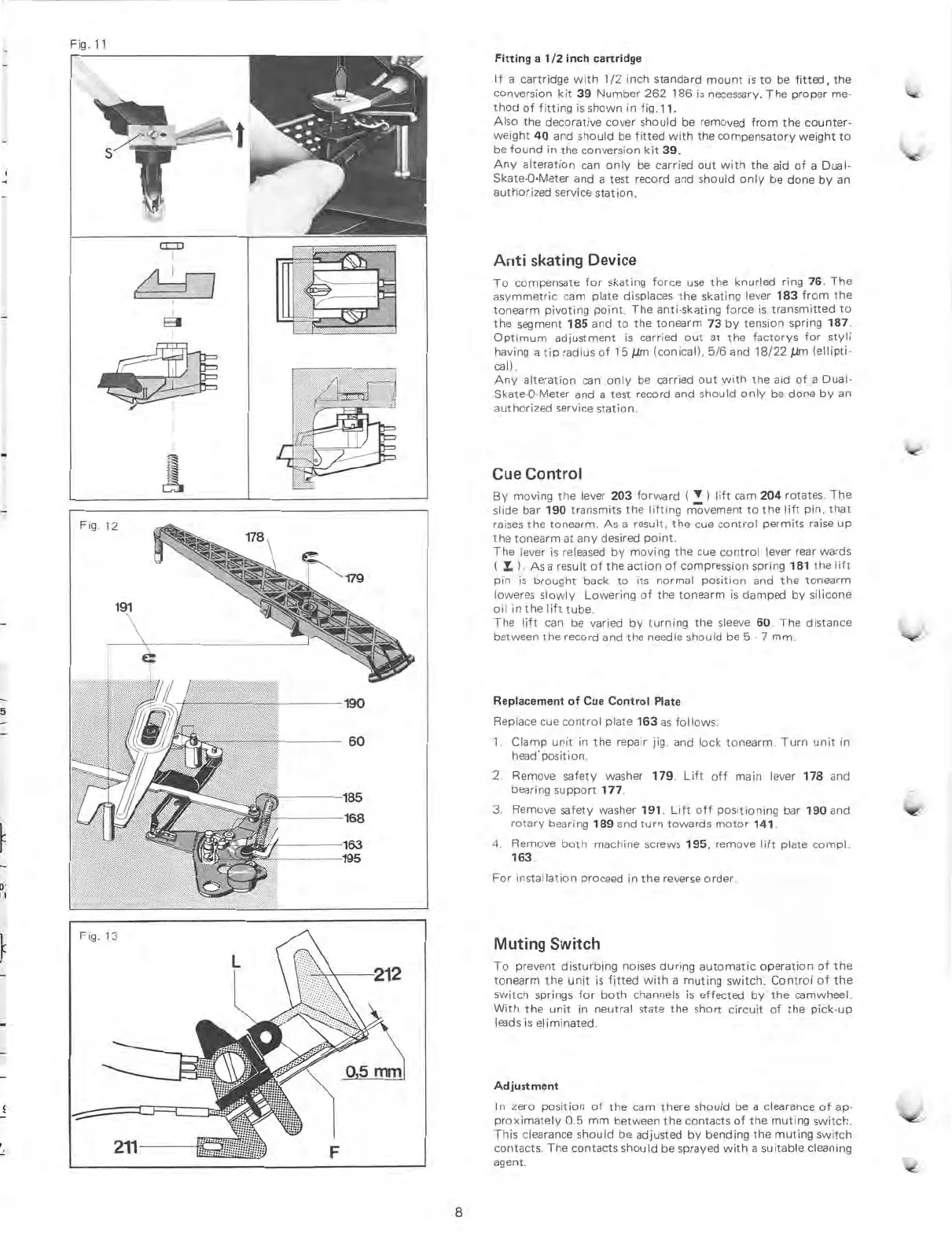

Fig.
11
Fitting
a
1/2
inch
cartridge
If
a
cartridge
with
1/2
inch
standard
mount
is
to
be
fitted,
the
conversion
kit
39
Number
262
186
is
necessary.
The
proper
me-
thod
of
fitting
is
shovvn
in
fig.11.
Also
the
decorative
cover
should
be
removed
from
the
counter-
weight
40
and
should
be
fitted
with
the
compensatory
weight
to
be
found
in
the
conversion
kit
39.
Any
alteration
can
only
be
carried
out
with
the
aid
of
a
Dual-
Skate-O.Meter
and
a
test
record
and
should
only
be
done
by
an
authorized
service
station.
Anti
skating
Device
To
compensate
for
skating
force
use
the
knurled
ring
76.
The
asymmetric
cam
plate
displaces
the
skating
lever
183
from
the
tonearm
pivoting
point.
The
anti-skating
force
is
transmitted
to
the
segment
185
and
to
the
tonearm
73
by
tension
spring
187.
Optimum
adjustment
is
carried
out
at
the
factorys
for
styli
having
a
tip
radius
of
15
prn
(conical),
5/6
and
18/22
pm
(ellipti-
cal).
Any
alteration
can
only
be
carried
out
with
the
aid
of
a
Dual
-
Skate
-O
-Meter
and
a
test
record
and
should
only
be
done
by
an
authorized
service
station.
Cue
Control
By
moving
the
lever
203
forvvard
(
V1
lift
cam
204
rotates.
The
slide
bar
190
transmits
the
lifting
m
ovement
to
the
lift
pin,
that
raises
the
tonearm.
As
a
result,
the
cue
control
permits
raise
up
the
tonearm
at
any
desired
point.
The
lever
is
released
by
moving
the
cue
control
lever
rear
wards
(
I/.
As
a
result
of
the
action
of
compression
spring
181
the
lift
pin
is
brought
back
to
its
normal
position
and
the
tonearm
lovveres
slovvly
Lovvering
of
the
tonearm
is
damped
by
silicone
oi
l
in
the
lift
tube.
The
lift
can
be
varied
by
turning
the
sleeve
60.
The
distance
between
the
record
and
the
needle
should
be
5.
7
mm.
Replacement
of
Cue
Control
Plate
Replace
cue
control
plate
163
as
follows:
1
Clamp
unit
in
the
repair
jig.
and
lock
tonearm.
Turn
unit
in
heacr
position.
2
Remove
safety
washer
179.
Lift
off
main
lever
178
and
bearing
support
177.
3
Remove
safety
washer
191.
Lift
off
positioning
bar
190
and
rotary
bearing
189
and
turn
towards
motor
141.
4
Remove
both
machine
screws
195,
remove
lift
plate
compl.
163.
For
instal
lation
proceed
in
the
reverse
order.
Mut
ing
Switch
To
prevent
disturbing
noises
during
automatic
operation
of
the
tonearm
the
unit
is
fitted
with
a
muting
switch.
Control
of
the
switch
springs
for
both
channels
is
effected
by
the
camvvheel.
With
the
unit
in
neutral
state
the
short
circuit
of
the
pick
-up
leads
is
eliminated.
Adjustment
In
zero
position
of
the
cam
there
should
be
a
clearance
of
ap-
proximately
0.5
mm
between
the
contacts
of
the
muting
switch.
This
clearance
should
be
adjusted
by
bending
the
muting
switch
contacts.
The
contacts
should
be
sprayed
with
a
suitable
cleaning
agent.
8
