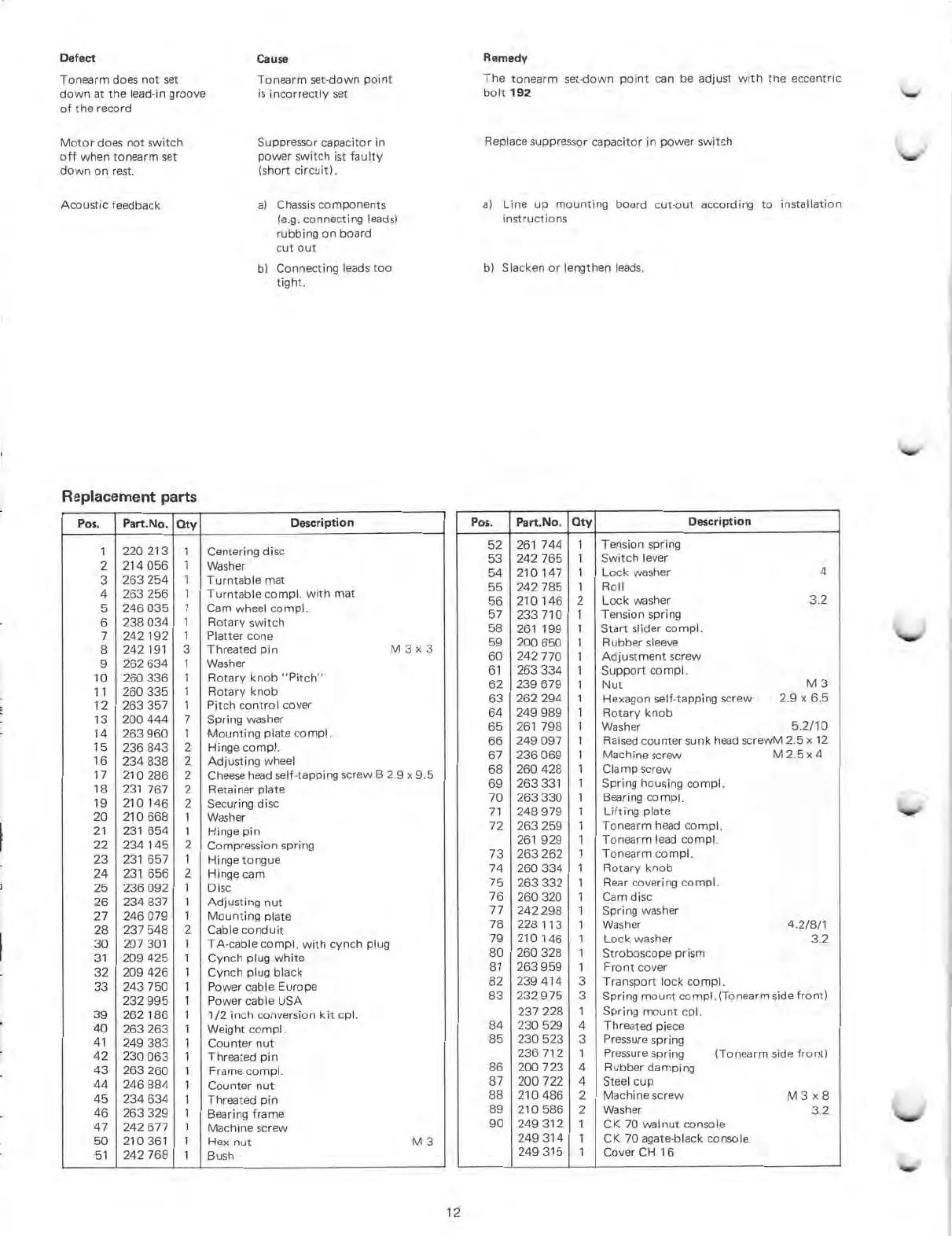

Dual CS 626 Service Manual

Defect
Cause
Remedy
Tonearm does not set
down at the lead-in groove
of
the record
Motor does not
switch
oft when
tonearm set
down on rest.
Acoustic feedback
Replacement parts
Tonearm
set-down point
is
incorrectly set
Suppressor
capacitor in
power switch ist faulty
(short
circuit).
a)
Chassis
components
(e.g. connecting leads)
rubbing on board
cut out
The tonearm
set-down point can be adjust
with
the eccentric
bolt 192
Replace suppressor capacitor in power switch
a) Line up mounting board cut-out
according to installation
instructions
b)
Connecting
leads too b)
Slacken or
lengthen leads.
tight.
Pos. Part.No. Qty
Description
1 220 213 1
Centering disc
2 214 056 1 Washer
3 263 254 1
Turntable mat
4 263 256
1 Turntable
compl. with
mat
5 246 035 1 Cam
wheel compl.
6 238 034 1 Rotary
switch
7 242 192
1 Platter cone
8 242 191 3 Threated pin
M 3 x 3
9
262 634 1 Washer
10 260 336 1
Rotary knob "Pitch"
11 260 335 1
Rotary knob
12 263 357 1 Pitch control cover
13 200 444 7 Spring vvasher
14 263 960 1
Mounting plate compl.
15 236 843
2 Hinge compl.
16 234 838
2 Adjusting wheel
17 210 286 2
Cheese head
self-tapping
screw B 2.9 x 9.5
18 231 767 2
Retainer plate
19 210 146
2 Securing disc
20 210 668
1 Washer
21 231 654
1 Hinge pin
22 234 145 2 Compression spring
23 231 657 1 Hinge tongue
24 231
656 2 Hinge cam
25 236 092 1 Disc
26 234 837 1 Adjusting nut
27 246 079 1
Mounting plate
28 237 548
2 Cable conduit
30 207 301 1 TA-cable compl. with cynch plug
31 209 425 1 Cynch plug vvhite
32 209 426
1 Cynch plug black
33 243 750 1
Power cable Europe
232 995 1 Power cable
USA
39 262 186 1
1/2
inch
conversion kit cpl.
40 263 263 1
Weight compl.
41
249 383 1
Counter nut
42
230 063 1
Threated
pin
43 263 260
1 Frame
compl.
44
246 884 1
Counter nut
45 234
634 1
Threated pin
46
263 329
1
Bearing frame
47 242 677
1 Machine
screw
50 210
361 1 Hex
nut
M3
51 242 768
1 Bush
Pos. Part.No. Qty
Description
52 261 744
1 Tension spring
53
242 765 1 Switch
lever
54
210 147 1 Lock
vvasher
4
55 242
785 1 Roll
56 210 146
2 Lock washer
3.2
57 233
710 1 Tension spring
58 261 199 1
Start slider compl.
59 200 650 1
Rubber sleeve
60
242 770 1 Adjustment screw
61 263 334 1
Support compl.
62 239 679 1
Nut
M3
63
262 294 1 Hexagon
self-tapping screw 2.9 x
6.5
64 249
989 1 Rotary knob
65
261 798 1 Washer
5.2/10
66 249
097 1 Raised counter sunk
head screwM 2.5 x 12
67 236
069 1
Machine screw
M 2.5 x 4
68 260
428 1 Clamp screw
69 263 331 1 Spring
housing compl.
70
263 330 1 Bearing compl.
71 248 979 1 Lifting plate
72 263 259 1 Tonearm head compl.
261 929 1 Tonearm lead compl.
73 263 262 1 Tonearm compl.
74 260 334 1 Rotary knob
75
263 332 1 Rear covering compl.
76 260 320 1 Cam disc
77 242 298
1 Spring washer
78 228
113 1 Washer
4.2/8/1
79 210 146 1 Lock washer 3.2
80 260 328 1 Stroboscope
prism
81 263 959 1 Front cover
82 239 414 3 Transport lock compl.
83 232 975 3 Spring mount compl. (Tonearm side front)
237
228 1
Spring
mount cpl.
84 230 529 4
Threated piece
85
230 523 3
Pressure spring
236 712 1
Pressure spring (Tonearm side
front)
86 200 723 4
Rubber
damping
87
200 722 4
Steel cup
88
210 486 2
Machine screw M
3 x 8
89
210 586
2
Washer 3.2
90 249
312 1 CK
70 walnut
console
249 314 1
CK 70
agate-black
console
249 315
1
Cover CH 16
12
