Dual XML8110 User Manual

3
FUSE
Whenreplacingthefuse,
makesurenewfuseisthe
correcttypeandamperage.
Usinganincorrectfuse
coulddamagetheradio.
TheXML8110usesone
10ampATMfuselocated
besidethewiringconnector.

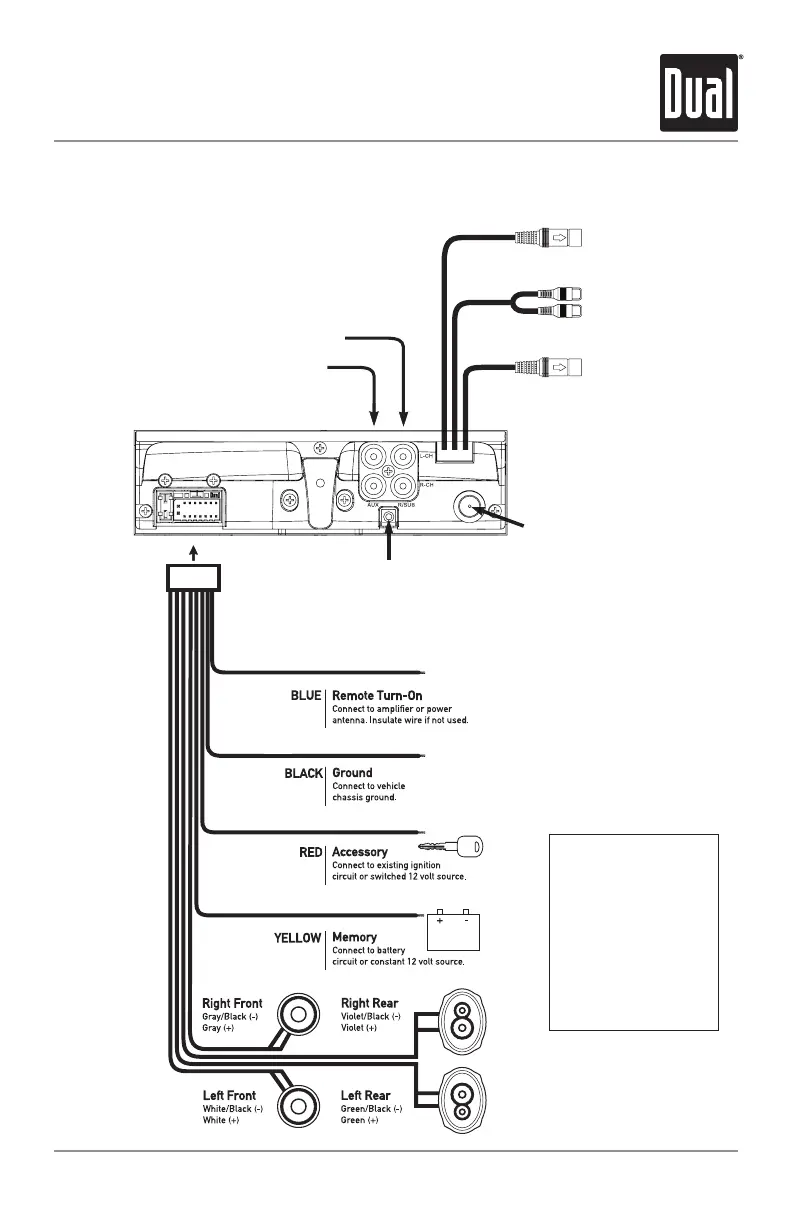

XML8110 INSTALLATION
Wiring Diagram
Antenna
Connector
REAR/SUB Preamp Output
(selectable)
RCA Preamp Connections
FRONT RCA Preamp Output
Steering Wheel Interface Input
(PAC SWI-PS required)
BLACK 8-pin Female Mini-DIN
BTM60 Connection (sold separately)
RCA Auxiliary Input
iplug™ Connection
GREEN 8-pin Male Mini-DIN
External Accessory Connection
