3.2. Assembly specifications
Installation areas on the rails of the mounting system [10]

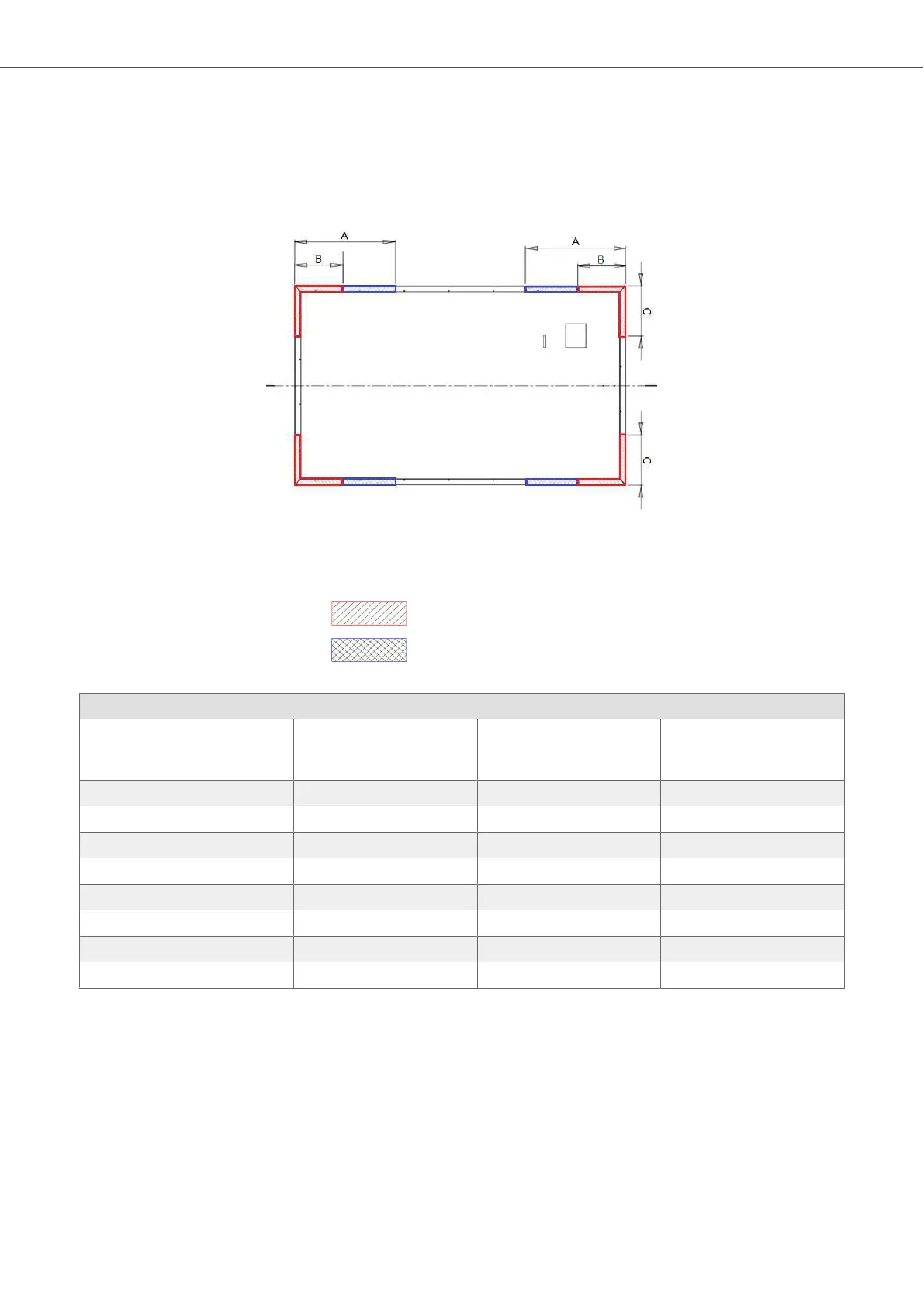

3.2.1. Installation areas on the rails of the mounting system
Fixing zones on the installation system
Up to 2400 Pa
Up to 5400 Pa
Dimensions of fixing zones (mm)
Module reference A
-2400 / +2400 Pa
B
-2400 / +5400 Pa
C
-2400 / +2400 Pa
xxxM-60-0BBP 430 230 250
xxxM-60-00 400 200 250
xxxM-72-00 500 250 250
xxxM-120-00 430 230 250
DSxxxM2-60BB-02 400 200 250
DSxxxM6-120SW-01 475 250 260
DSxxxG1-360SBB5 430 230 285
DSxxxM6-144BB-01 500 275 260
Installation, use, maintenance manual DualSun FLASH
