3.2 Mounting specificities of DualSun Flash panel

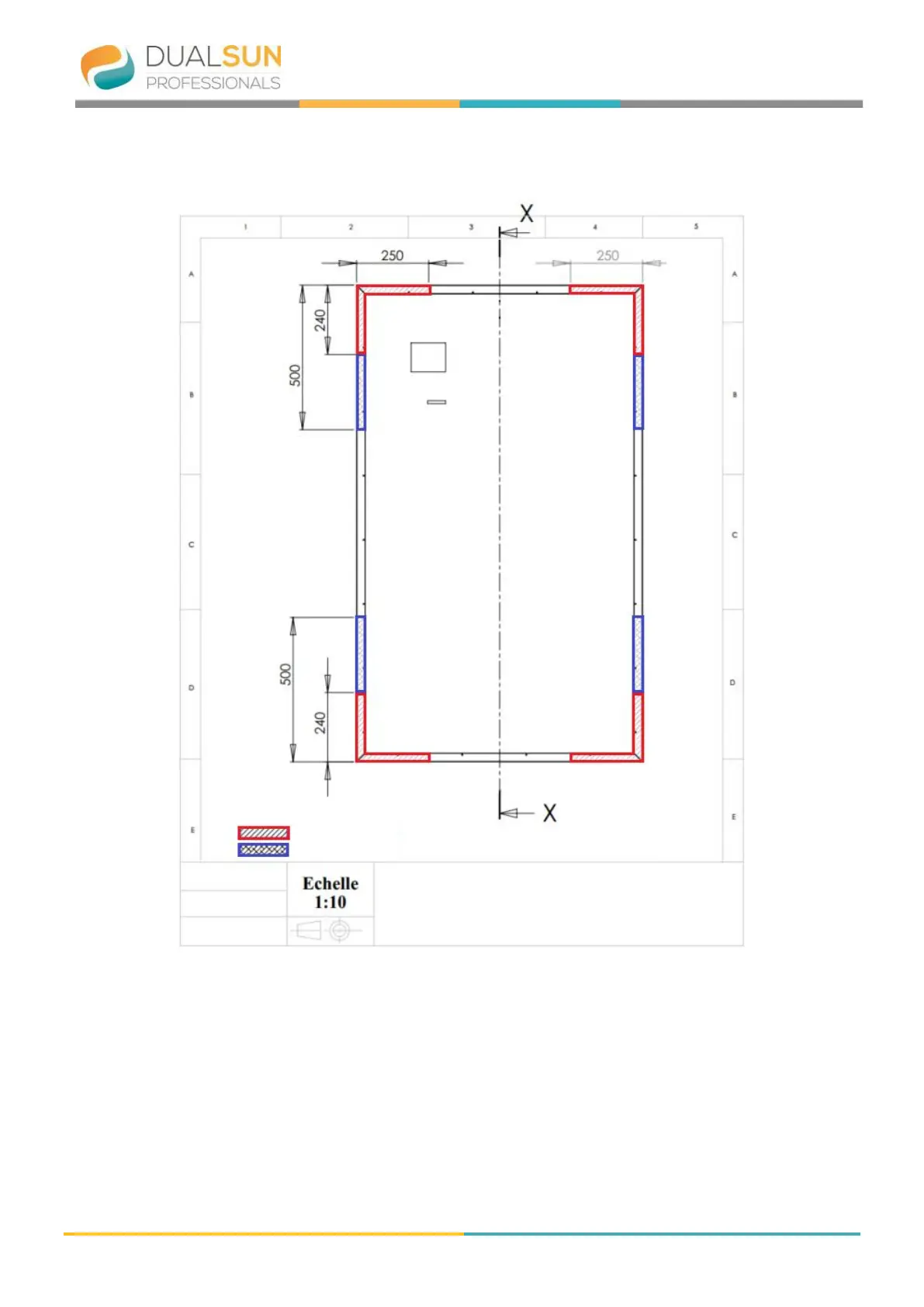

Figure 2 : Possible positions of the clamps to fasten Dualsun Flash panels
Mounting system positions
DualSun Flash
(drawing without junction box)
Mounting areas
Up to 2400 Pa
Up to 5400 Pa
