Permanent Installation
The natural gas grill head is compatible for use on
the permanent post mount, or the patio base mount.
This type of installation is used when a fixed piping
system is desired for connection to the main gas
supply. (See Fig. 14)
After installation and leak checks have been
completed in accordance with the instruction manual,
your grill is available for use. The natural gas will
automatically be supplied to your grill every time
you turn on your grill.
IMPORTANT: Installation must conform
with local codes or, in the absence of local codes,
with either the National Fuel Gas Code, ANSI
Z223.1 or CAN/CGA-B149.1; Natural Gas
Installation Code or CAN/CGA-B149.2, Propane
Installation Code.
Gas Leaks Checks
Before operating your grill, check carefully to be
certain that all connections are tight and there are
no gas leaks. Never use a match or flame for leak
detection. Use soapy water or testing solution. Brush
the solution on to connection points and look closely
for bubbles indicating escaping gas. If leaks are
detected, shut off the main gas supply valve and
securely retighten connections, then repeat the leak test.
CAUTION:
The appliance and its individual
shutoff valve must be disconnected from the gas
supply piping system during any pressure testing
of that system at test pressures in excess of 1/2
psig (14" wc).
CAUTION:
The appliance must be isolated
from the gas supply piping system by closing
its individual manual shutoff valve during any
pressure testing of the gas supply piping system
at test pressures equal to or less than 1/2 psig
(14" wc).

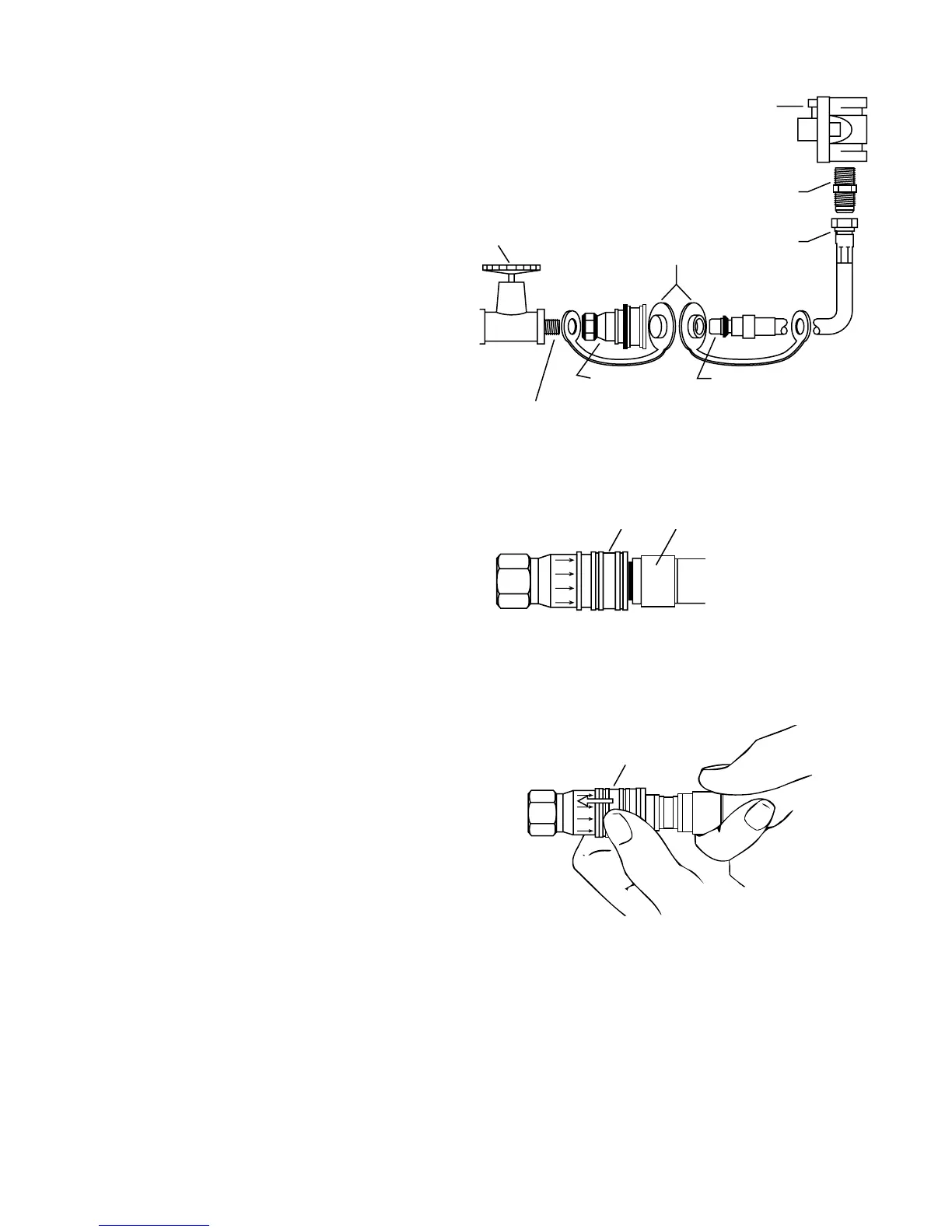

MALE CONNECTION
FLARE UNION
SWIVEL
CONNECTION
SHUT OFF
VALVE
WHEN PROPERLY ASSEMBLED THE PLUG CANNOT BE
REMOVED WITHOUT PUSHING THE SLEEVE BACK.
TO DISCONNECT, PUSH SLEEVE BACK AND PULL OUT
PLUG. (THIS AUTOMATICALLY SHUTS OFF GAS.)
FIG. 13
