3. The stainless steel SEAR GRID
®
can be easily
cleaned after the post-heating period. As soon as
the 15 minutes post-heating is completed, turn
the gas off. Open the lid with a covered hand and
with the use of a brass brush, rub the grid surface.
After you have completed this step, place
moistened paper towels under the brush and
brush again rotating the towel as it cleans your
grid. Remember to use a covered hand as the grid
surface may still be warm.
The Ducane stainless steel SEAR GRID
®
has been
designed to provide you with a 30% hotter cooking
surface over conventional cast or wire cooking grids.
It is easier to clean because of the smooth surface,
while also being constructed of strong, sturdy 304
stainless steel.
You will find this cooking surface to be extremely
durable while providing more heat directly to your
cooking surface for faster, more economical cooking.
3. Cleaning the Briquettes
Your briquettes, located on the LA-VA-GRATE
®
,
can be cleaned by simply brushing with a medium
stiff bristle brush.
4. Cleaning the 304 Grade Stainless
Steel LA-VA-GRATE
®
Your stainless steel LA-VA-GRATE
®
should also be
brushed down with the use of a brass long-handled
brush. Then, the same soapy solution mentioned in
Step 1 should be used.
IMPORTANT: The LA-VA-GRATE
®
and burners of
your grill operate in an extremely harsh environment
of high temperatures, fatty acids and salts. Frequent
cleaning of these items will keep your grill operating
properly and extend its life.
5. Cleaning the Burners
CAUTION: Turn main gas off at the tank.
To remove Main Grilling Burner(s) for cleaning:
1. Remove SEAR GRID
®
, briquettes and the
LA-VA-GRATE
®
. (See Fig. 26 and 27)
2. Remove the control knob(s) and control box.
3. Remove the electrode wire terminal(s) from
the pins on the ignitor.
4. Remove the burner locking screw. Lift and slide
burner back to remove. (See Fig. 28)
5. Hold the burner with one hand and remove the
burner slowly. Be careful that the electrode wire
does not catch as it is pulled through the console
and the burner box.
6. Remove nichrome glow wire from burner port.
(See Fig. 29) Do not disconnect nichrome wire
from collector box.
CAUTION: Turn main gas off at the tank.
To Remove ROTIS-A-GRATE
®
Burner For
Cleaning:
1. Remove SEAR GRID
®
, briquettes and the LA-VA-
GRATE
®
. (See Fig. 26 and 27)
2. Remove ROTIS-A-GRATE
®
from the burner box.
(See Fig. 28)
3. Remove the control knobs and control box.
4. Remove the rotis electrode wire terminal from
the pin on the ignitor.
5. Unscrew the two screws in the back of the burner
box which holds the rotis burner. Be sure to hold
the acorn nuts on the inside on the rotis bracket so
they do not drop.
6. Slowly remove the rotis burner, being careful
not to let the electrode wire catch on the console
or burner box.

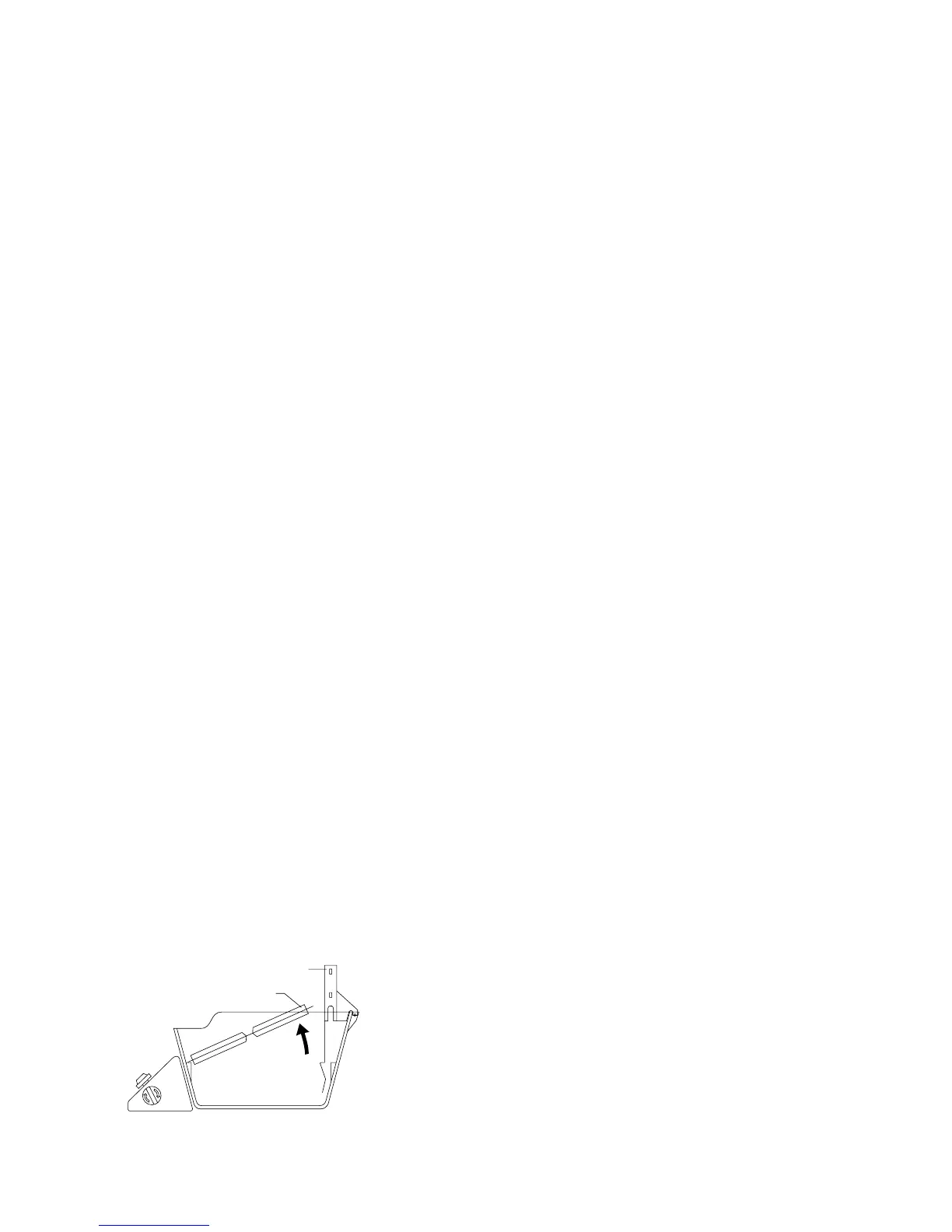

FIG. 27 REMOVE LA-VA-GRATE
®
IN DIRECTION INDICATED BY ARROWS.
