42
switch off the engine before carrying out any ad-
justments, maintenance or repairs.

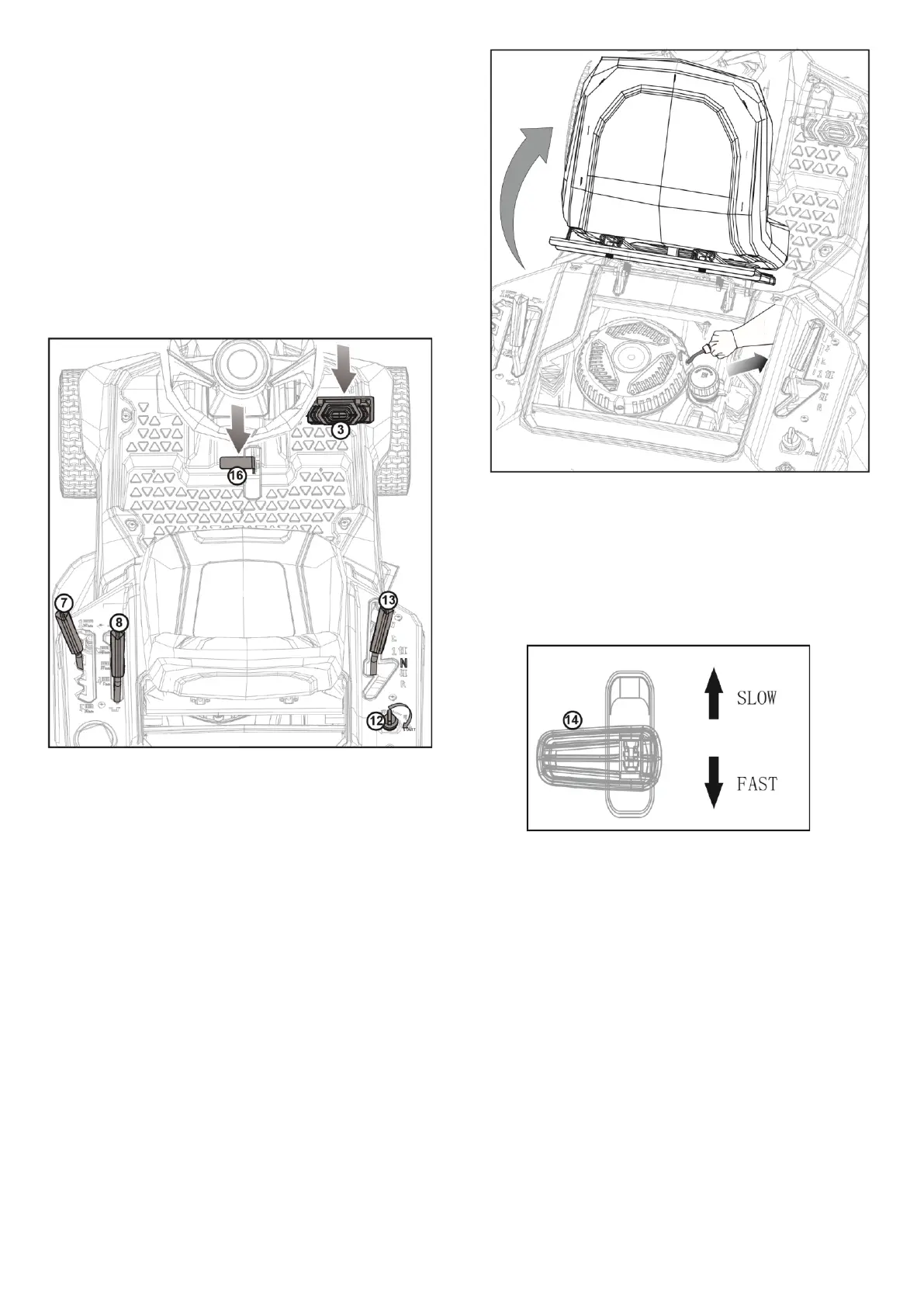

Start the engine with the e-start
• Check the motor oil level. See “oil level check” section.
• Engage the catching bag (9).
• Depress the brake clutch pedal (3) completely a ndactivate
the locking brake (16).
• The mower (8) must now be shut off.
• Set the desired cutting height (7)
• Set the gear lever (13) to neutral “N”
• Turn the ignition key (12 ) to “start” until the motor starts,then
leave it at the “on” position.
• Throttle handle (14) controls the speed.
Start the engine with the start cable
• Check the motor oil level. See “oil level check” section.
• Engage the catch bucket (9).
• Depress the brake pedal (3) completely and activate
thelocking brake (16).
• The mower (8) must now be shut off.
• Set the desired cutting height (7)
• Set the gear lever (13) to neutral “N”
• Turn the ignition key (12) to “ON”
• Fold the seat up and pull the start cable
• Attention: In case of cool weather, it may be necessary to re-
peat the starting process numerous times.
• Do not permit the start cable to slam back into place.
• Fold the seat closed.
DRIVE WITHOUT MOWING
• At low speed “SLOW”, depress the brake pedal (3) comple-
tely, and the locking brake (16) unlocks itself.
• Engage the desired gear.
• Release the brake pedal (3) slowly to mobilise the lawnmo-
wer slowly.
• Move the gas lever (14) in the “FAST” direction to increase
the throttle.
• Attention! Only change gears while stopped.
Driving with mower
• At low speed “SLOW”, depress the brake pedal (3) comple-
tely, and the locking brake (16) unlocks itself.
• Slowly move the mower switch lever (8) to the forward,and
when the mower is clutched, move to the left until it enga-
ges. • Engage the desired gear.
• Release the brake pedal (3) slowly to mobilise the lawnmo-
wer slowly.
• Move the gas lever (14) in the “FAST” direction to increase
the throttle.
• Attention! Only change gears while stopped.
