Ducar DT36V - Tiller Operation


15

7. TillerOperation

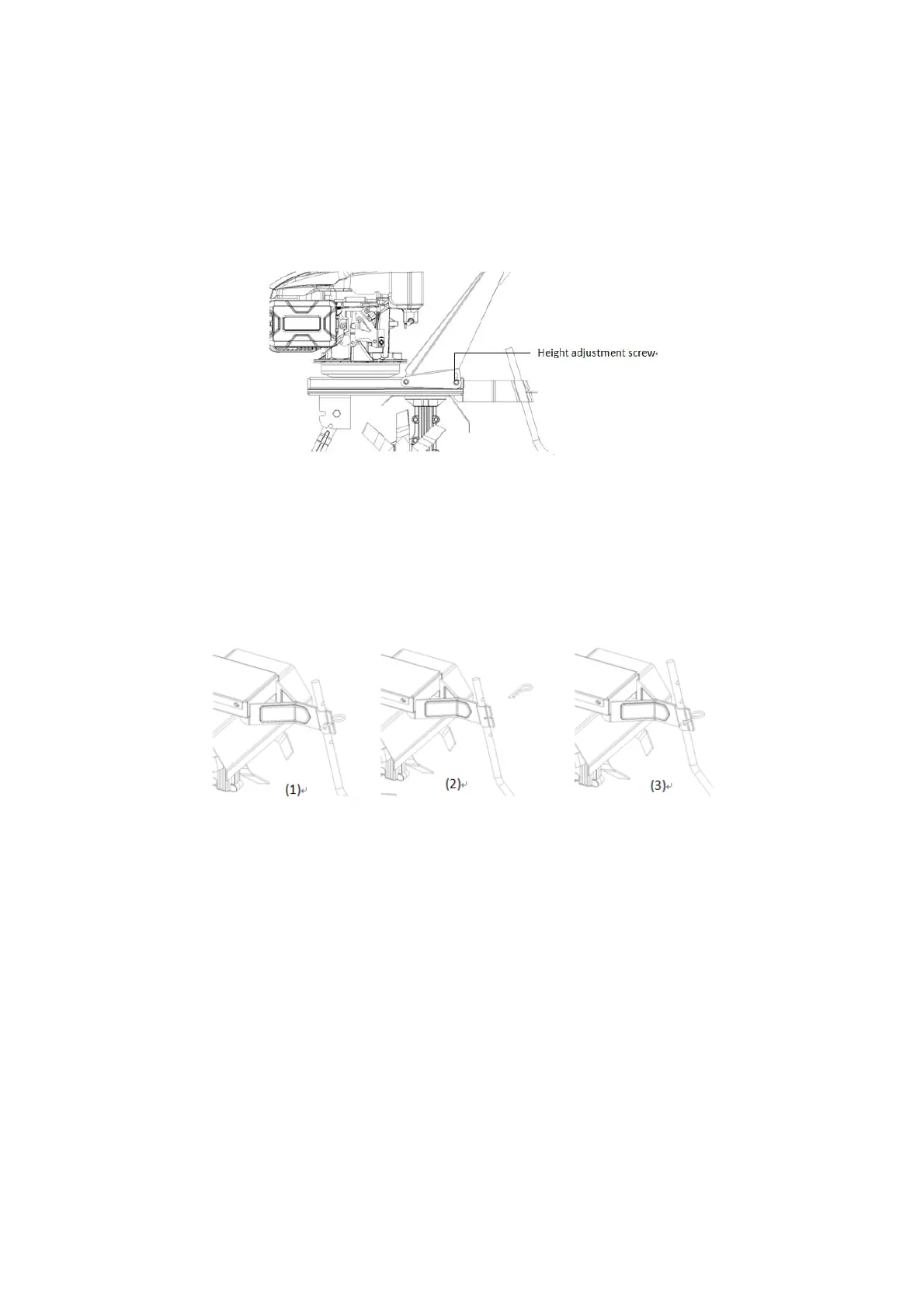

7.1 Tillerheightadjustment
CAUTION:Beforeadjustingthehandlebar,placethetilleronfirmlevelgroundtopreventthehandlefromcollapsing
accidentally.
Toadjustthetillerheight,loosentheadjuster,selecttheappropriateholeandtightentheadjuster.
7.2 Tillingdepthadjustment
Installthehitchattachmentinthehitchboxwithahitchpin.
Thetillingdepthadjustmentcanbemadeasfollows:
Removethehitchbarlockingpin,slidingthedragbarupordownasnecessary.
7.3 Clutchoperation
Theclutchengagesanddisengagesthepowerfromtheenginetothetransmission.
Whentheclutchleverissqueezedtheclutchisengagedandpoweristransmitted.Squeezethelever,thetoolwillbe
rotated.
Whentheleverisreleased,theclutchisdisengagedandpowerisnottransmitted,releasetheclut
chlever,thetoolwill
bestopped.

CAUTION:Reduceenginerpmbeforeoperatingmainclutch.
