MAIN MAINTENANCE OPERATIONS
Removing the fairing
Some servicing operations need the motorcycle fairing to
be removed.
Warning
Firmly and properly secure all removed parts when
refitting them, otherwise some of them might suddenly
come off when riding and you may lose control of your
motorcycle.
Important
At reassembly always fit nylon washers when
tightening fastening screws, not to damage painted parts
and Plexiglas headlamp fairing.

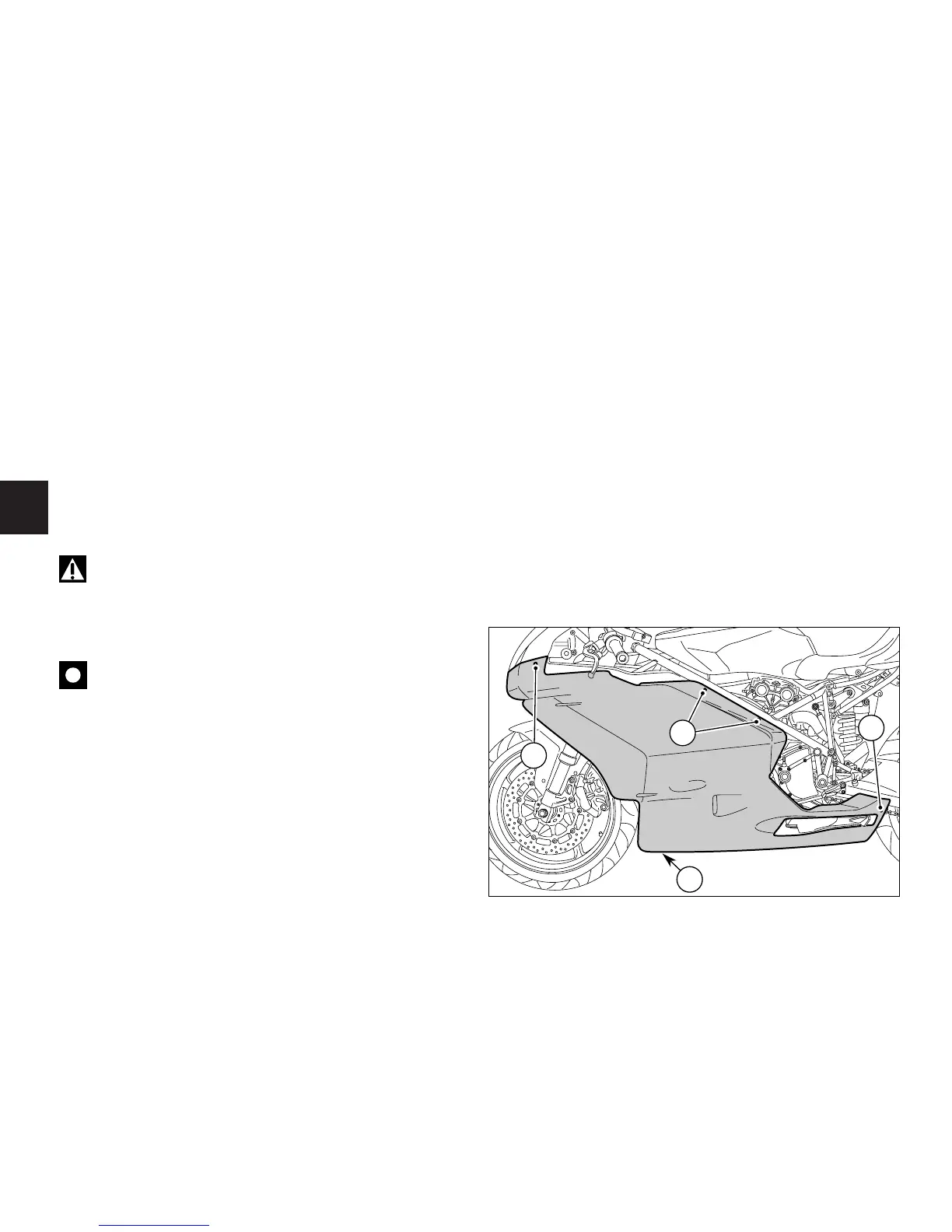

fig. 43
Side body panels
Remove the body panels as follows. Using the Allen key
accommodated under the seat unscrew what follows:
the two quick fasteners (1) securing the body panels to
the brackets.
the two quick fasteners (2) securing the body panels to
the headlamp fairing.
the four frame quick fasteners (3).
the screw (4) joining the right and left body panels at the
bottom end.
