Note

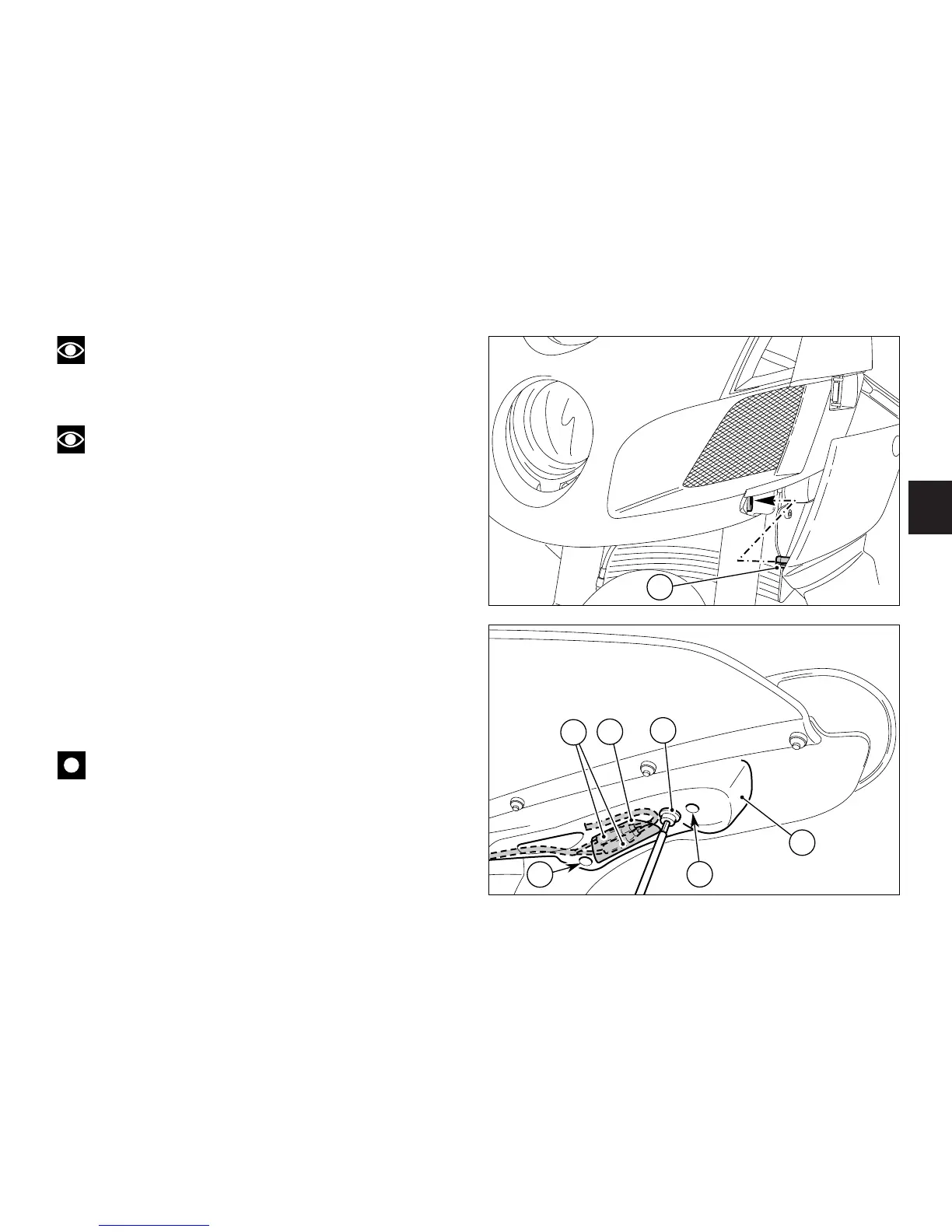

When refitting the fairings, make sure that the front
locating lug (5) becomes correctly seated into the hole in
the headlamp fairing.
Note
To refit the left body panel, unfold the side stand
and insert it into the opening in the body panel.
Rear-view mirrors
Unscrew the retaining screw (6) of the rear-view mirror.
Release the retaining pins (7) from the clips secured to
the headlamp support (8). Slip off the rubber gaiter (9)
and disconnect the turn indicator connectors (10).
Repeat the process for the other rear-view mirror.
Important
On refitting, smear the threads of the screws (6)
with “medium-strength threadlocker”.
fig. 44
