Radio-receiver
ENGLISH
Fuse mains power supply
230 Vac 5A

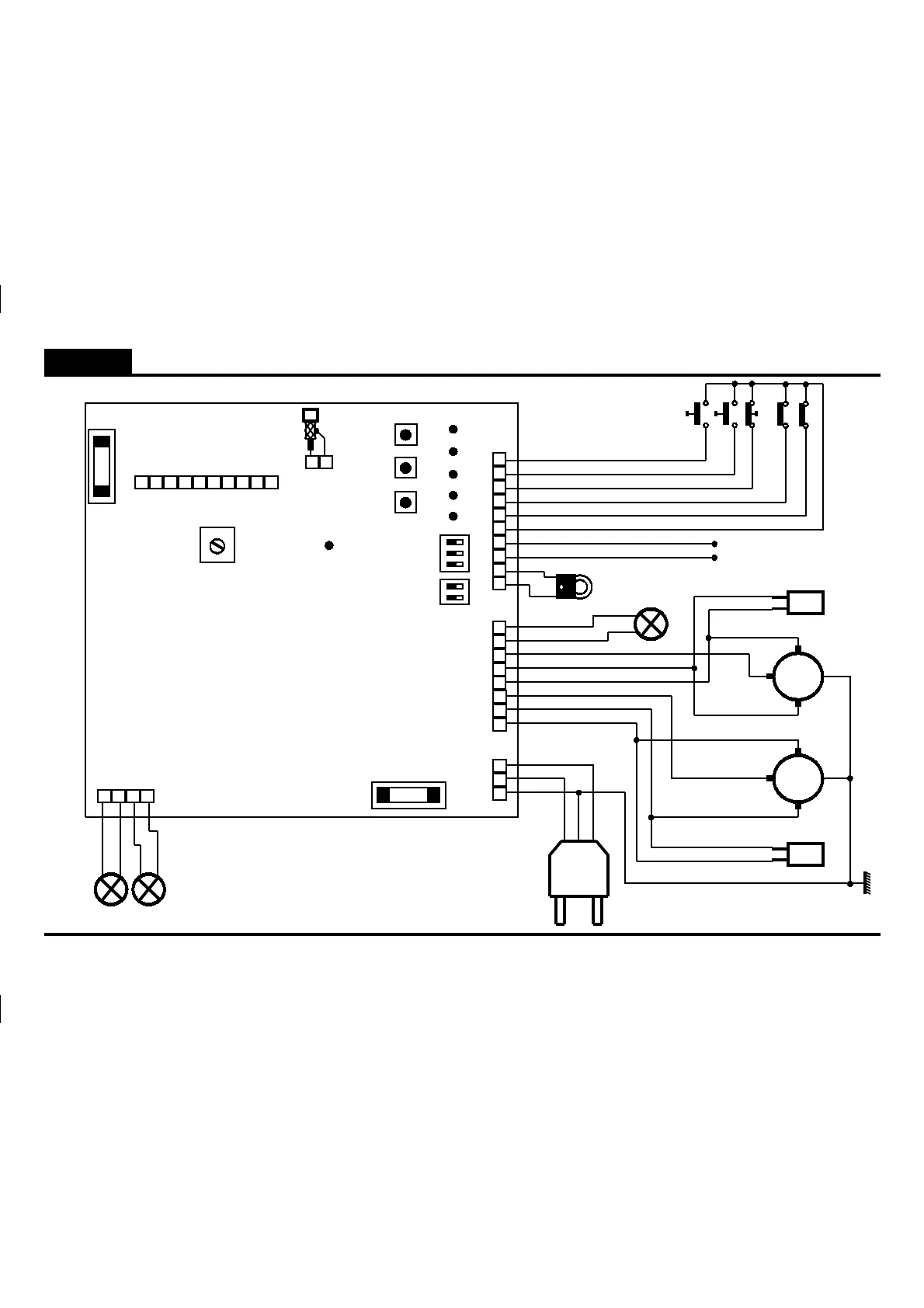

General diagram
1
2
J1
Fuse low voltage
24 Vac 1A
F
1
1
2
3
4
5
6
7
8
9
10
J6
1
2
3
4
J4
Courtesy light
Dip switch
Selection of the programs
F
N
230 Vac
Aerial
cable
1 2 3 4 5 6 7 8
1 2 3 4 5 6 7 8 9 10
J2
J5
M1 M2
COM
COM
Blinker
CH
CH AP AP
Ground
Capacitor
STOP NC
ST.PED.NO
START NO
Electric
lock
Output
24 Vac
Open gate lamp
F2
1 2 3
J7
Optical signallings
PHOTOC NC
PHOTOSTOP NC
COMMON
P1
P2 P3
Programming push-buttons
3 2 1 5 4
ON
ON
RV1
Slow-down speed
and power regulation
FTS FTC STP STPD ST
DL1
Programming LED
Capacitor
