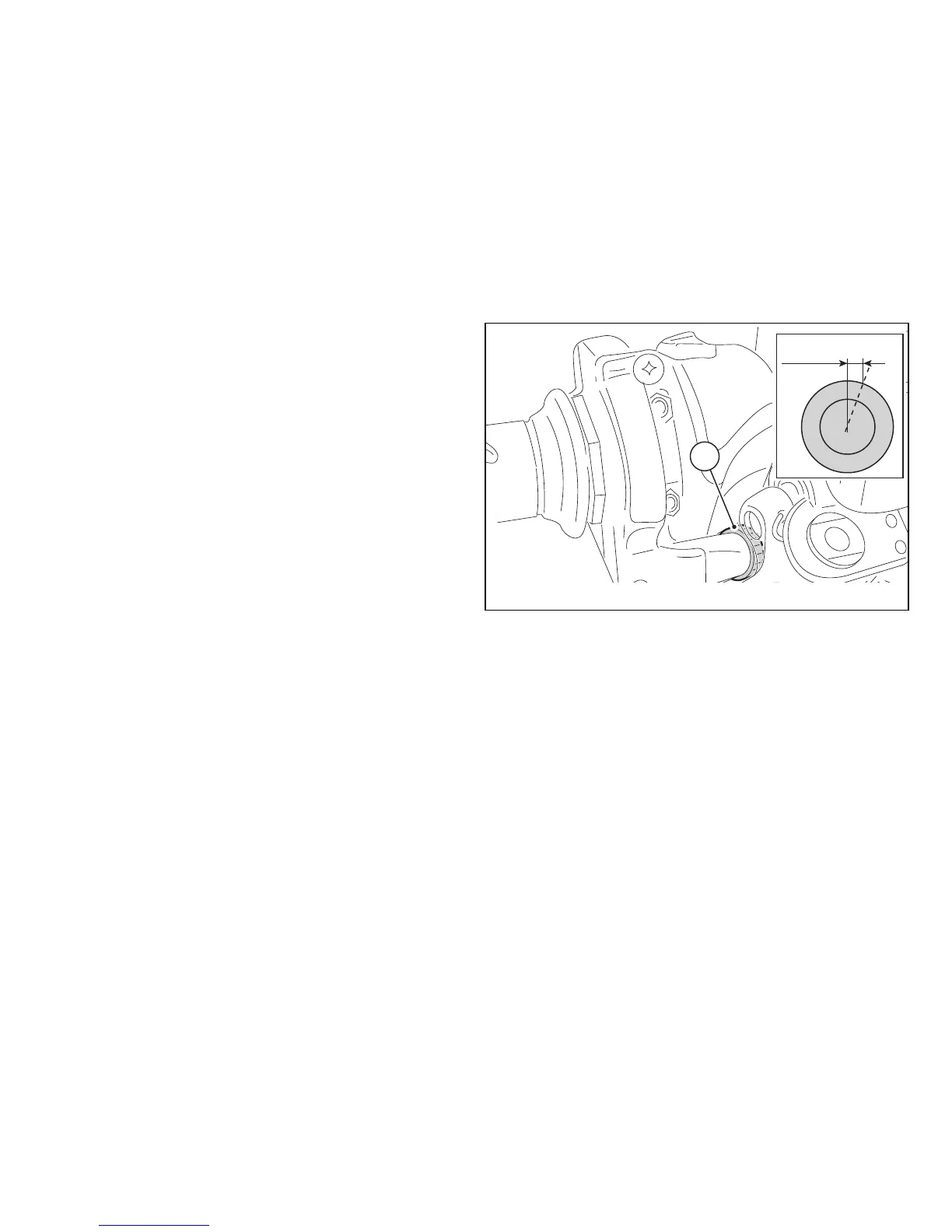

Adjusting the throttle cable
In all steering positions, the throttle twistgrip should
have about 2 to 4 mm of free travel, measured at the
outer edge of the twistgrip housing.
If necessary, adjust it with the adjuster (1) located on
the twistgrip.
2÷4 mm
1
Fig. 67
