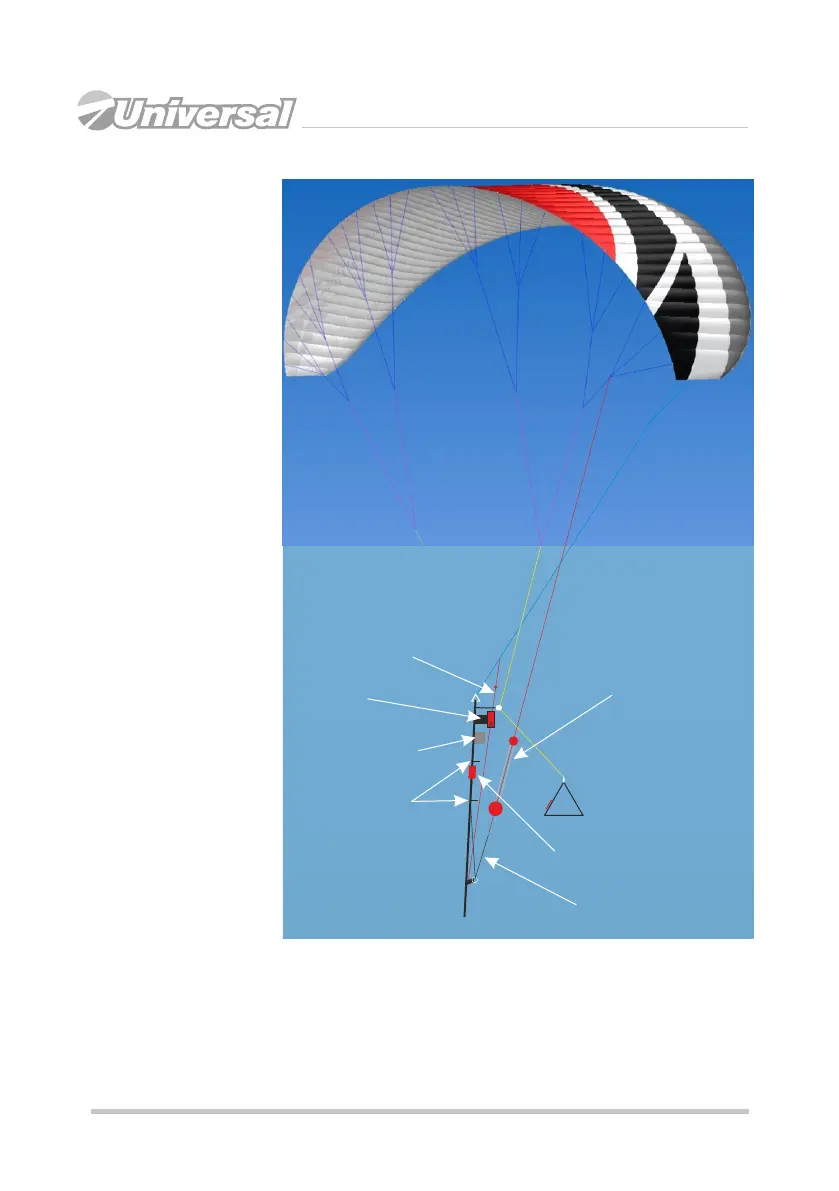

Figure 6
Steering systems
scheme
Here is a simple guide
to find your way in a
maze of risers and
their various handles.
Classic brakes
operate along entire
trailing edge, ALC+
system is active on
the outer parts of the
trailing edge, and the
TEA affects stabilizer
only.
With this arrangement
the pilot has full range
of steering systems at
his disposal and can
freely choose between
them, according to his
needs and current
situation.
ALC+ handle
TEA
line
Brake handle
(classic brake)
TEA lock
Adjustable Easy Keeper
magnet
Magnetic lock of the
ALC+ handle
Additional pulley
locations
elastic band
