neutral configuration
risers length:
A, A': 460 mm
neutral configuration
risers length:
A, A’, D: 460 mm
B, C: 465 mm
neutral configuration
risers length:
A, A': 460 mm
D C B A’ AD C B A’ AD C B A’ A
70 70 4565 40 15

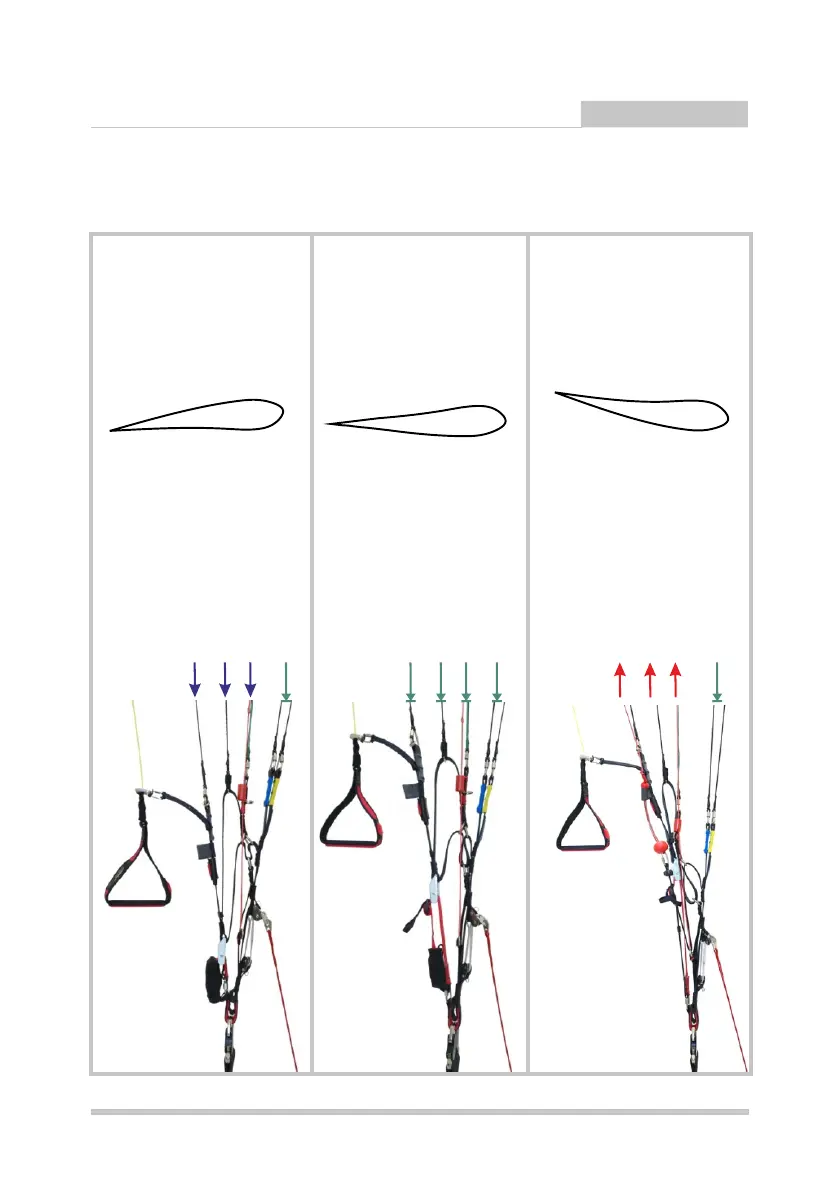

Figure 7 Trimmers influence on the wing profile
Trimmers closed
Minimal speed and
minimal sink
Take-off position
Trimmers in “6”
position
Risers of equal length.
Transitional position
Trimmers fully opened
Maximum speed
lengthening [mm]:
shortening [mm]:
