MODEL FVFLC24
-
1
1. Insert log #1 onto shelf at rear of log chas-
sis.
2.
Place log #2 onto left side of grate
assembly.
3. Place log #3 onto right side of grate
assembly.
4. Place log #4 into notches in logs #2 and
#3.
5. Place log #5 into notches in logs#1 and
#3.
6. Place log #6 into notches in logs #1 and
#2.
7. Place log #7 into notches in logs #1 and
#4.
8. Place log #8 into notches in logs #6 and
#4.
9. Place log #9 into notches in logs #5 and
#3.
INSTALLING LOGS
MODEL FVFLC24
-
2
1. Insert log #1 onto shelf at rear of log chas-
sis.
2.
Place log #2 onto left side of grate
assembly.
3. Place log #3 onto right side of grate
assembly.
4. Place log #4 into notches in logs #1 and
#3.
5. Place log #7 into notches in logs #1 and
#2.
6. Place log #5 into notches in logs #1, #2
and #3.
7. Place log #6 into notches in logs #4 and
#3.
8. Place log #8 into notches in logs #7 and
#2.

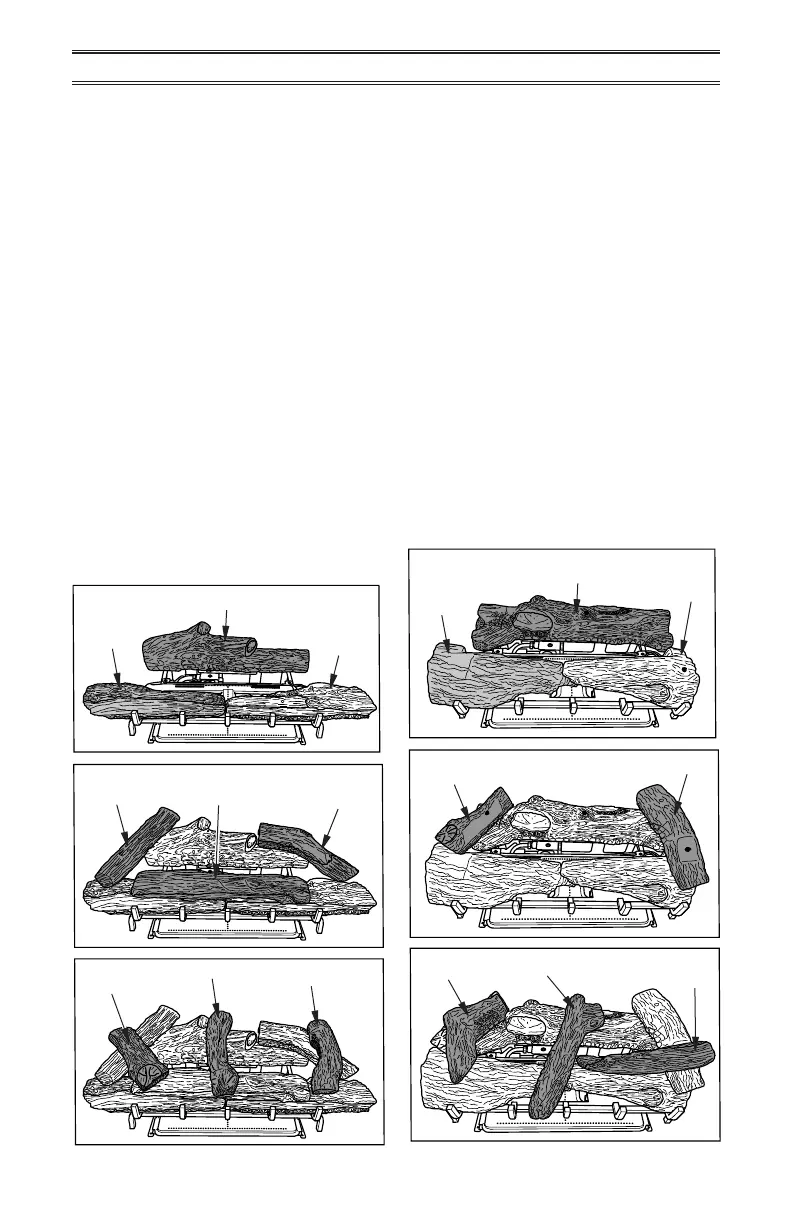

Some logs have notches to help secure them in place. If applicable, place the log into the
notch of the log or logs is it being placed on. See instructions and illustrations below for
proper placement.
Log #1
Log #5
Log #7
Log #9
Log #6
Log #8
Log #2
Log #4
Log #3
Log #1
Log #5
Log #7
Log #6
Log #8
Log #2
Log #4
Log #3
