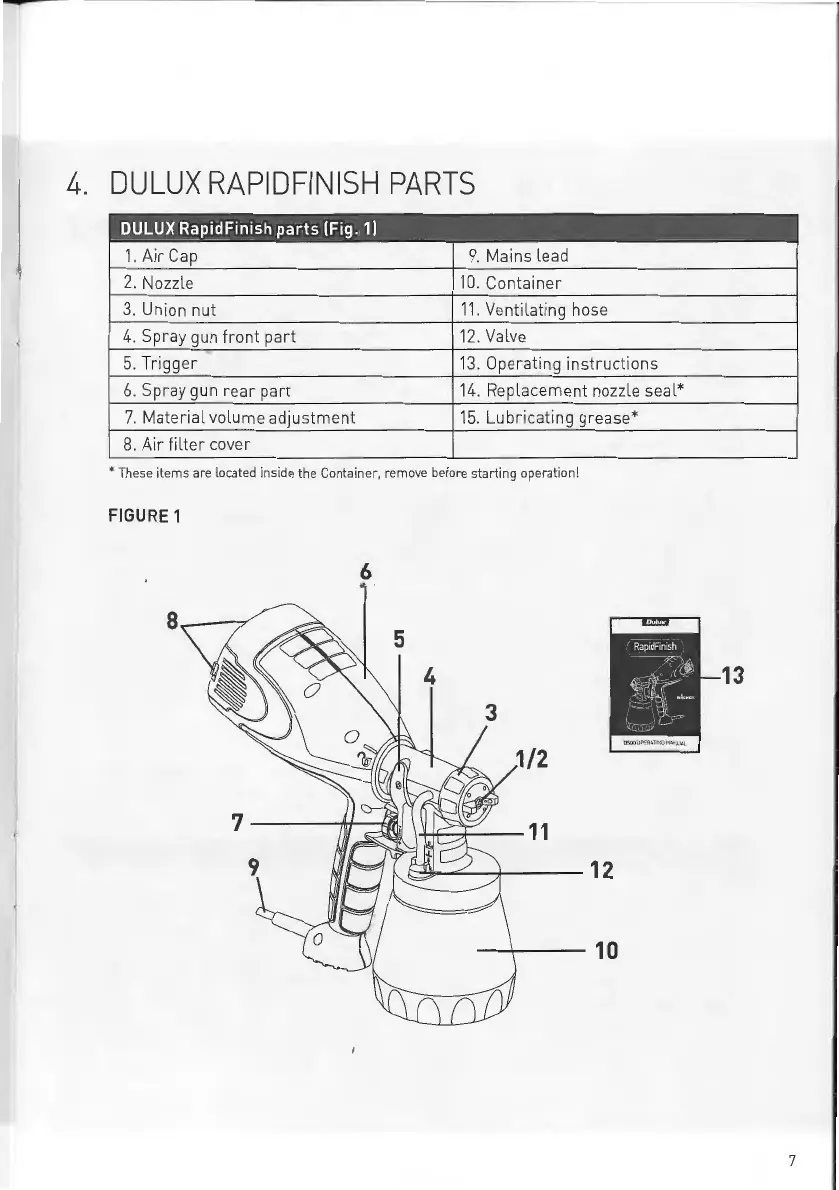

4. DU LUX RAPIDFINISH PARTS
DULUX RapidFinish parts (Fig. 1)
1 .A irCap 9. Main s lead
2. Nozzle 10 . Contai ner
3. Union nut 11. Ventilating hose
4. Spray
gun front part 12. Valve
5. Tr igger 1 3. Operat ing instructions
6. Spray gun rear part 14. Replacement n ozz le seal*
7. Material volume adjustment 15. Lubricating grease*
8. Air fi lt er cover
* These items are located inside the Container, remove before starting operation I
FIGURE 1
6
13
7
