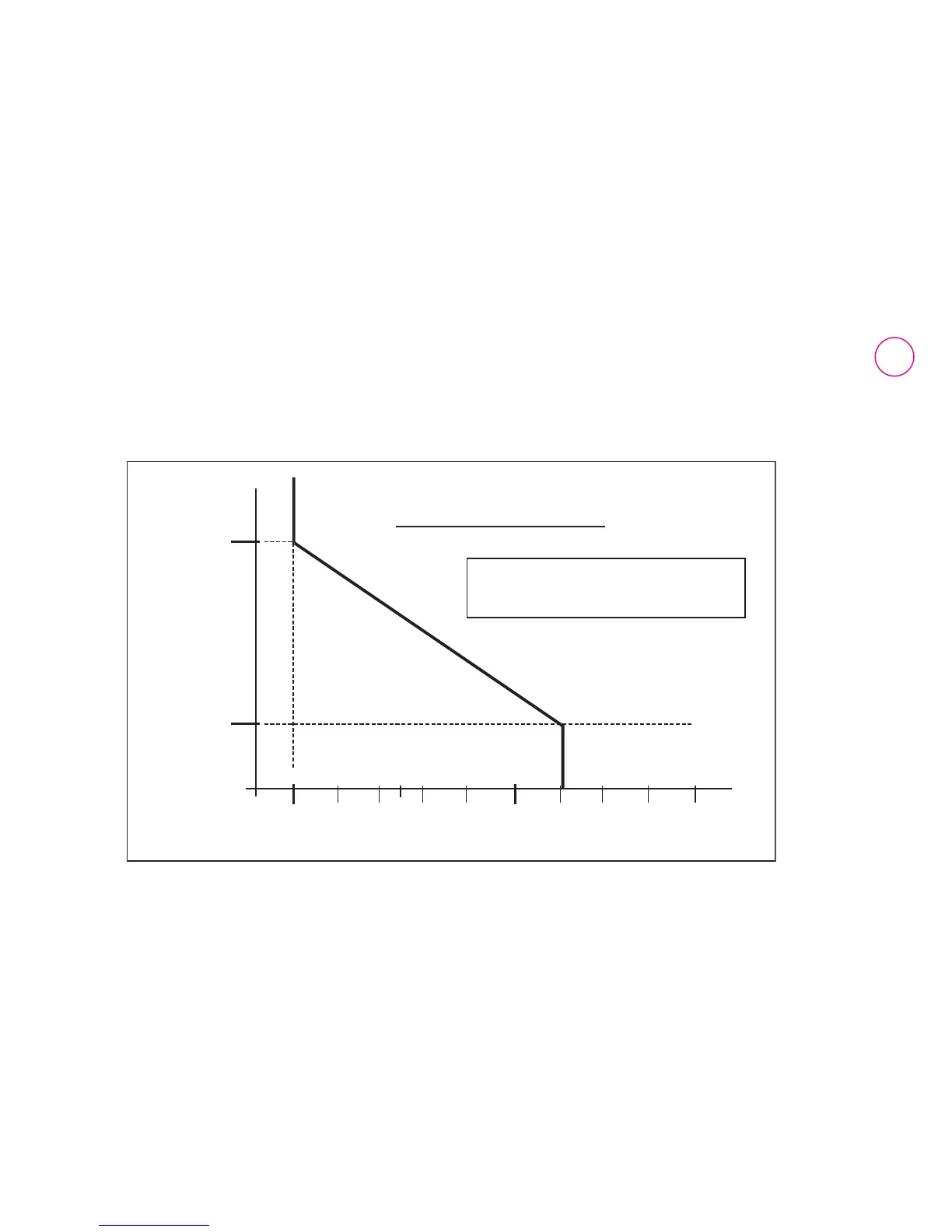

Outdoor Reset Overview
60˚ F
(P7)
0˚ F
(P6)
120˚ F
(P5)
180˚ F
(P4)
120˚: 190 Btu/hr.
150˚: 370 Btu/hr.
180˚: 560 Btu/hr.
Outdoor
Temp.
Boiler Water Temp.
* Baseboard output:
*
*
*
MODULATION CURVE
NOTE: Domestic priority
will override outdoor reset
EXAMPLE 1 (Factory Settings) P7, P6, P5 & P4
