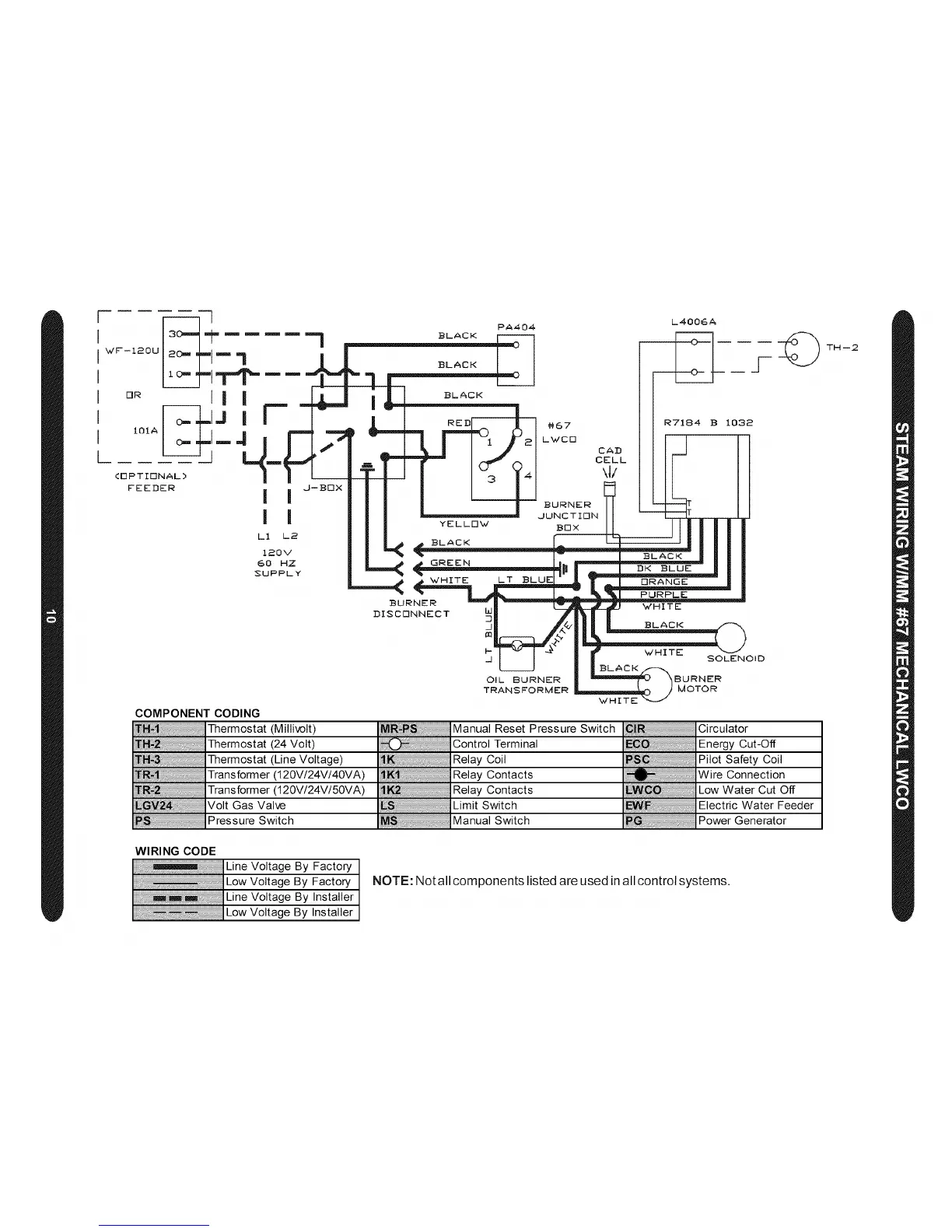

I I
I I
L1 L2
120V
60 HZ
SUPPLY
YELLDW
BLACK
GREEN
WHITE
_URNER
DISCONNECT
LT
#67
LWCO
CAD
CELL
\1/
BURNER
JUNCTION
BOX
R7|84 B 1032
BLACK
DK BLUE
ORANGE
PURPLE
WHITE
BLACK
COMPONENT CODING
Thermostat (Millivolt)
Thermostat (24 Volt)
Thermostat (Line Voltage)
Transformer (120V/24V/40VA)
Transformer (120V/24V/50VA)
Volt Gas Valve
Pressure Switch
OIL BURNER
TRANSFORMER
BLACK
WHITE
Manual Reset Pressure Switch
Control Terminal
Relay Coil
Relay Contacts
Relay Contacts
Limit Switch
Manual Switch
WHITE
SOLENOID
BURNER
MOTOR
Circulator
Energy Cut-Off
Pilot Safety Coil
Wire Connection
Low Water Cut Off
Electric Water Feeder
Power Generator
TI-I --2
WIRING CODE
Line Voltage By Factory
[ : Low Voltage By Factory
Line Voltage By Installer
Low Voltage By Installer
NOTE: Not all components listed are used in all control systems,
