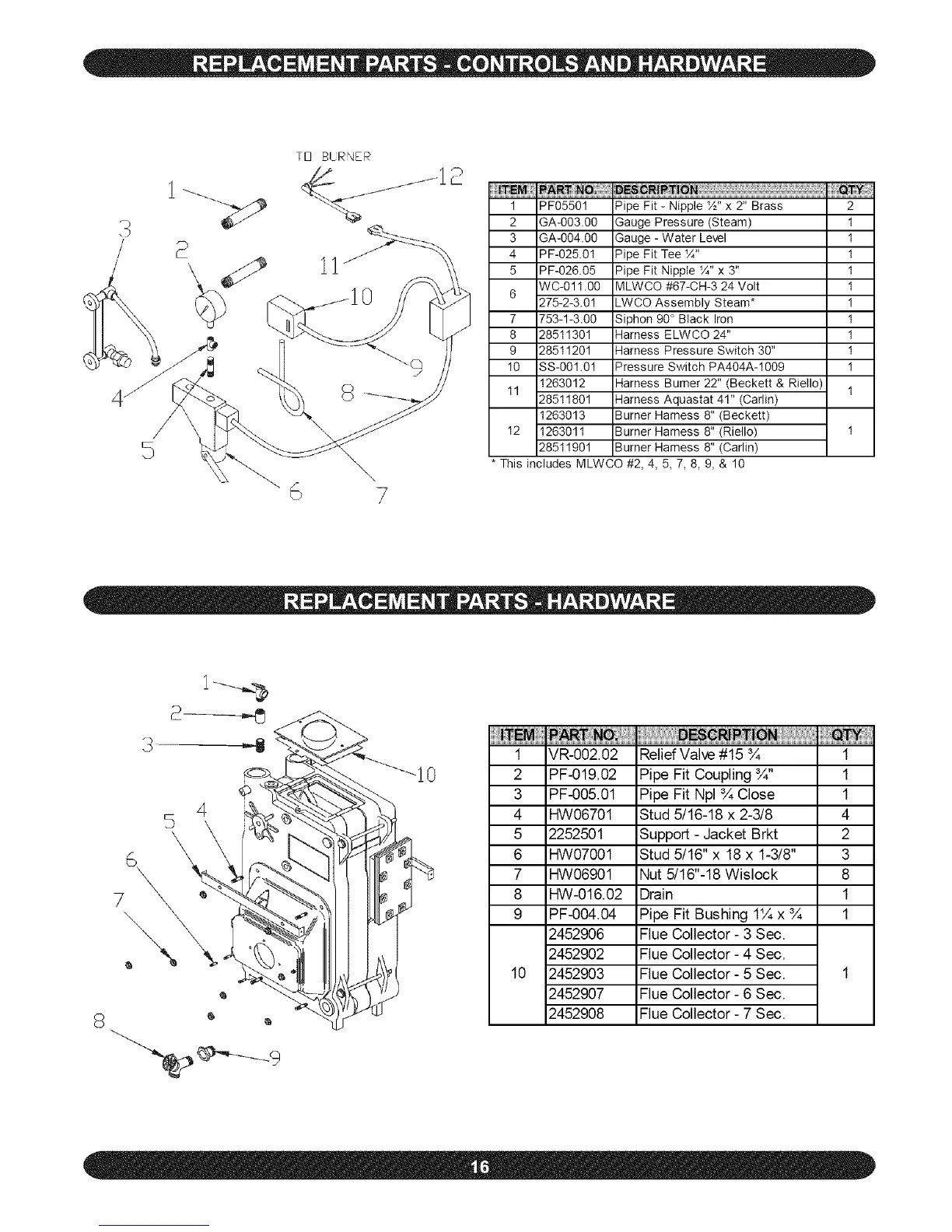

3
/
/
5
TO BURNER
\
\
6
1
2
3
4
5
6
7
8
9
10
11
12
* This
PF05501
GA-003.00
GA-004.00
PF-025.01
PF-026.05
WC-011.00
275-2-3.01
753-1-3.00
28511301
28511201
SS-001.01
1263012
28511801
1263013
1263011
28511901
Pipe Fit - Nipple ½" x 2" Brass 2
Gauge Pressure (Steam) 1
Gauge - Water Level 1
Pipe Fit Tee 1/4" 1
Pipe Fit Nipple ½" x 3" 1
MLWCO #67-CH-3 24 Volt 1
LWCO Assembly Steam* 1
Siphon 90° Black Iron 1
Harness ELWCO 24" 1
Harness Pressure Switch 30" 1
Pressure Switch PA404A-1009 1
Harness Bumer 22" (Beckett & RieIIo) 1
Harness Aquastat 41" (Carlin)
Burner Hamess 8" (Beckett)
Burner Hamess 8" (Riello) 1
Burner Harness 8" (Carlin)
includes MLWCO #2, 4, 5, 7, 8, 9, & 10
8
"%
:3 ,--8
-i0
1 VR-002.02 Relief Val_ #15 ¾ 1
2 PF-019.02 Pipe Fit Coupling ¾" 1
3 PF-005.01 Pipe Fit Npl ¾ Close 1
4 HW06701 Stud 5/16-18 x 2-3/8 4
5 2252501 Support - Jacket Brkt 2
6 HW07001 Stud 5/16" x 18 x 1-3/8" 3
7 HW06901 Nut 5/16"-18 Wislock 8
8 HW-016.02 Drain 1
9 PF-004.04 Pipe Fit Bushing 1!¼x ¾ 1
2452906 Flue Collector - 3 Sec.
2452902 Flue Collector - 4 Sec.
10 2452903 Flue Collector - 5 Sec. 1
2452907 Flue Collector - 6 Sec.
2452908 Flue Collector - 7 Sec.
To Next Page
