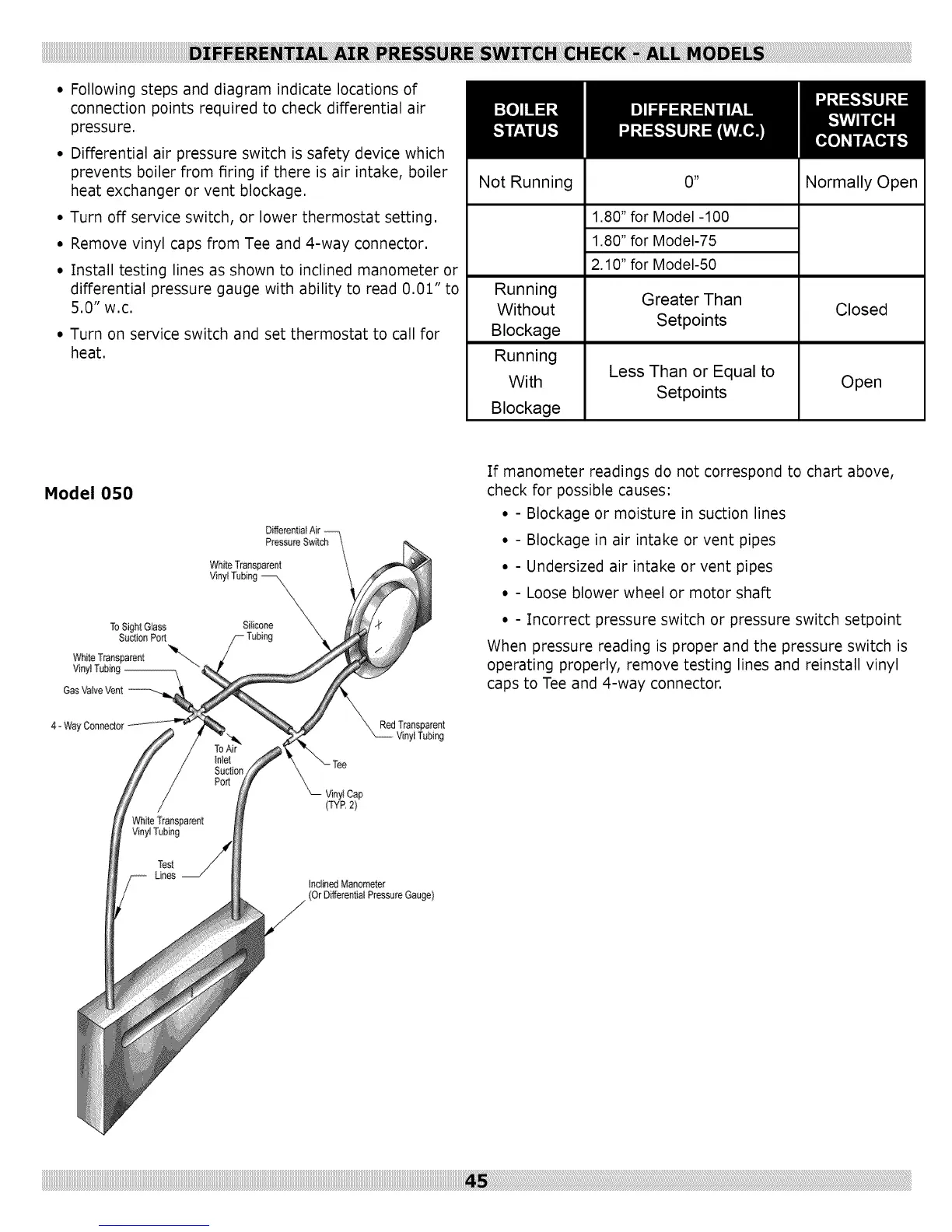

• Following steps and diagram indicate locations of
connection points required to check differential air
pressure.
• Differential air pressure switch is safety device which
prevents boiler from firing if there is air intake, boiler
heat exchanger or vent blockage.
• Turn off service switch, or lower thermostat setting.
• Remove vinyl caps from Tee and 4-way connector.
• Install testing lines as shown to inclined manometer or
differential pressure gauge with ability to read 0.01" to
5.0" w.c.
• Turn on service switch and set thermostat to call for
heat.
Not Running
Running
Without
Blockage
Running
With
Blockage
_
1.80" for Model -100
1.80" for Model-75
2.10" for Model-50
Greater Than
Setpoints
Less Than or Equal to
Setpoints
Normally Open
Closed
Open
Model 050
ToSightGlass
Sue_onPo_
WhiteTransparent '_'_'...
VinylTubing_,
GasValveVent
4- WayConaeete_
D#ferential#
PressureSwitch
White Transparent
Viny_ Tubing
Silicone
RedTransparent
_/inyiTubing
If manometer readings do not correspond to chart above,
check for possible causes:
• - Blockage or moisture in suction lines
• - Blockage in air intake or vent pipes
• - Undersized air intake or vent pipes
• - Loose blower wheel or motor shaft
• - Incorrect pressure switch or pressure switch setpoint
When pressure reading is proper and the pressure switch is
operating properly, remove testing lines and reinstall vinyl
caps to Tee and 4-way connector.
WhiteTransparent
VinylTubing
Test
Lines
InclinedManometer
(OrDifferentialPressureGauge)
