Duplomatic 10 Series - 3.3 - DM-16 Duty performances

M.I.6458-16-01107
3.3-DM-16Dutyperformances

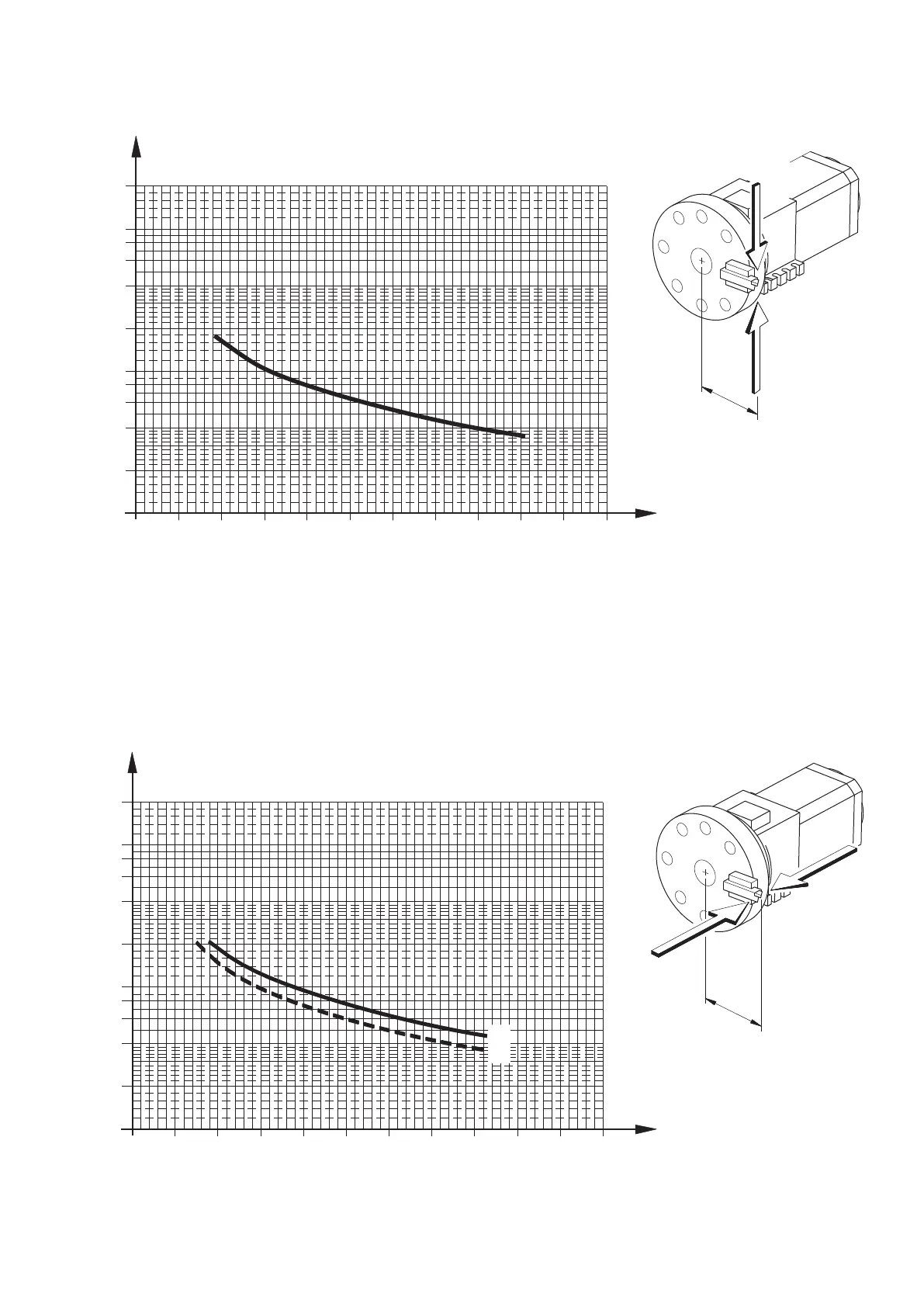

The diagram refers to F1 values which cause elastic yelding within the rates shown in the schedule.
f3 [N] Tiltingforce(tolift)
f2 [N] Tiltingforce(topush)
f1 [N] Tangentialforce
200000
100000
80000
60000
40000
20000
10000
8000
6000
4000
2000
1000
0 100 200 300 400 500
b [mm]
F 2
F 3
200000
100000
80000
60000
40000
20000
10000
8000
6000
4000
2000
1000
0 100 200 300 400 500
b [mm]
F1+
F1−
b
F3
F2
b
