Durabrand DB1200 - Wiring Diagram; Fuse Information

3
DB1200 INSTALLATION

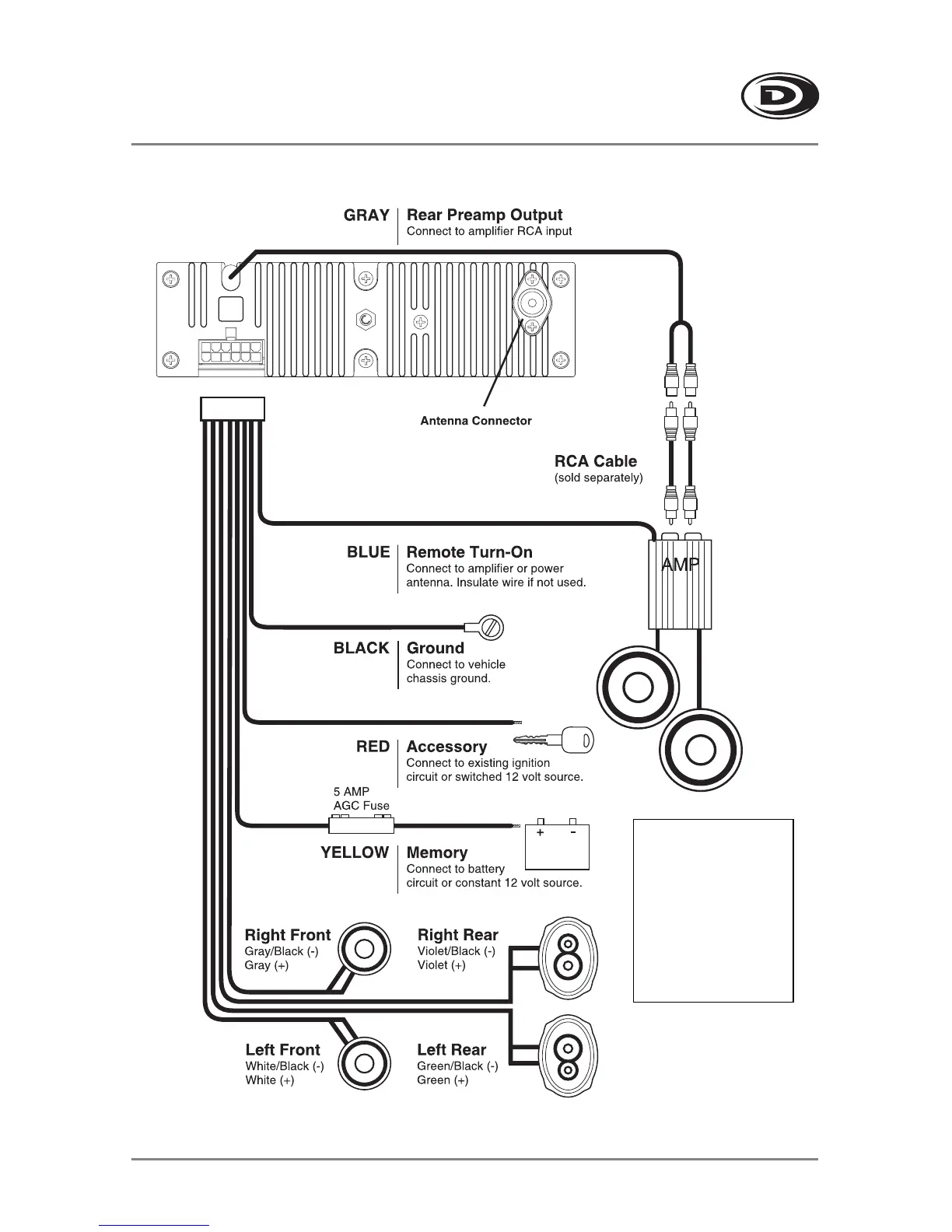

Wiring Diagram
FUSE
When replacing the fuse,
make sure new fuse is
the correct type and
amperage. Using an
incorrect fuse could
damage the radio. The
DB1200 uses one 5 amp
AGC fuse located in-line.
* CAUTION - Do not attach any speaker leads to ground as severe damage will occur.
