ASSEMBLY (PNF)
3

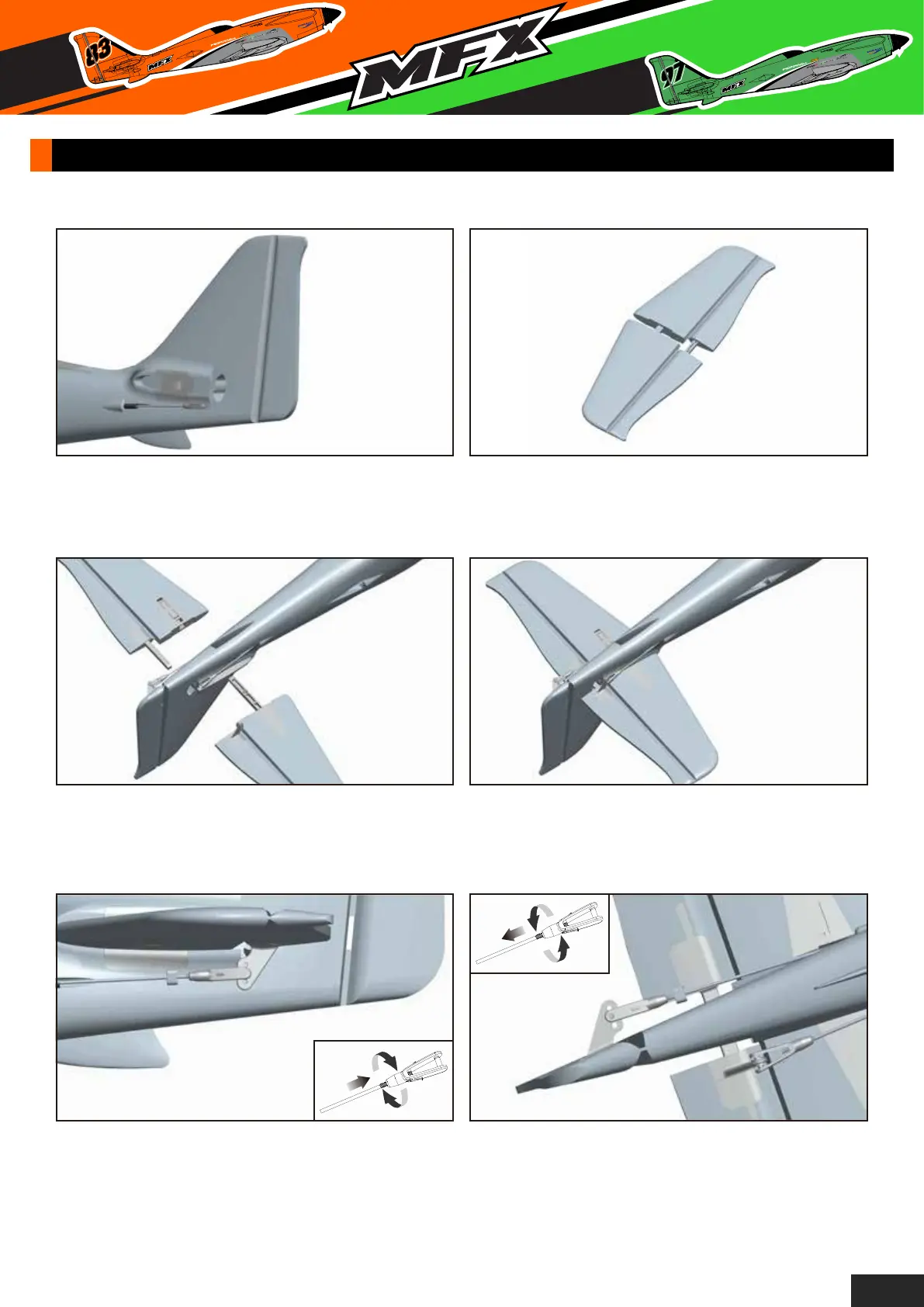

1. The first step is to attach the horizontal stabilizer
to the rear of the fuselage.
2. The horizontal stabilizer is supplied in the box
pushed together, unclip the 2 halves from each
other.
3. Slide the left hand horizontal stabilizer through
the plastic housing at the rear of the fuselage as
shown. Install the right hand stabilizer and ensure
both pieces lock together into the fuselage, and to
each other.
4. Push together firmly to make sure they are
securely clipped together. For extra security,
we suggest you glue these components together
using a good foam glue.
5.
With the elevator servo set at neutral connect the
elevator clevis to the elevator control horn. Ensure
the elevator is at neutral by either adjusting the
clevis itself, or by slackening the grub-screw on the
elevator servo adjuster.
6. Repeat this process with the rudder linkage.
