4
7.

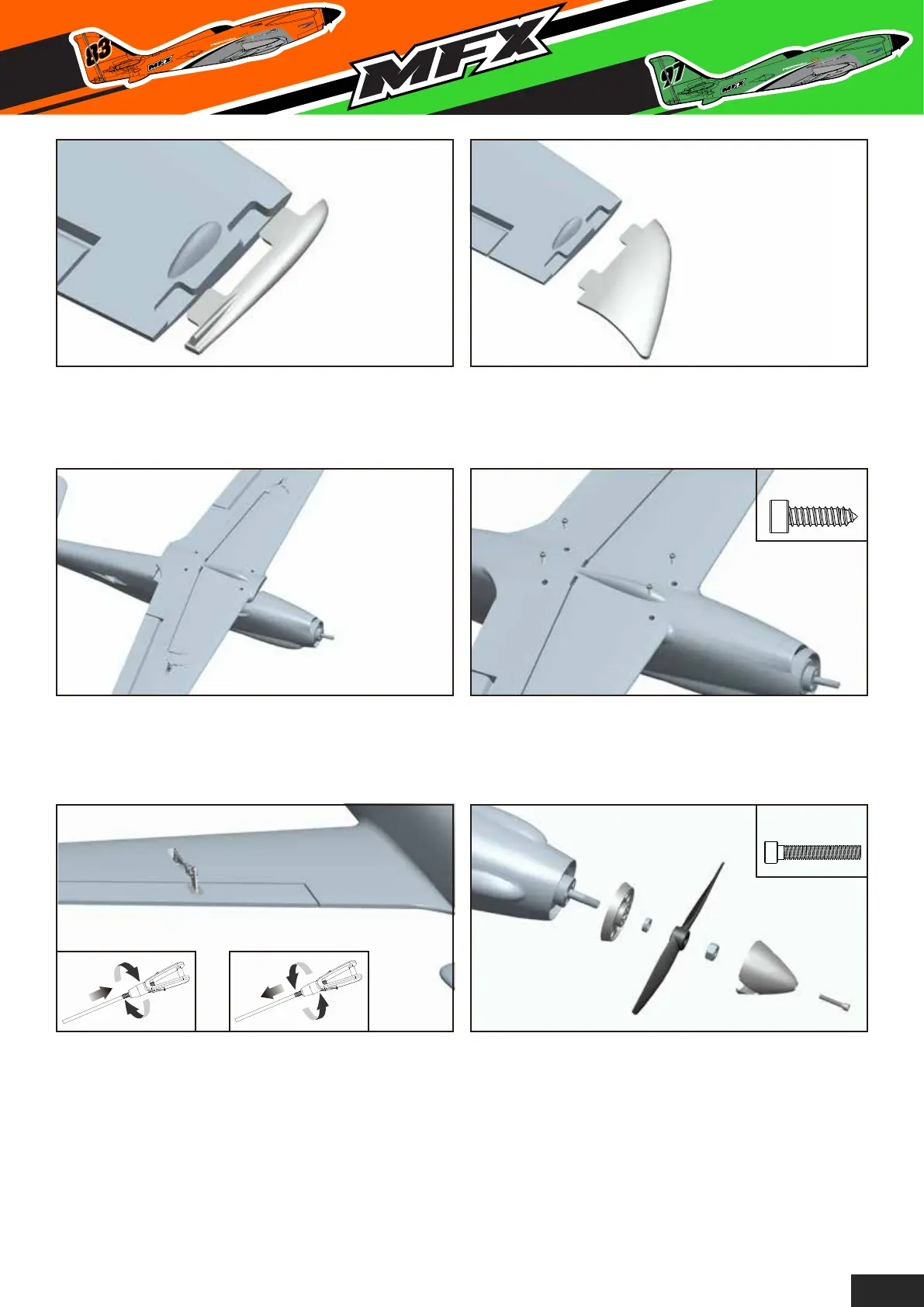

There are 2 wingspan options available for the
MFX, this is the clipped 715mm version.
8. This is the 815mm version with the winglets. Both
options are glued on, or if you wish to have them
changeable they can be attached with thin
double-sided tape (3M or similar), or they can be
taped on.
9. Connect the supplied Y-lead to the aileron servo
connectors, then postion the wing onto the
fuselage wing seat.
10.
Secure the wing into place using the four 2.3 x
8mm self-tapping screws provided.
11.
Ensure the aileron servos are at neutral and
attach the aileron pushrods. Adjust the clevises
as required to ensure the ailerons are neutral.
12. The prop and spinner can be attached at this
stage, but we recommend that you make sure
you have finished setting up your radio and
servos before fitting. To fit the prop and spinner,
slide the spinner backplate onto the prop adaptor
first, then the washer and prop, and secure with
the prop nut. Then fit the spinner over the prop
and secure the spinner using the supplied
2.5M x 18mm hex-head screw.
2.3x8
2.5x18
