Note: It is recommended that you balance the prop and spinner before
installing for optimum performance and efficiency.

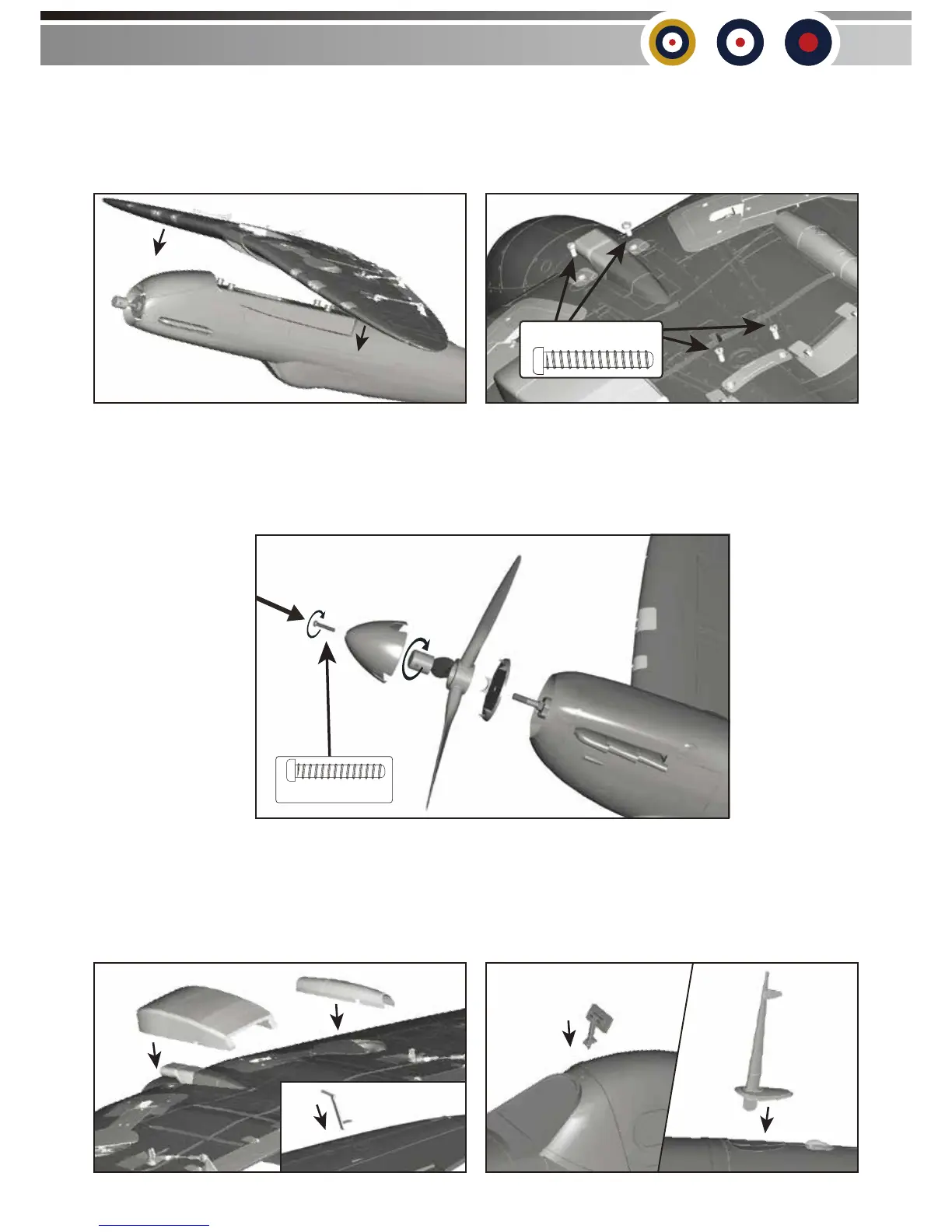

6. Offer the wing up to the fuselage and ensure the servo wires pass through into the battery area
of the fuselage (A). Check again that no servo wires are caught between the wing and fuselage
before securing in place using the four 3x10mm bolts supplied (B)
7. Slide the spinner back plate onto the motor shaft making sure the ‘hex’ shape opening at the
rear of the plate fits over the ‘hex’ on the base of the shaft. This is followed by the prop and prop
nut. Tighten the prop nut firmly in place then finally screw the spinner in place.
8. With a small amount of contact glue, secure the under wing radiators and pitot tube in place
along with the fuselage aerial and cockpit mirror (A and B).
3x10mm
3 x 20 mm
5
B.
Durafly 1100mm Supermarine
Spitfire Mk1a
