Duratrax 835E - Page 4

4
4
2S
3S 4S
5S
6S
CHARGER
4S LIPO BATTERY
1
1
2
2
+
–
NR
ST
NR
TH
BIND
ST-D/RTH-TRIMST-TRIM
Throttle
Reversing
Switch
Steering
Reversing
Switch
Steering
Trim
Throttle
Trim
Steering
Dual Rate
Forward
Reverse
For
w
a
r
d
R
4
4
3
3
6
6
5
5
4
4

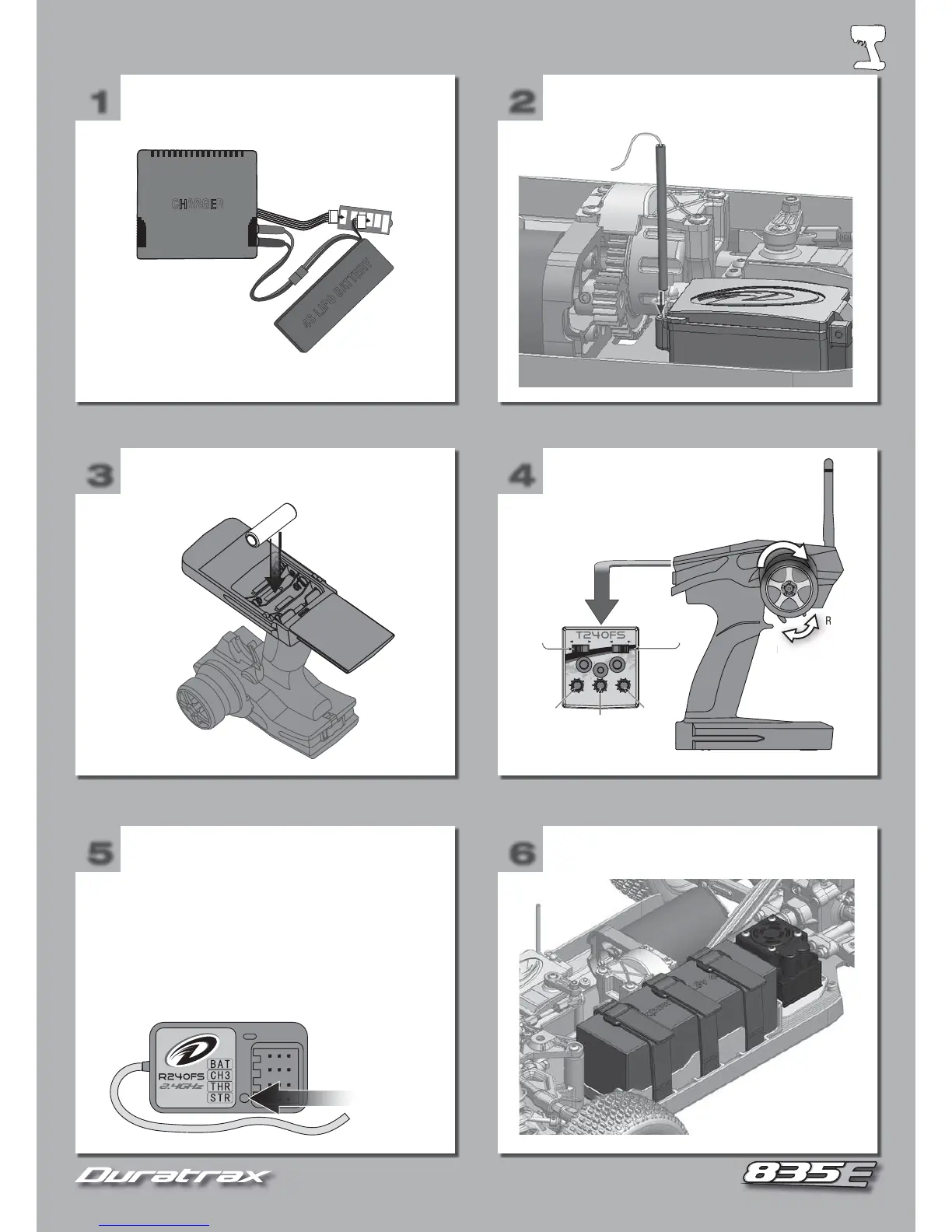

CHARGE THE LIPO
BATTERY
INSTALL TRANSMITTER
BATTERIES
INSTALL RECEIVER
ANTENNA TUBE
FAILSAFE INSTALL/CONNECT LIPO
BATTERY TO ESC
CHECK TRANSMITTER
Note: Never leave a charging
battery unattended! If the
battery swells or becomes
hot, disconnect immediately!
Note: ALWAYS turn on your transmitter
then your ESC. When fi nished ALWAYS
turn off your ESC then your transmitter.
Charge your battery
per the manufacturer’s
specifi cations.
Install (4) AA batteries.
Important: When not
in use, disconnect your
battery from the ESC.
Route the antenna.
To set:
1. Power up the transmitter and receiver.
2. Hold the buggy so the wheels are off the ground and clear
of all objects.
3. With the transmitter throttle in neutral, press the failsafe set
button on the receiver. The receiver LED will fl ash to indicate
a new failsafe point
has been set.
The R240FS receiver has a build in failsafe. If the
receiver loses contact with the transmitter, it will
automatically return the throttle to a preset point.
Failsafe Set
Button
