Durst F60 - Checking out

1.0.0. General
The F
60 is an efficient amateur enlarger
of compa'ct design for negative sizes
up to
2' /4 X 2'/4 inches (6 x 6 cm), with
a special negative
carrier (available as
an accessory) for 24 x 36 mm negatives.
The basic
outfit is complete an 'd ready
for use without further accessories.
The F
60 provides full individual control
of every enlargement - 'b ' lack -and- white
or co'iour. The step~by-step guide of
section 8.0. 0. includes hints for beginners.
2.0.0. The
outfit
2.1.0. Checking out
The Durst F 60 is supplied in a special
protective packing. Before assembly
wipe
all components carefully with a cloth.
Note: Unpack the
enlarger head carefully
so that the
filter drawer does not drop
out. First check that everything is ther e.
To make the assembly instructions
clearer , all components and the main
controls are numbered. The separate
units to be assembled are in
addition
marked • .

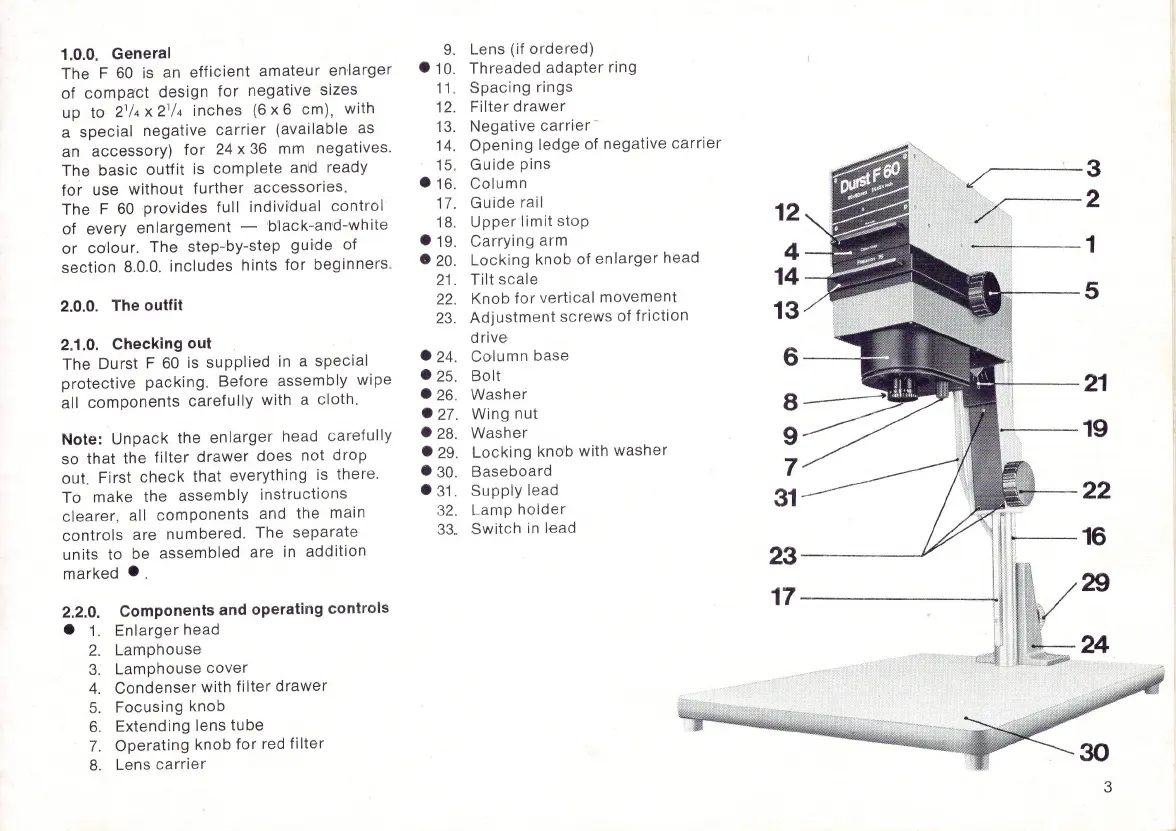

2.2.0 .
• 1.
Components and operating controls
Enlarger head
2. Lamphouse
3. Lamphouse cover
4.
Condenser with filter drawer
5.
6.
Focusing knob
Extending lens
tube
7. Operating knob for red filter
8. Lens carrier
9. Lens (if ordered)
.10. Threaded adap ter ring
11 . Spacing rings
12. Filter drawer
13. Negative carrier -
14. Opening ledge of negative carr ier
15 . Guide pins
.16 . Column
17 . Guide rail
18 . Upper limit stop
.19 . Carrying arm
.20. Locking knob of enlarger head
21 . Ti It scale
22 . Knob for vertical movement
23 . Adjustment screws of friction
drive
.24 . Co lumn base
.25 . Bolt
.26 . Washer
.27. Wing nut
.28. Washer
.29 . Locking knob with washer
•
30. Baseboard
. 31. Supply lead
32. Lamp
holder
33. Switch in lead
