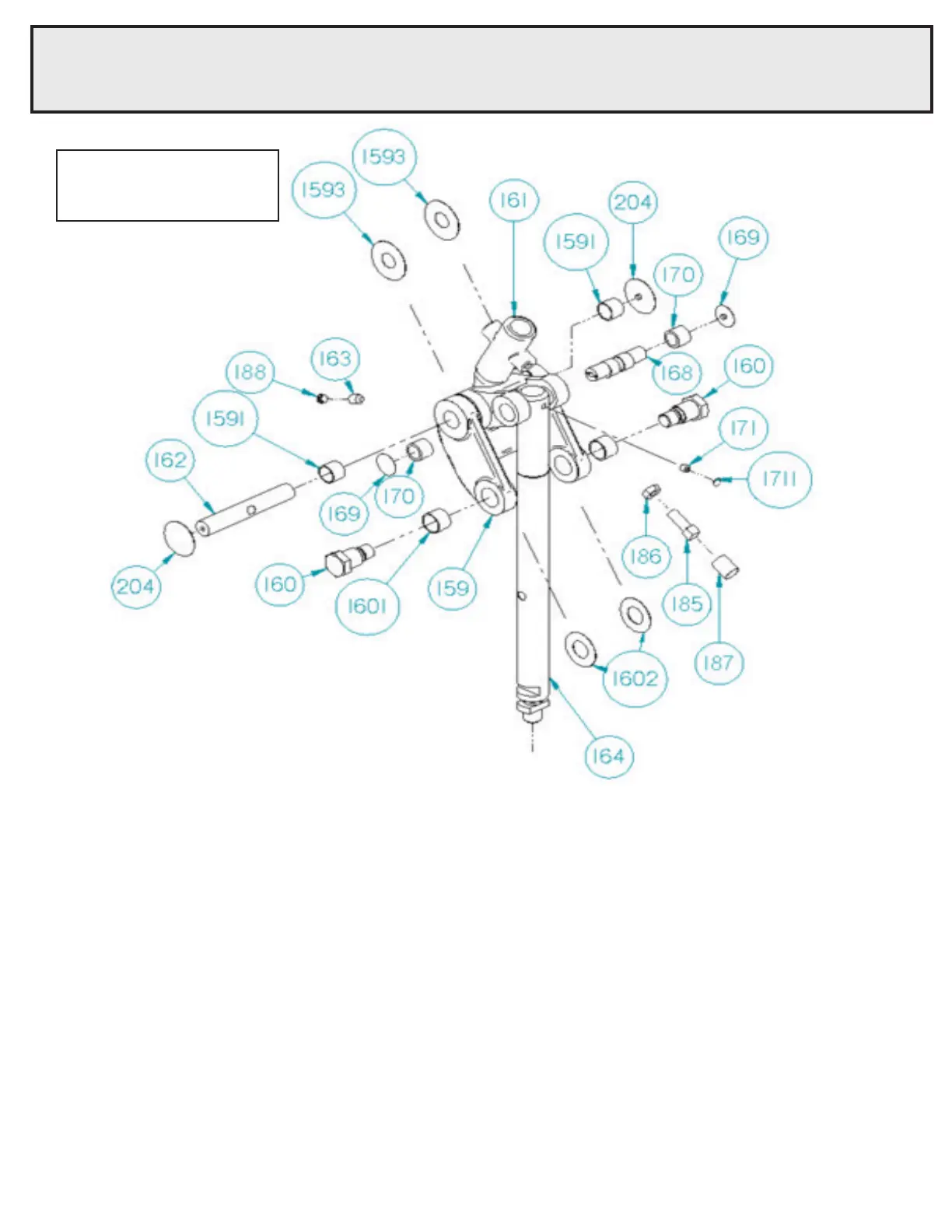

RAM ASSEMBLY DRAWING
Item Qty. Description Part Number
159 1 Pivot Arm B4-044-0016-P
160 2 Pivot Bolt A4-033-0008
161 1 Ram Lever B4-045-0029-P
162 1 Shaft, Pivot Arm A4-053-0080
163 3 Skt Set Screw, Knurled Cup Pt. 32-Y-0805
164 1 Ram B4-064-0022
168 1 Ram Pin A4-066-0025
169 2 Plug, Ram Pin Ends A4-139-0024
170 2 Bushing, Ram P4-909-0020
171 1 Skt Set Screw 29-Y-0603
185 1 Sq Hd Set Screw 30-E-0810
186 1 Hex Jam Nut 45-E-08
187 1 Shrink Tubing P4-921-0035
188 1 Plug, Set Screw A4-139-0026
204 2 Cover, Shaft End A4-063-0002
1591 2 Bushing P4-909-0015
1593 2 Spacer A4-021-0011
1601 2 Bushing P4-909-0016
1602 2 Spacer Washer A4-021-0010
1711 1 Plug, Ram Pin Ends A4-139-0007
19
RAM ASSEMBLY PARTS
Note: See Page 2 for
Handle, Grip, Set Screw
and Plug part numbers.
