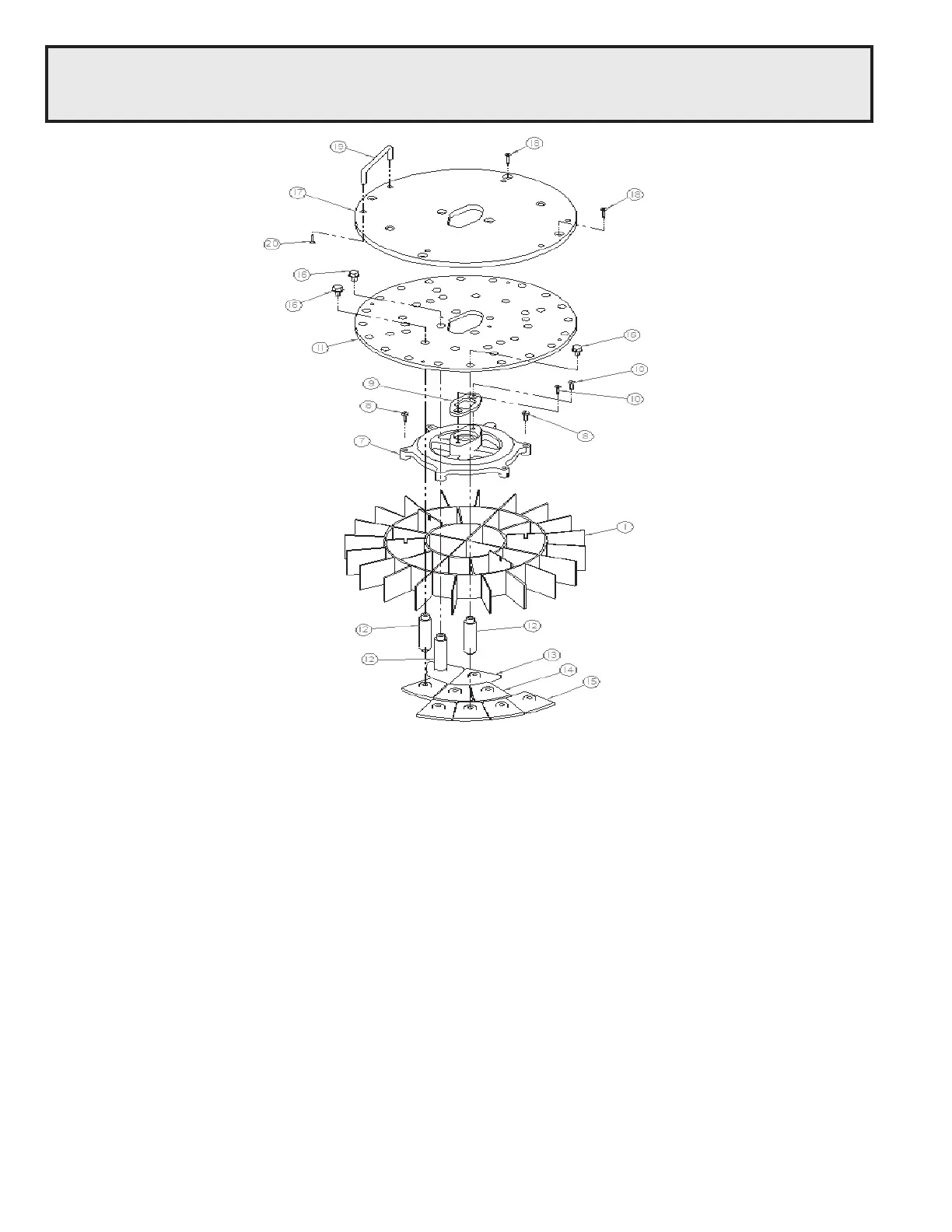

36-PART DIVIDER HEAD ASSEMBLY DRAWING
36-Part Divider Head Assembly Parts
Item Qty. Description Part Number
1 1 36-Part Divider B4-141-0012
7 1 Divider Plate, 36 & 18 - Part C4-147-0061
8 4 Fil. Hd. Slotted Mach. Screw 23-E-0406
9 1 Keeper A4-109-0006
10 2 Flat Head Phillips Mach. Screw 22-E-0405
11 1 Plug Plate, 36 & 18 - Part B4-147-0063-P
12 36 Stems for Plug A4-054-0004
13 4 Inside Plug, 36-Part A4-139-0015
14 12 Intermediate Plug, 36-Part A4-139-0016
15 20 Outside Plug, 36-Part A4-139-0017
16 36 Hex Hd. Washer Type Cap Screw P4-927-0113
17 1 Cover Plate, 36 & 18 - Part B4-147-0064-P
18 6 Flat Hd. Ph. Mach. Screw 22-E-0406
19 2 Handle P4-939-0010
20 4 Flat Hd. Slotted Mach Screw 22-E-0204
2 36-Part Dough Pallet (Not Shown) C4-150-0003
27
