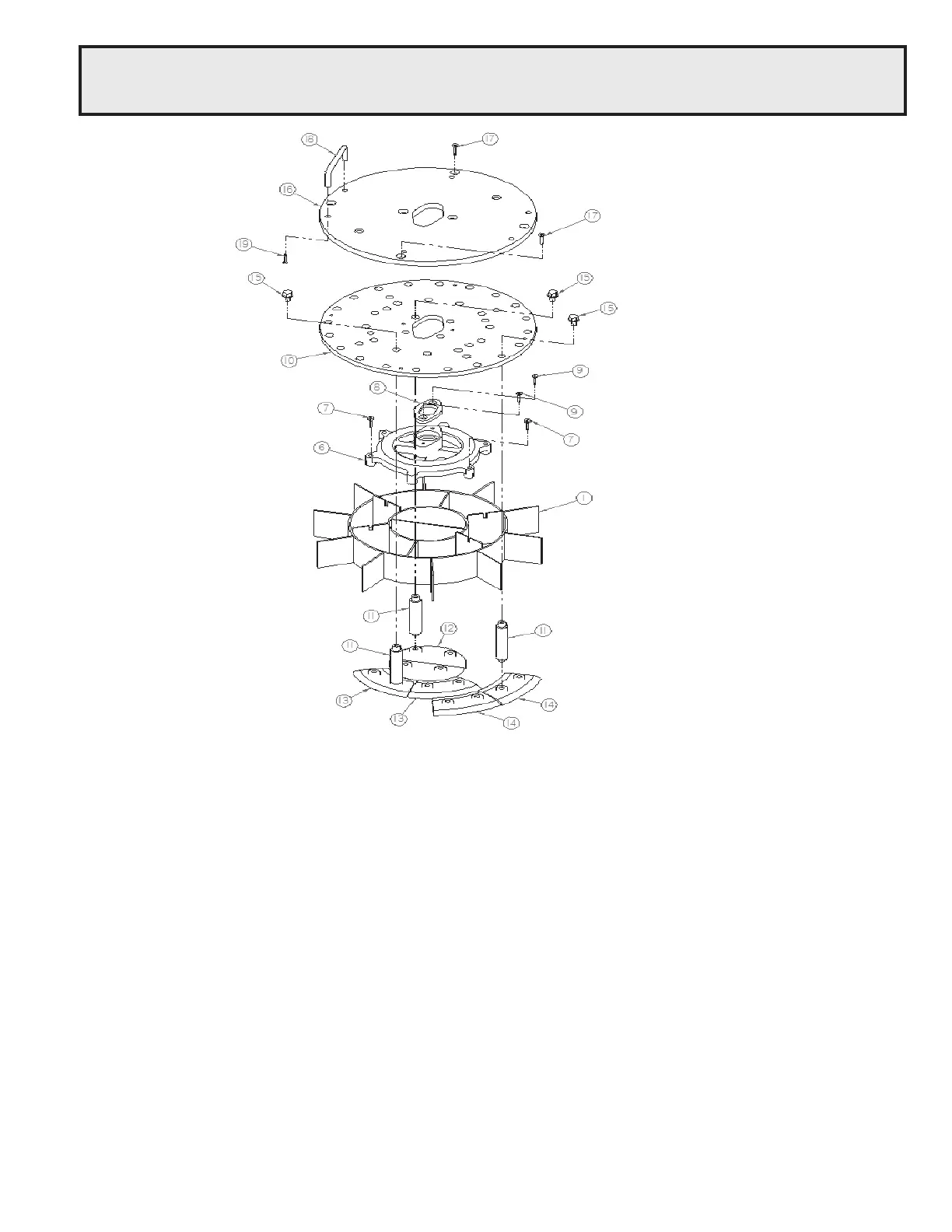

18-PART DIVIDER HEAD ASSEMBLY DRAWING
18-Part Divider Head Assembly Parts
Item Qty. Description Part Number
1 1 18-Part Divider B4-141-0013
6 1 Divider Plate, 36 & 18 - Part C4-147-0061
7 4 Fil. Hd. Slotted Mach. Screw 23-E-0406
8 1 Keeper A4-109-0006
9 2 Flat Head Phillips Mach. Screw 22-E-0405
10 1 Plug Plate, 36 & 18 - Part B4-147-0063-P
11 36 Stems for Plug A4-054-0004
12 2 Inside Plug, 18-Part A4-139-0012
13 6 Intermediate Plug, 18-Part A4-139-0013
14 10 Outside Plug, 18-Part A4-139-0014
15 36 Hex Hd. Washer Type Cap Screw P4-927-0113
16 1 Cover Plate, 36 & 18 - Part B4-147-0064-P
17 6 Flat Hd. Ph. Mach. Screw 22-E-0406
18 2 Handle P4-939-0010
19 4 Flat Hd. Slotted Mach Screw 22-E-0204
2 18-Part Dough Pallet (Not Shown) C4-150-0002
