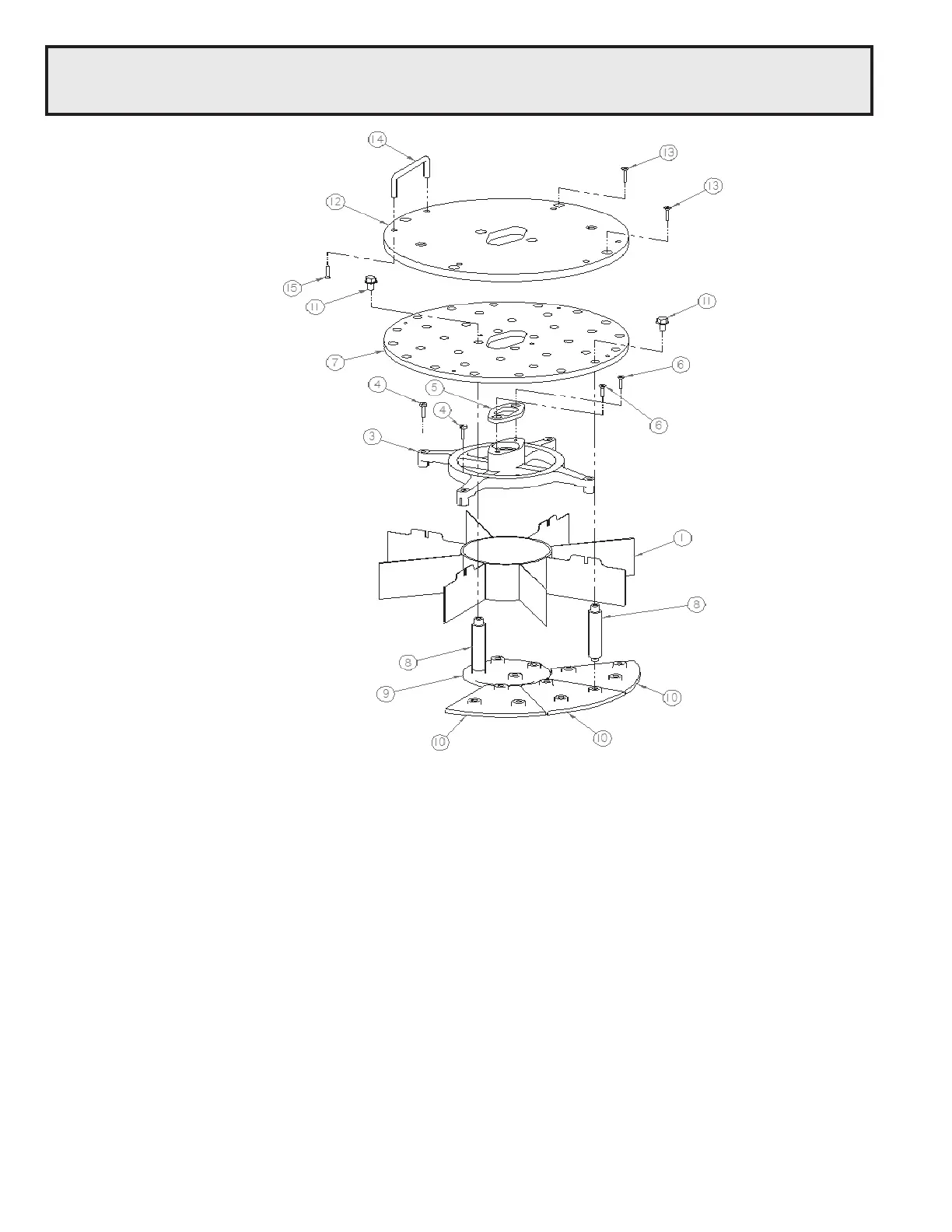

9-PART DIVIDER HEAD ASSEMBLY DRAWING
9-Part Divider Head Assembly Parts
Item Qty. Description Part Number
1 1 9-Part Divider B4-141-0014
3 1 Divider Plate, 9 - Part C4-147-0057
4 4 Fil. Hd. Slotted Mach. Screw 23-E-0406
5 1 Keeper A4-109-0006
6 2 Flat Head Phillips Mach. Screw 22-E-0405
7 1 Plug Plate, 9 - Part B4-147-0059-P
8 28 Stems for Plug A4-054-0004
9 1 Inside Plug, 9 - Part A4-139-0018
10 8 Outside Plug, 9 - Part A4-139-0019
11 28 Hex Hd. Washer Type Cap Screw P4-927-0113
12 1 Cover Plate, 9 - Part B4-147-0060-P
13 6 Flat Hd. Ph. Mach. Screw 22-E-0406
14 2 Handle P4-939-0010
15 4 Flat Hd. Slotted Mach Screw 22-E-0204
2 9-Part Dough Pallet (Not Shown) C4-150-0001
29
