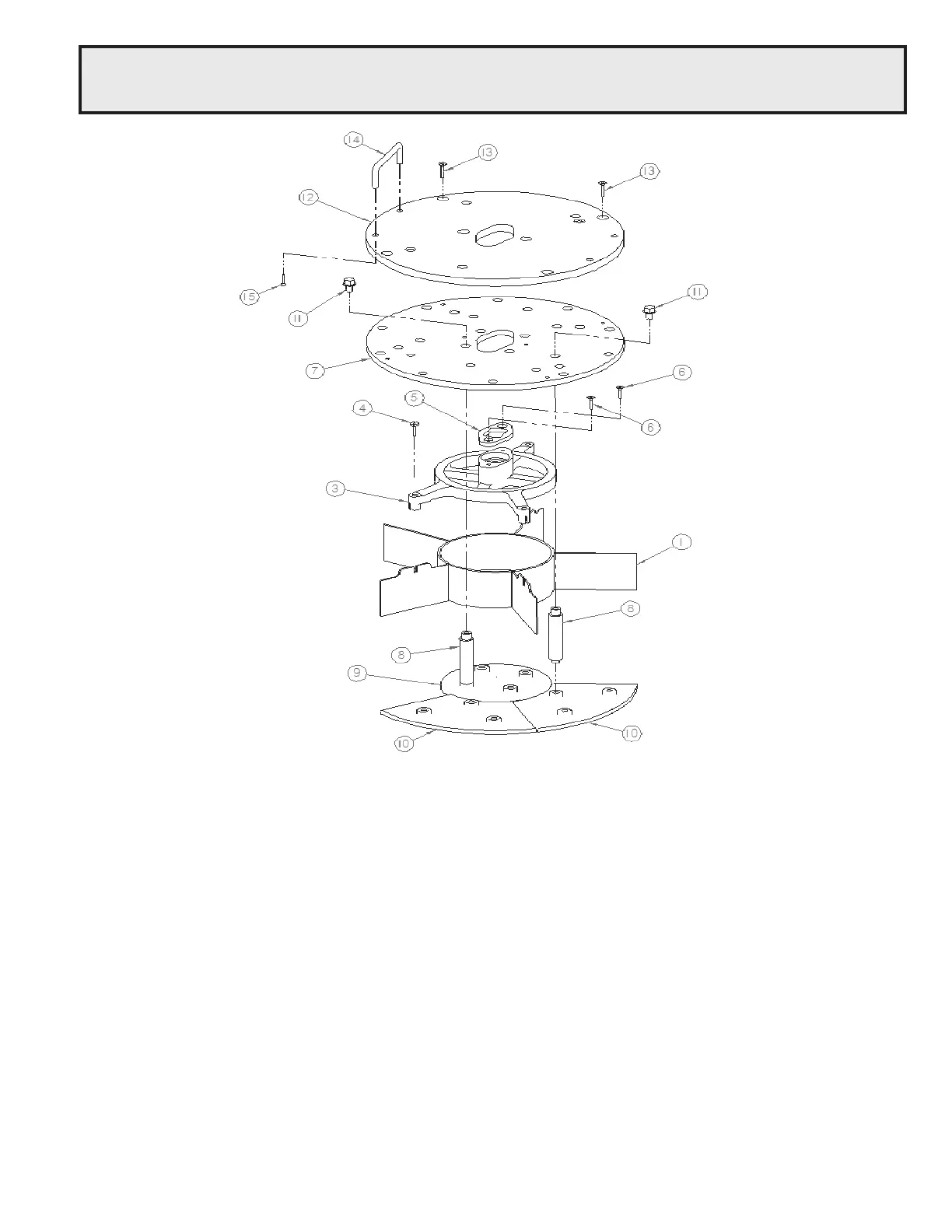

6-PART DIVIDER HEAD ASSEMBLY DRAWING
6-Part Divider Head Assembly Parts
Item Qty. Description Part Number
1 1 6-Part Divider B4-141-0015
3 1 Divider Plate, 6 - Part C4-147-0065
4 3 Fil. Hd. Slotted Mach. Screw 23-E-0406
5 1 Keeper A4-109-0006
6 2 Flat Head Phillips Mach. Screw 22-E-0405
7 1 Plug Plate, 6 - Part B4-147-0067-P
8 19 Stems for Plug A4-054-0004
9 1 Inside Plug, 6 - Part A4-139-0020
10 5 Outside Plug, 6 - Part A4-139-0021
11 19 Hex Hd. Washer Type Cap Screw P4-927-0113
12 1 Cover Plate, 6 - Part B4-147-0068-P
13 6 Flat Hd. Ph. Mach. Screw 22-E-0406
14 2 Handle P4-939-0010
15 4 Flat Hd. Slotted Mach Screw 22-E-0204
2 6-Part Dough Pallet (Not Shown) C4-150-0004
