Final Assembly (Electrical) Parts
Item Qty. Description Part Number
10 2 Square Hd. Set Screw 30-E-0812
20 2 Hex Jam Nut 45-E-08
30 1 Motor Base Sub-Assembly B4-436-0020
31 4 Hex Hd. Cap Screw 11-E-0508
32 4 Hex Nut 41-E-05
33 4 Intl. Tooth Lock Washer 64-H-05
34 4 Flat Washer 61-E-05
40 1 Motor (Standard Electrical, 208-240v/60hz/3ph) P4-923-0004
Call for Part Number of other electrical
50 1 Sheave (60 HZ) P4-951-0004
Sheave (50 HZ) P4-951-0009
52 2 V-Belt P4-951-0010
70 2 Side Panel Sub-Assembly A4-436-0046
80 1 Rear Panel Sub-Assembly A4-436-0047
120 1 Front Canopy C4-151-0005
130 1 Rear Canopy C4-151-0006
Item #’s 53, 54, 55, 56, 57, 59, 60, 64 Call factory for part numbers

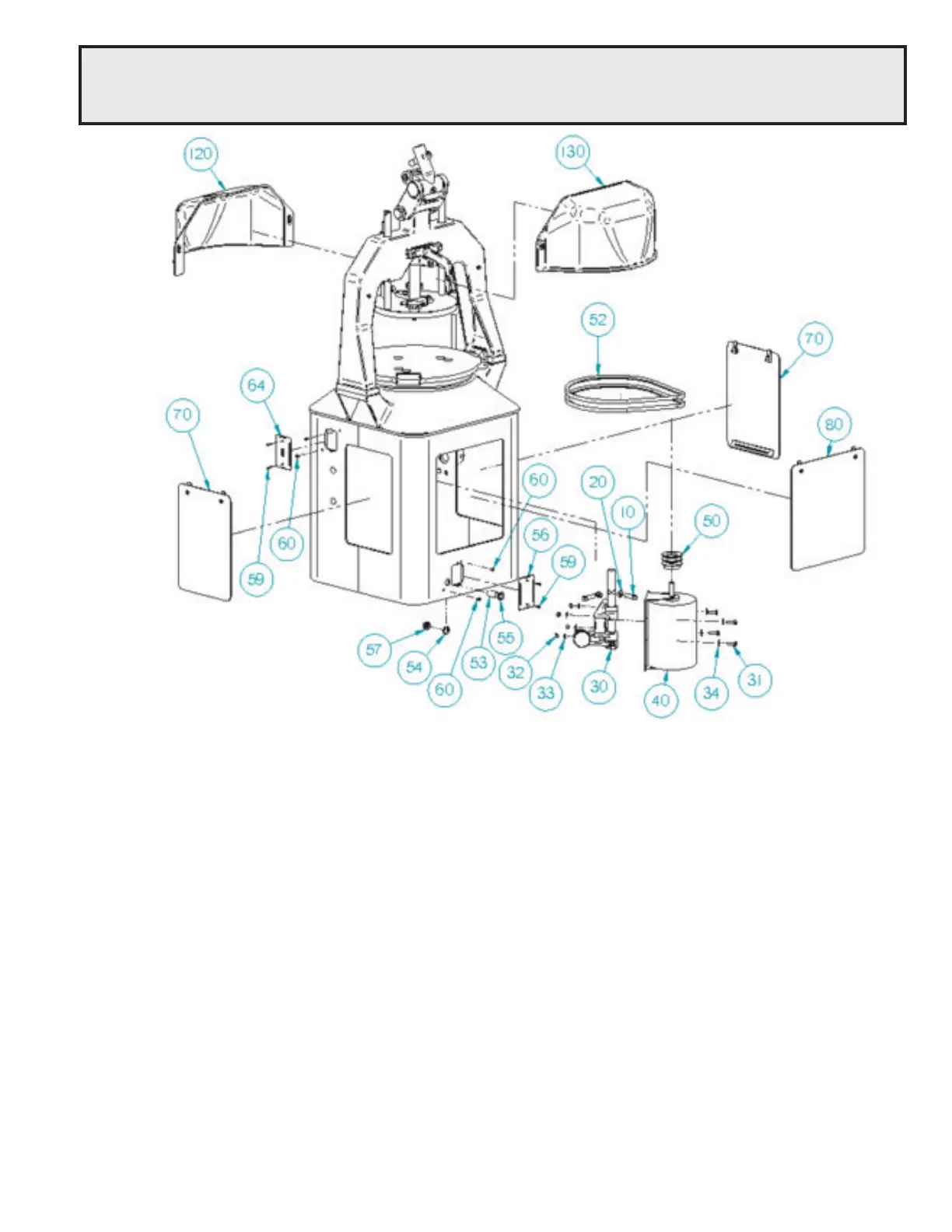

FINAL ASSEMBLY DRAWING
26
