TRIP PLATE SUB-ASSEMBLY PARTS
Item Qty. Description Part Number
109 1 Trip Plate, Expandable Pocket B4-147-0090-P
110 1 Trip Spring Sub-Assembly A4-436-0041
111 2 Pin 73-E-0816
112 1 Trip Lever B4-045-0068
113 1 Slotted Shoulder Screw 83-E-0301
115 1 Slotted Shoulder Screw 83-E-0804
117 2 Trip Plate Knob Sub-Assembly A4-436-0043
118 1 Knob P4-939-0036
119 1 Locating Pin P4-935-0129

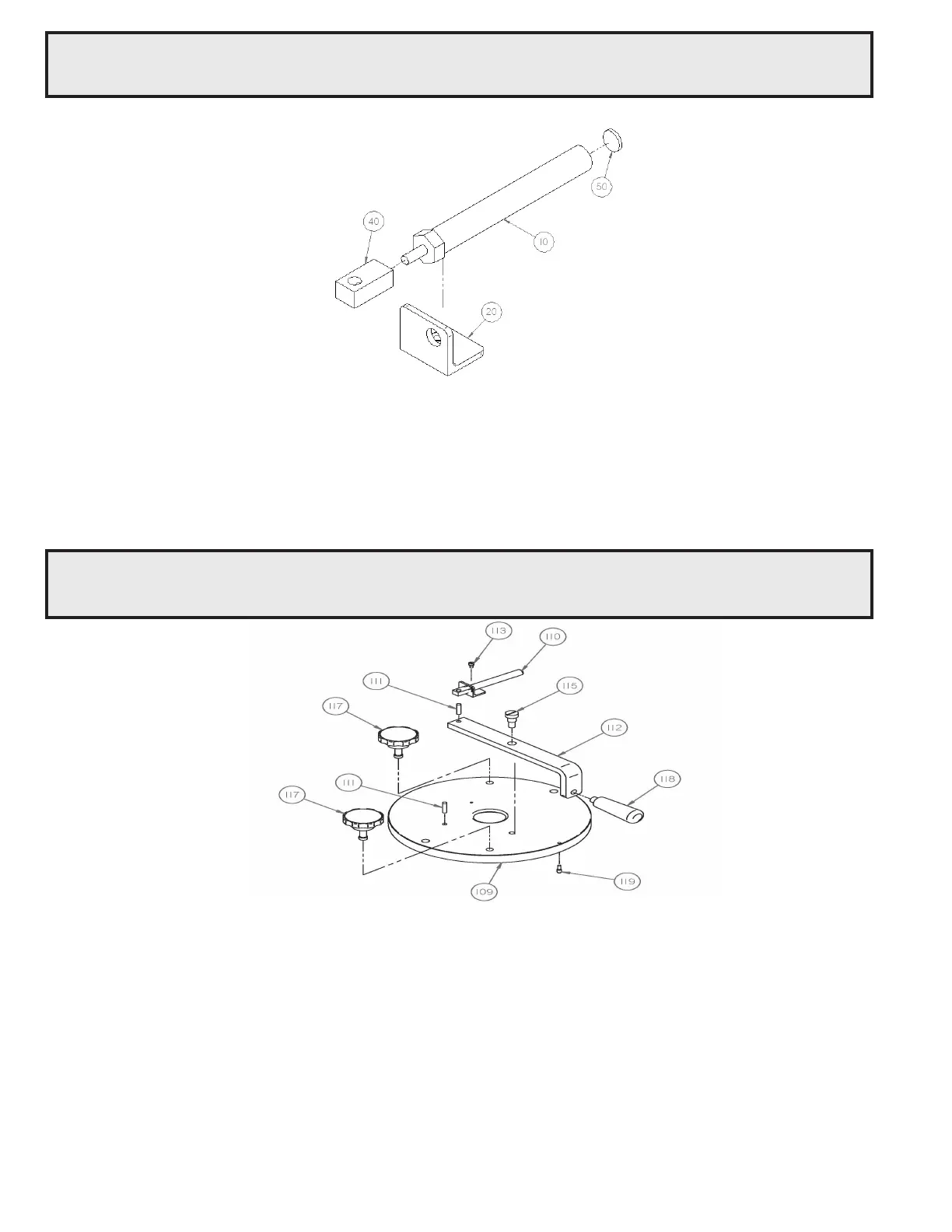

TRIP SPRING SUB-ASSEMBLY DRAWING
TRIP SPRING SUB-ASSEMBLY PARTS
Item Qty. Description Part Number
10 1 Cylinder P4-919-0002
20 1 Mounting Bracket A4-091-0127
40 1 Rod End A4-127-0002
50 1 Filter P4-935-0017
TRIP PLATE SUB-ASSEMBLY DRAWING
