Manual RMO-H
M-RH00NN-300-EN 8
CAUTION: For protection against parasitic currents or voltages, always connect the
RMO-H protective earth connector to the protective earth (PE).
Please use only the manufacturer provided cable.
For safety reasons, always establish the protective earth connection before
establishing any other connection, and remove this connection as the very last step.
Voltage terminals
Voltage sense cable terminal connecting the voltage sense test cable.
Charger Connector
The connector for charging the internal battery.
Operator Control
2.8 inches color touch-screen display
Displays the settings as well as the measured values during and after a test operation.
Keyboard
3. Getting Started
3.1 Connecting RMO-H to Test Object
NOTE: Cables should be connected and removed to/from RMO-H device ONLY
when the RMO-H is switched off.
CAUTION: Always connect the measuring cables to the RMO-H first and then to the
test object; and when disconnecting, always disconnect the cables from the test
object first and after that from the RMO-H. The grounding wire PE should be
disconnected last. Failure to do this may result in a serious injury or even a loss of
life.
Use this button to turn on/off the device.
Use the button to start the test.
Use the ENTER button to confirm the defined
test parameters, language, time, date and
limits.
Use the UP/DOWN buttons to navigate
through active menu.
Use the MEM button to go to Memory Menu.
Use the SET button to go to Settings Menu.

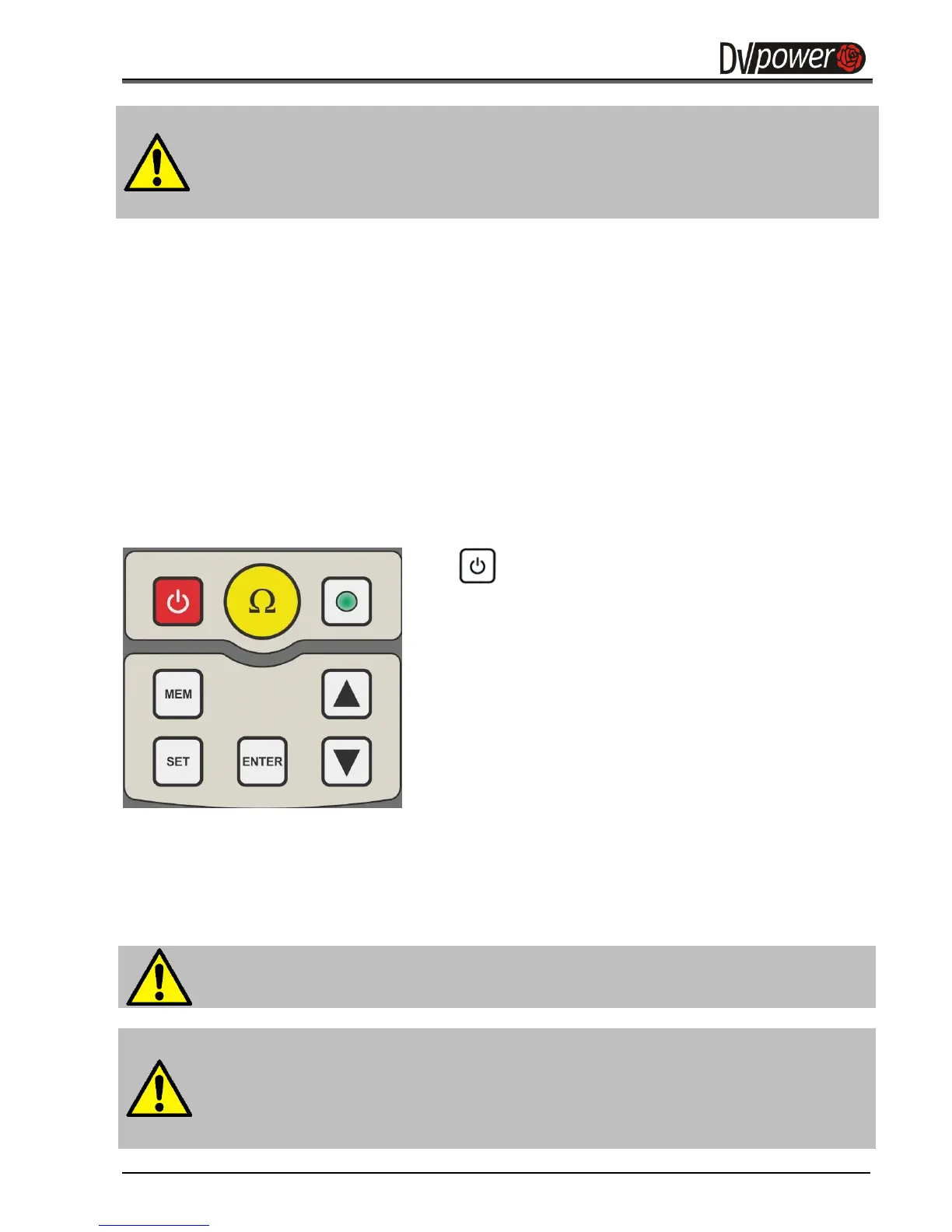

Figure 2-4:
Keyboard
