DV Systems D20 User Manual

D20, D20VSD, D20TD, D20TDVSD-C
Feb ‘14
- 8 -
Installation – Mechanical (cont’d)

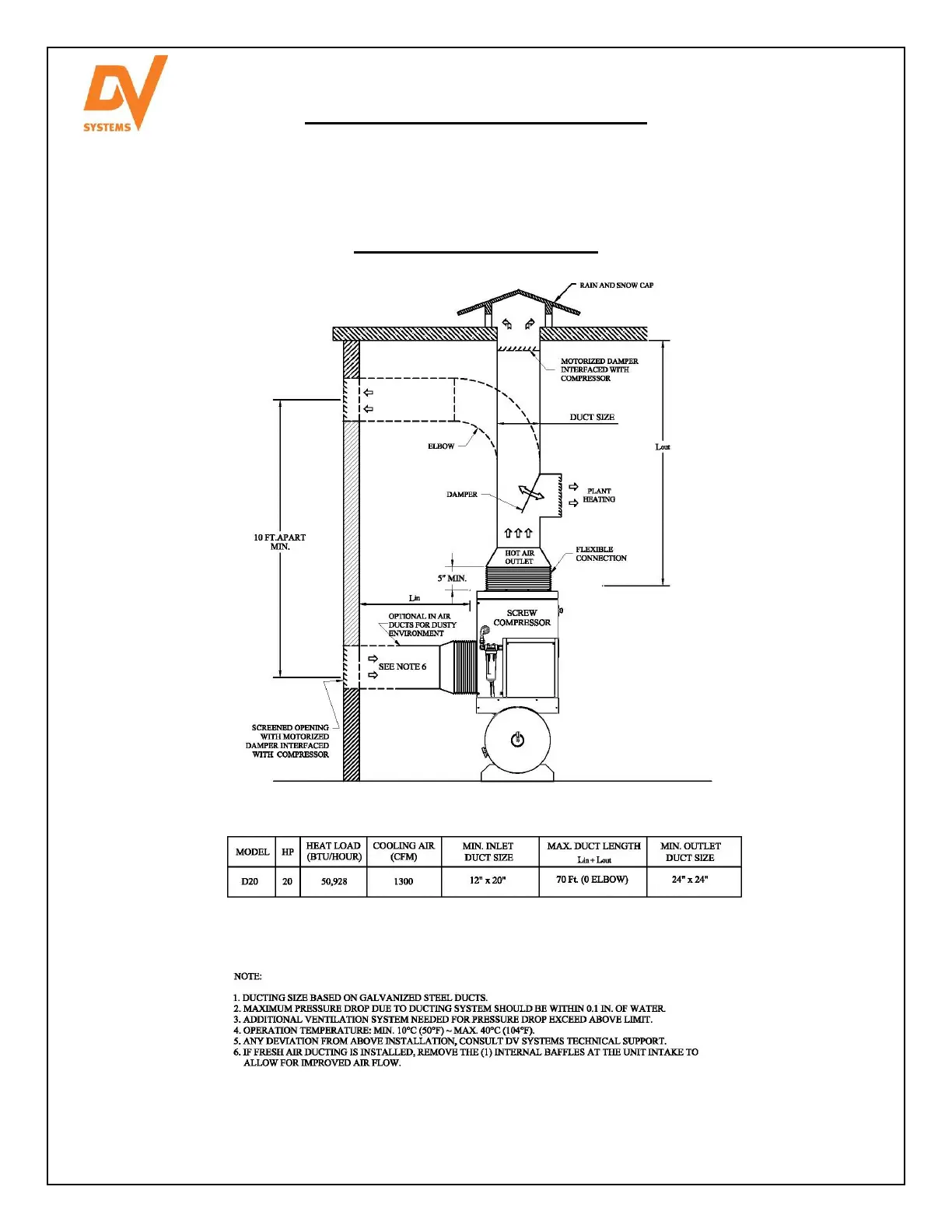

Shown below are items which assist in making a good installation. These are both intake and exhaust ductwork,
helping the Unit to a) draw in clean outside air and b) exhaust the warmer air away from the Unit. The warmer air
may be used, with the inclusion of a damper in the exhaust ducting, to warm the interior of the building during the
colder months of the year.
Intake and Exhaust Ducting
