DV Systems G20 User Manual

1
2
3
4
5
6
7
8
9
10
11
12
13
14
17
18
20
19
25
24
5
23
21
22
16
26
22
21
16
15
30
29
28
40
39
14
38
37
41
34
35
42
43
14
33
44
27
33
14
49
48
47
46
45
52
51
50
31
14
33
14
33
M3
M2
M1
36
32
50
ITEM NO. PART NUMBER DESCRIPTION QTY.
1 DSC-001961 G-SERIES AIR FILTER 1
2 DSC-001962 G-SERIES INTAKE FILTER CLAMP 1
3 DSC-001965 G-SERIES INTAKE VALVE COLLAR 1
4 SS-10114 M10 X 30MM HHCS 4
5 SS-1525 3/8" FLAT WASHER 7
6 DSC-001960 G-SERIES INTAKE VALVE 1
7 DSC-002044 O-RING AIR END-INTAKE VALVE 1
8 DSC-001186 AIR END G-SERIES 1
9 DSC-200 BONDED WASHER 1/2" BSPP 1
10 DSC-001214 ADAPTER 1/2"BSPP - JIC 8 1
11 DSC-001907 OIL SIGHT GLASS 3/4" BSPP 1
12 DSC-002259 COPPER WASHER 3/4"BSPP WD 1
13 DSC-618 OIL FILL PLUG 3/4" BSPP 1
14 DSC-120 BONDED WASHER 3/4" BSPP 6
15 DSC-001393-2 AIR/OIL RECEIVER G-SERIES II 1
16 DSC-001146 G20-30 FLEXI HOSE GASKET 2
17 R-8504 PE TUBING 1/2" OD 1
18 DD-00091 3/8"NPT X 1/2"DIA PNEU. FITTING 1
19 DSC-002828 BALL VALVE 3/8" NPTF X 3/8" NPTF 1
20 DSC-002826 ADAPTER 3/8"NPT(M) - 3/8"NPT(M) 1
21 DSC-244 M12 HC LOCKWASHER 8
22 DSC-294 M12-1.75 X 30 SHCS 8
23 DSC-001330 VIBRATION ISOLATOR 3
24 SS-1502 3/8" LOCKWASHER 3
25 SS-657 3/8-16 HEX NUT 3
26 DSC-002880 FLEXI-HOSE G-SERIES II 1
27 DSC-002884 3/4 STEEL TUBE OIL FROM COOLER 1
28 DSC-002887 3/4 STEEL AIR OUT 1
29 DSC-124 ADAPTER 1-1/4"BSPP(M) - JIC 12 1
30 DSC-002724 O-RING C-SERIES THERMOVALVE INLET 1
31 DSC-002882 O-RING G-SERIES A/O INLET 1
32 DSC-122 BONDED WASHER 1-1/4"BSPP 1
33 DSC-121 ADAPTER R3/4" - JIC12 4
34 SS-01926 3/8-16 X 1-3/4 SHCS 4
35 DSC-624 OIL FILTER 1
36 DSC-002881 MANIFOLD ASSEMBLY G-SERIES II 1
37 DSC-628 MANIFOLD SCAVENGE LINE O-RING 1
38 DSC-288 MANIFOLD ASSEMBLY O-RING 1
39 DSC-567 ADAPTER R3/4" - JIC8 1
40 DSC-002886 1/2 STEEL TUBE OIL RETURN 1
41 DSC-001667 COPPER SEALING RING 1/8"BSPP 2
42 DSC-001235 G20-30 SEPARATOR TUBE 1
43 DSC-001148 AIR/OIL SEPARATOR FILTER 1
44 DSC-002883 3/4 STEEL TUBE OIL TO COOLER 1
45 DSC-001150 HEAT EXCHANGER 1
46 SS-725 5/16" HEX NUT 6
47 SS-1503 5/16" LOCKWASHER 6
48 SS-1524 5/16" FLAT WASHER 12
49 SS-159 5/16-18 X 3.75" HHCS 6
50 DSC-002151 ADAPTER 1"NPT(M) - JIC 12 2
51 DSC-002888 3/4 STEEL TUBE DRYER INLET 1
52 DSC-237 ADPTR 3/4"NPT(M)-JIC12(M) (FLR-MTD ONLY) 1
MAINTENANCE KITS
NO. PART NUMBER DESCRIPTION
M1
DSC-001299
DSC-001234
INTAKE VALVE REPAIR KIT SN >= 37162
INTAKE VALVE REPAIR KIT SN <= 37135
M2 DSC-111-1 THERMO VALVE REPAIR KIT
M3 DSC-231 MINIMUM PRESSURE VALVE REPAIR KIT
---
MK-G20-30-1
MK-G20-30
4000 HOUR MAINTENANCE KIT SN >= 37162
4000 HOUR MAINTENANCE KIT SN <= 37135
IMPORTANT NOTE: This print is the confidential property of DV SYSTEMS, INC. It is not to be used or reproduced
in any manner, nor submitted to other parties for examination without the prior approval of DV SYSTEMS, INC.
SHT NO
DRAWING NO.
N.T.S
G20-30II
DATE
NAME OF PROJECT
SCALE

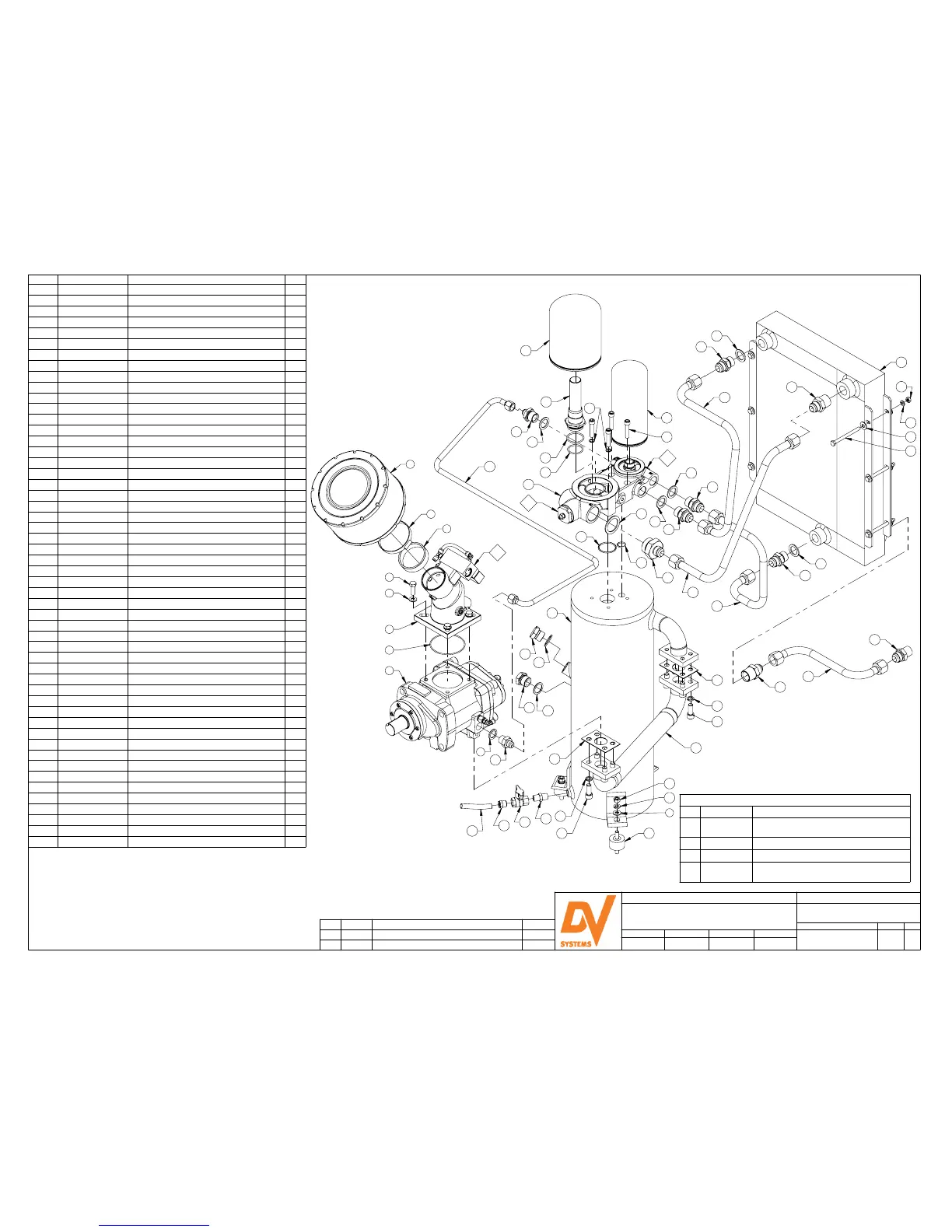

G20-30II SCREW COMPRESSOR
LT
DESCRIPTION OF DRAWING
2/17/17
CHECKED BY
DRAWN BY
REV.
SYSTEM COMPONENTS
D2
PCN NO.
DATE
REVISION DESCRIPTION
REV.
