4
6
7
2
5
3
13
3
1
8
9
10
11
12
14
15
M3
16
17
11
18
19
21
22
23
20
21
26
25
27
28
29
27
24
M2
31
30
M1
M2
FLOW
22
24
MAINTENANCE KITS
NO.
PART NUMBER
DESCRIPTION
M1
DSC-001299
DSC-001234
INTAKE VALVE REPAIR KIT SN >= 37162
INTAKE VALVE REPAIR KIT SN <= 37135
M2
DSC-111-1
THERMO VALVE REPAIR KIT
M3
DSC-231
MINIMUM PRESSURE VALVE REPAIR KIT
M4
DSC-001233
AIR END SHAFT SEAL KIT
---
MK-G20-30-1
MK-G20-30
4000 HOUR MAINTENANCE KIT SN >= 37162
4000 HOUR MAINTENANCE KIT SN <= 37135
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
1
DSC-001186
AIR END G-SERIES
1
2
DSC-001960
G-SERIES INTAKE VALVE
1
3
DSC-381
PNEUMATIC TUBE BLACK 8MM OD
2
4
DSC-002209
INTAKE VALVE CONTROL BLOCK
1
5
DSC-376
PNEUMATIC ELBOW 1/8"BSPP X 8MM
1
6
DSC-002052
SOLENDOID G-SERIES N.C.
1
7
DSC-002872
SOLENOID CABLE G-SERIES
1
8
DSC-263
1/8" BONDED WASHER
1
9
DSC-677
ORIFICE 1MM
1
10
DSC-185
PNEUMATIC ELBOW 1/8"BSPP X 6MM
1
11
DSC-001217
BONDED WASHER 1/4" BSPP
2
12
DSC-001238
TEMPERATURE SENSOR CSC200300
1
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
13
DSC-110
PNEUMATIC TEE 1/4"BSPP X 8MM
1
14
DSC-712
THERMO VALVE CAP
1
15
DSC-711
THERMO VALVE CAP O-RING
1
16
DSC-120
BONDED WASHER 3/4" BSPP
3
17
DSC-567
ADAPTER R3/4" - JIC8
1
18
DSC-001564
ADAPTER 1/4"BSPPM - 1/4"NPTF
1
19
TIA-5165
SAFETY VALVE 1/4" 165 PSI
1
20
DSC-158
PNEUMATIC ELBOW 1/4"BSPP X 6MM
1
21
DSC-427
BONDED WASHER 3/8"
2
22
DSC-278
ADAPTER 3/8"BSPM X 1/4"BSPF
2
23
DSC-377
PNEUMATIC ELBOW 1/4"BSPP X 8MM
1
24
DSC-382
PNEUMATIC TUBE NATURAL 6MM OD
2
ITEM NO.
PART NUMBER
DESCRIPTION
QTY.
25
DSC-002872
SOLENOID CABLE ASSEMBLY G
1
26
DSC-001237
PRESSURE TRANSDUCER CSC200300
1
27
DSC-175
PNEUMATIC STRAIGHT 1/8" X 6MM
2
28
DSC-001358
CHECK VALVE 1/8"NPT(F)
1
29
DSC-612
INLINE FILTER
1
30
DSC-002881
MANIFOLD ASSEMBLY G-SERIES II
1
31
DSC-002717
PLUG 3/8" BSPP
1
IMPORTANT NOTE: This print is the confidential property of DV SYSTEMS, INC. It is not to be used or reproduced
in any manner, nor submitted to other parties for examination without the prior approval of DV SYSTEMS, INC.
SHT NO
DRAWING NO.
N.T.S
G20-30II
DATE
NAME OF PROJECT
SCALE

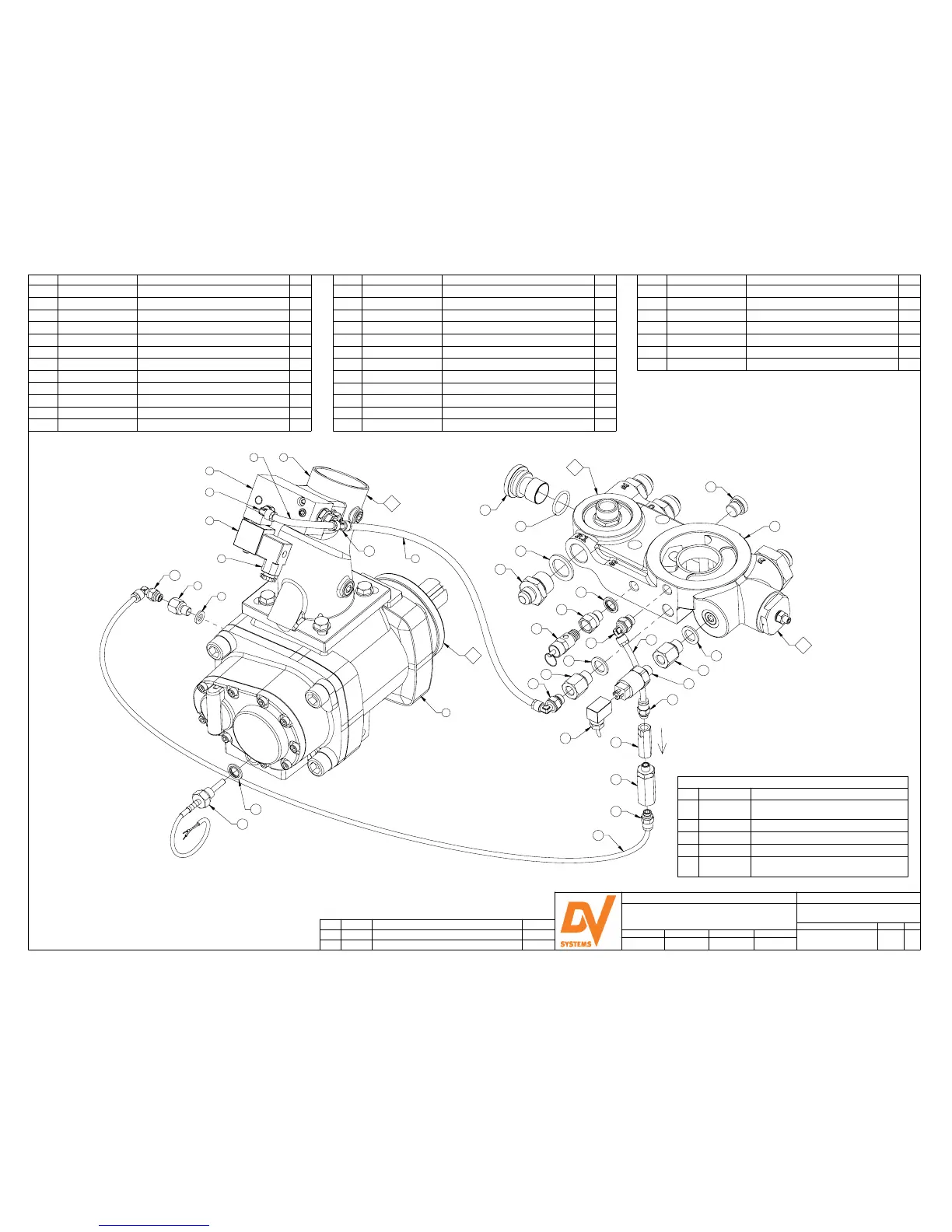

G20-30II SCREW COMPRESSOR
LT
DESCRIPTION OF DRAWING
2/10/17
CHECKED BY
DRAWN BY
REV.
PNEUMATIC COMPONENTS
D3
PCN NO.
DATE
REVISION DESCRIPTION
REV.
