DV Systems G30 User Manual

G2030-II-C
Mar ‘17
- 2 -
18”
[
458 mm
]
36”
[915mm]
18”
[
458 mm
]

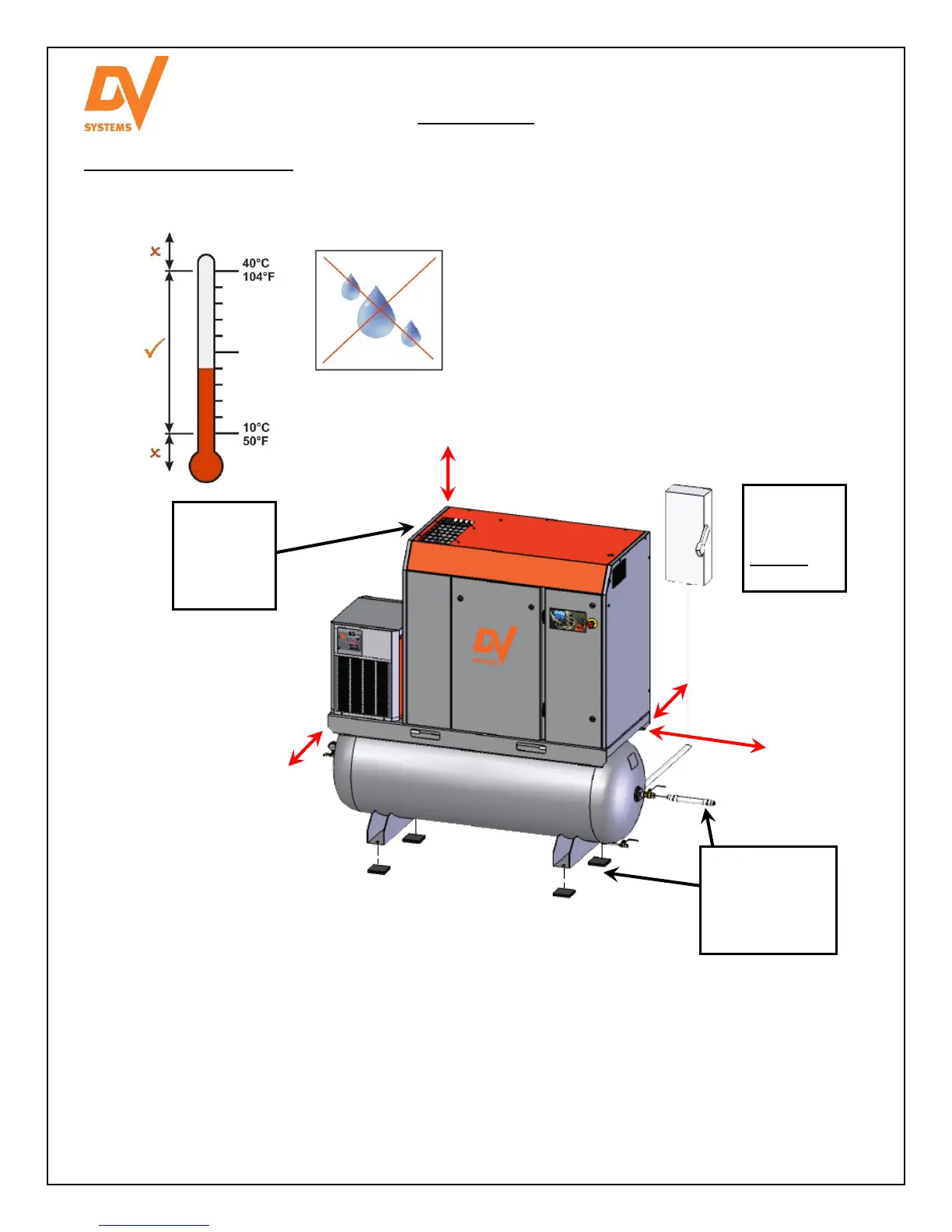

Quick Start
Mechanical Installation.
(Refer to Page 6)
 The Unit should be located in a dry, clean, cool,
dust free, and well ventilated area.
 Allow a minimum 18” (458mm) around and 36”
(915mm) above Unit.
 The ambient temperature should be between
10°C and 40°C (50°F and 104°F).
 Ensure that the floor under the Unit is smooth, level and capable of
bearing the weight of the Compressor.
 If installed in a compressor room, ensure that the room is adequately
ventilated
Note: Dimensions indicated are typical for all variations of ‘G Series’
Units, ie base mounted and horizontal.
18”
[
458 mm
]
Fusible
Disconnect
Refer to
page 11 for
proper sizing
Installation Kit
IK515
Flex-Hose &
Vibration Isolators
(sold separately)
Unit
Nameplate
Model No.
Serial No.
Unit voltage
