G2030-II-C
Mar ‘17
- 8 -
Installation – Mechanical (cont’d)
Shown below and on the following page are items which assist in making a good installation. These are both
intake and exhaust ductwork, helping the Unit to a) draw in clean outside air and b) exhaust the warmer air away
from the Unit. The warmer air may be used, with the inclusion of a damper in the exhaust ducting, to warm the
interior of the building during the colder months of the year.

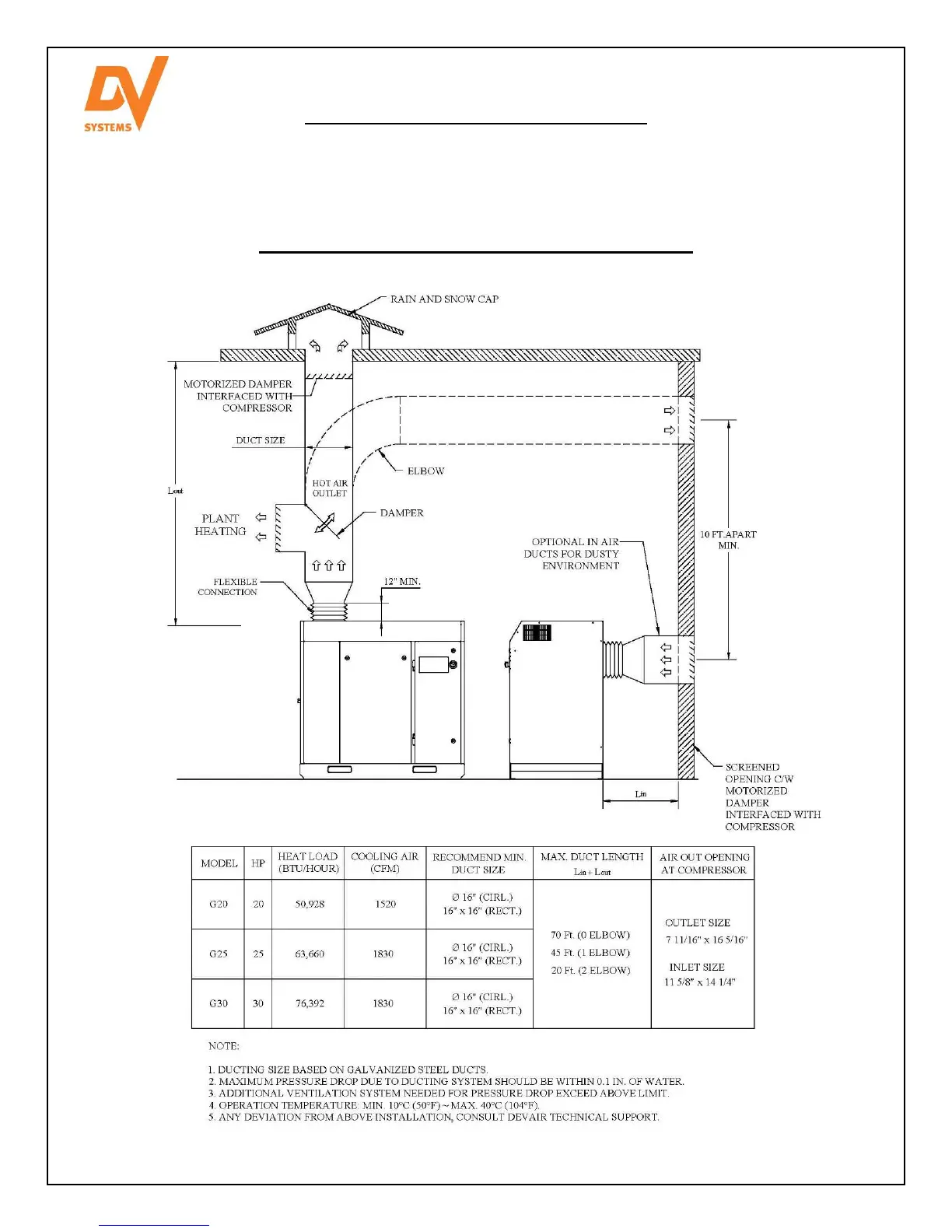

Intake and Exhaust Ducting – Base Mounted Unit
To Next Page
