Quick Start

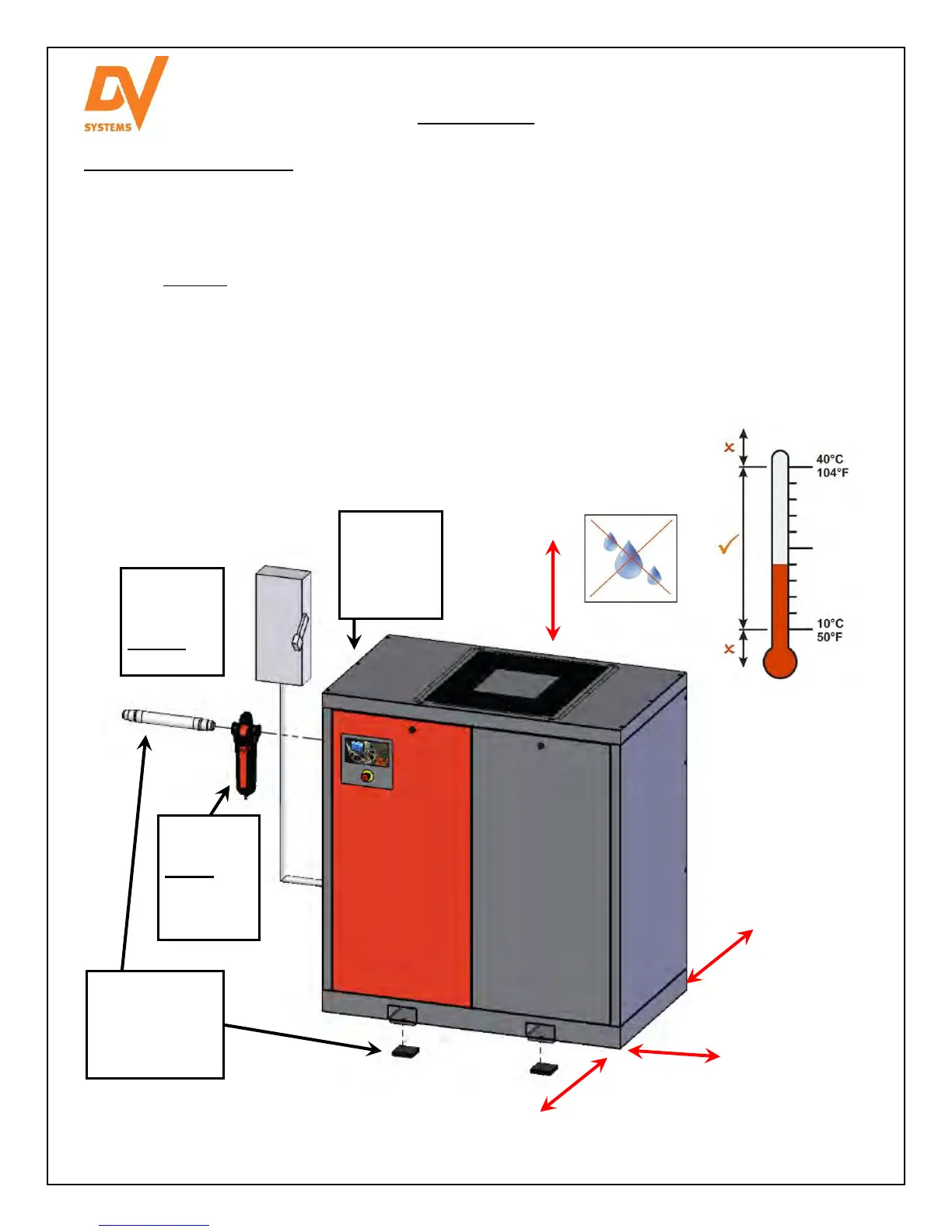

Mechanical Installation.
(Refer to Page 8 to 10)
 The Unit should be located in a dry, clean, cool, dust free,
and well ventilated area.
 Allow a minimum of:
 48” (1220mm) in front of and behind the Unit.
 48” (1220mm) on either side of the Unit, and
 60” (1524mm) above Unit.
 The ambient temperature should be between 10°C and 40°C
(50°F and 104°F).
 Ensure that the floor under the Unit is smooth, level and
capable of bearing the weight of the Compressor.
 If installed in a compressor room, ensure that the room is
adequately ventilated.
48”
[1220mm]
48”
[1220mm]
48”
[1220mm]
60”
[1524mm]
Fusible
Disconnect
Refer to
page 12 for
proper sizing
Unit
Nameplate
Model No.
Serial No.
Unit voltage
Installation Kit
IK4050
Flex-Hose &
Vibration Isolators
(sold separately)
Pre-Filter
Refer to
page 8 for
proper sizing
(sold
separately)
