The Compressor must not be operated in
a confined area where the heat from the
Unit cannot readily escape.
Installation – Mechanical (cont’d)

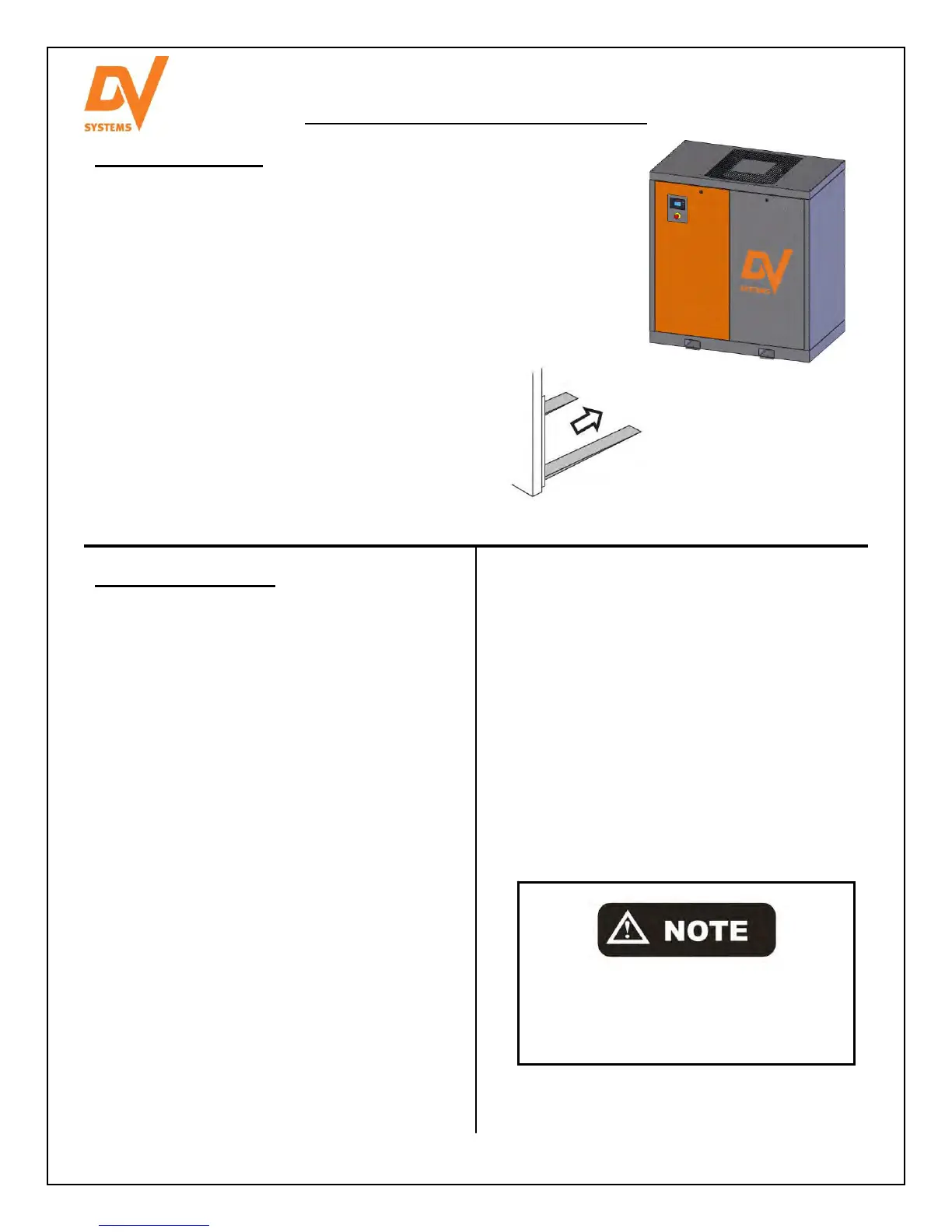

Moving of the Unit.
When moving the Air
Compressor, the forklift or hand
lift forks go under the Unit from
the directions as indicated.
Slots in the Unit Base are
provided for moving of the
Compressor.
Please be advised that care
must be taken when moving and
positioning the Units as they may
be top heavy.
Location of the Unit.
Items to consider when installing the Unit are as
follows:
 The Unit should be located in a dry, clean, cool,
dust free, and well ventilated area. If possible, the
Compressor should be located in a separate
room or area, away from the general operations
of the shop.
 Allow a minimum of 48” (1220mm) around and
60” (1524mm) above the Unit for easy access to
the various sides, this being for both the proper
ventilation of the Unit and ease of servicing.
 Ensure that the floor under the Unit is smooth,
level and capable of bearing the weight of the
Compressor. The Compressor must sit level on
the floor.
 If installed in a compressor room, ensure that the
room is adequately ventilated. (One Horsepower
produces approximately 2500 BTU/HR.) See
Page 10.
 The ambient temperature should be between
10°C to 40°C (50°F and 104°F).
 If installing the Unit on a mezzanine, ensure that
the structure can safely support the weight of the
Unit. As well, the sound level of the Unit may
increase due to the vibration transmitted through
the floor; use Vibration Pads to lessen this.
Many common Compressor problems can be
attributed to the location or installation of the Unit.
Make sure the Unit is in a suitable location, and
installed correctly.
